Name: Fuel Lines (3.0L DOHC GDI SC V6 PETROL, Petrol Tank With Leak Detection, Pet Tank With Leak Det - Lrg Filter)
Rating: 4.4 (1 reviews)

View All

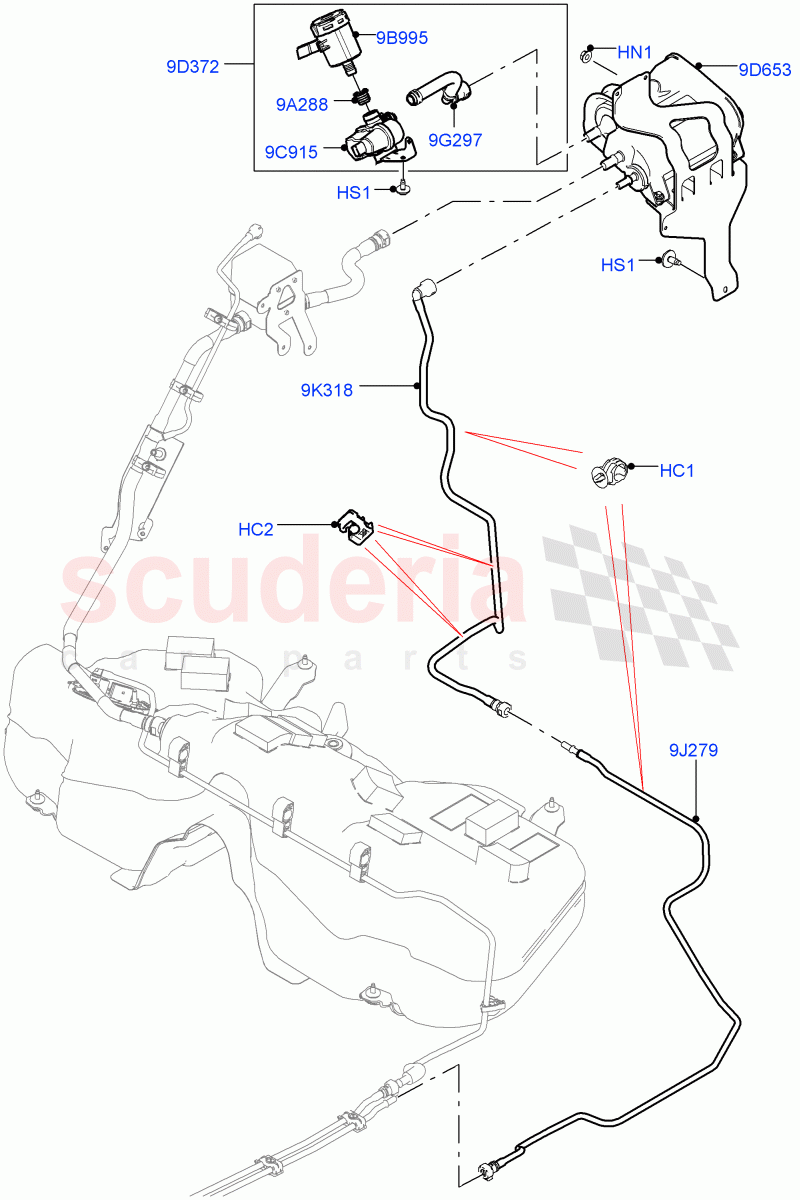

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR091651	CLIP - PIPE	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093728	CLIP - HOSE	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR003198	INSULATOR - CHARCOAL CANISTER	$7.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027066	FILTER - FUEL	$87.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	$187.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092387	HOSE - FUEL VAPOUR	$136.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092386	RESERVOIR - FUEL VAPOUR SYSTEM	$160.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104027	HOSE - RESERVOIR TO PUMP	$37.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092367	TUBE - FUEL VAPOUR	$60.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092388	TUBE - FUEL VAPOUR	$57.85	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR091651	CLIP - PIPE	LR091651 CLIP - PIPE	$2.53	10
HC2	LR093728	CLIP - HOSE	LR093728 CLIP - HOSE	$2.97	2
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	2
HS1	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM IN STOCK	$0.35	3
9A288	LR003198	INSULATOR - CHARCOAL CANISTER	LR003198 INSULATOR - CHARCOAL CANISTER From: JA000001	$7.47	1
9B995	LR027066	FILTER - FUEL	LR027066 FILTER - FUEL From: JA000001	$87.66	1
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL From: JA000001	$187.80	1
9D372	LR092387	HOSE - FUEL VAPOUR	LR092387 HOSE - FUEL VAPOUR	$136.39	1
9D653	LR092386	RESERVOIR - FUEL VAPOUR SYSTEM	LR092386 RESERVOIR - FUEL VAPOUR SYSTEM	$160.37	1
9G297	LR104027	HOSE - RESERVOIR TO PUMP	LR104027 HOSE - RESERVOIR TO PUMP	$37.14	1
9J279	LR092367	TUBE - FUEL VAPOUR	LR092367 TUBE - FUEL VAPOUR	$60.60	1
9K318	LR092388	TUBE - FUEL VAPOUR	LR092388 TUBE - FUEL VAPOUR	$57.85	1
