Fuel Lines (Front And Middle Section) (3.0L Dohc Gdi Sc V6 Petrol)

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Fuel Lines (Front And Middle Section) (3.0L DOHC GDI SC V6 PETROL)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093726 CLIP - PIPE $1.43 To Order
Photo Part No Description Price (each) Stock
FS105126 SCREW $0.55 To Order
Photo Part No Description Price (each) Stock
LR010749 VALVE - FUEL VAPOUR $166.29 To Order
LR172648 Valve - Fuel Vapour $173.01 To Order
Photo Part No Description Price (each) Stock
LR093064 SENSOR - FUEL PRESSURE/TEMPERATURE $129.38 To Order
Photo Part No Description Price (each) Stock
LR011563 BRACKET - FUEL VAPOUR VALVE $12.22 To Order
Photo Part No Description Price (each) Stock
LR093086 TUBE - FUEL SUPPLY AND VAPOUR $98.32 To Order
Photo Part No Description Price (each) Stock
LR048475 BRACKET - FUEL LINES $13.43 To Order
Photo Part No Description Price (each) Stock
LR093710 TUBE - FUEL SUPPLY $127.41 To Order
LR138910 TUBE - FUEL SUPPLY $127.41 To Order
LR146152 TUBE - FUEL SUPPLY $127.41 To Order
View All

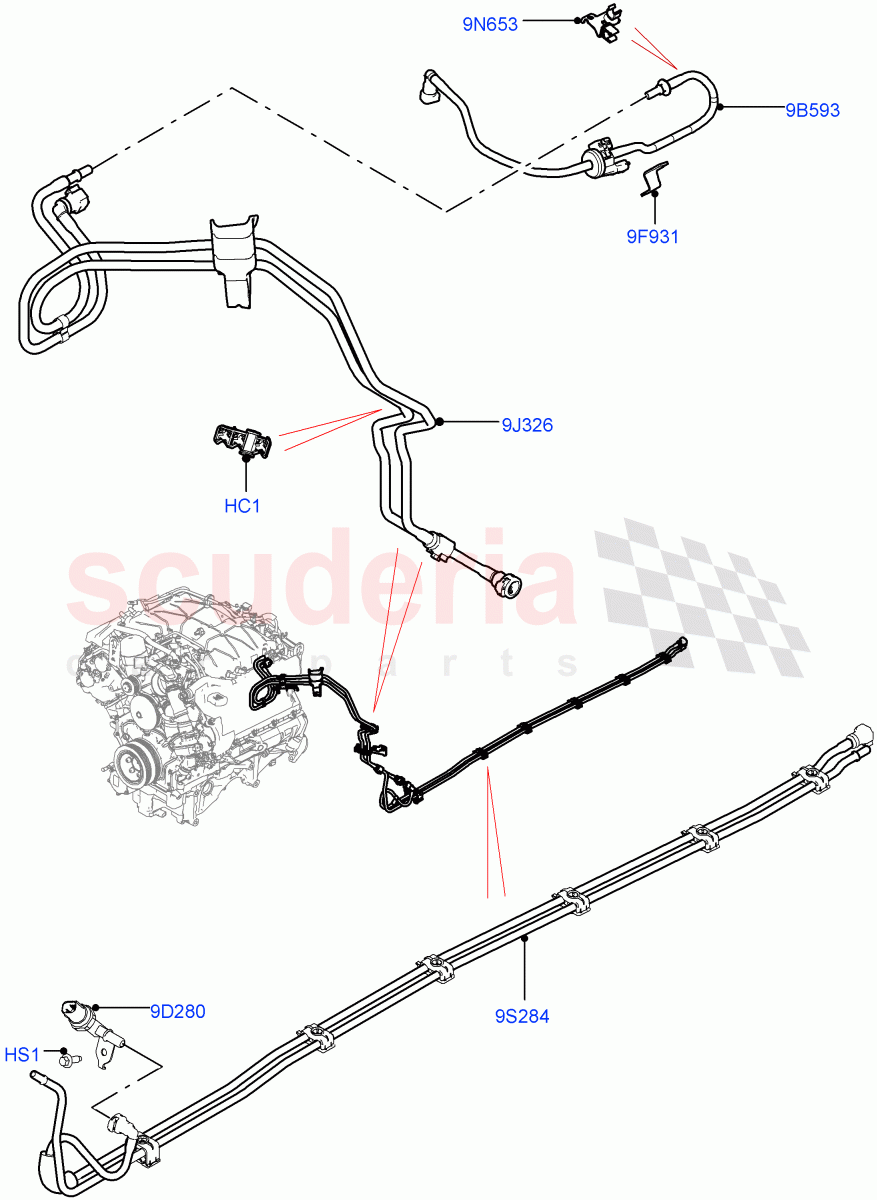

Fuel Lines (Front And Middle Section) (3.0L DOHC GDI SC V6 PETROL) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR093726
CLIP - PIPE 		$1.43 1
HS1 FS105126
SCREW
M5 X 12MM 		$0.55 1
9B593 LR010749
VALVE - FUEL VAPOUR
To: NA330383 		$166.29 1
9B593 LR172648
Valve - Fuel Vapour
From: NA330384 		$173.01 1
9D280 LR093064
SENSOR - FUEL PRESSURE/TEMPERATURE 		$129.38 1
9F931 LR011563
BRACKET - FUEL VAPOUR VALVE
Fuel Vapour Valve 		$12.22 1
9J326 LR093086
TUBE - FUEL SUPPLY AND VAPOUR 		$98.32 1
9N653 LR048475
BRACKET - FUEL LINES
Fuel Vapour Valve 		$13.43 1
9S284 LR093710
TUBE - FUEL SUPPLY
To: LA284317 		$127.41 1
9S284 LR138910
TUBE - FUEL SUPPLY
From: LA284318 / To: LA285189 		$127.41 1
9S284 LR146152
TUBE - FUEL SUPPLY
From: LA285190 		$127.41 1
