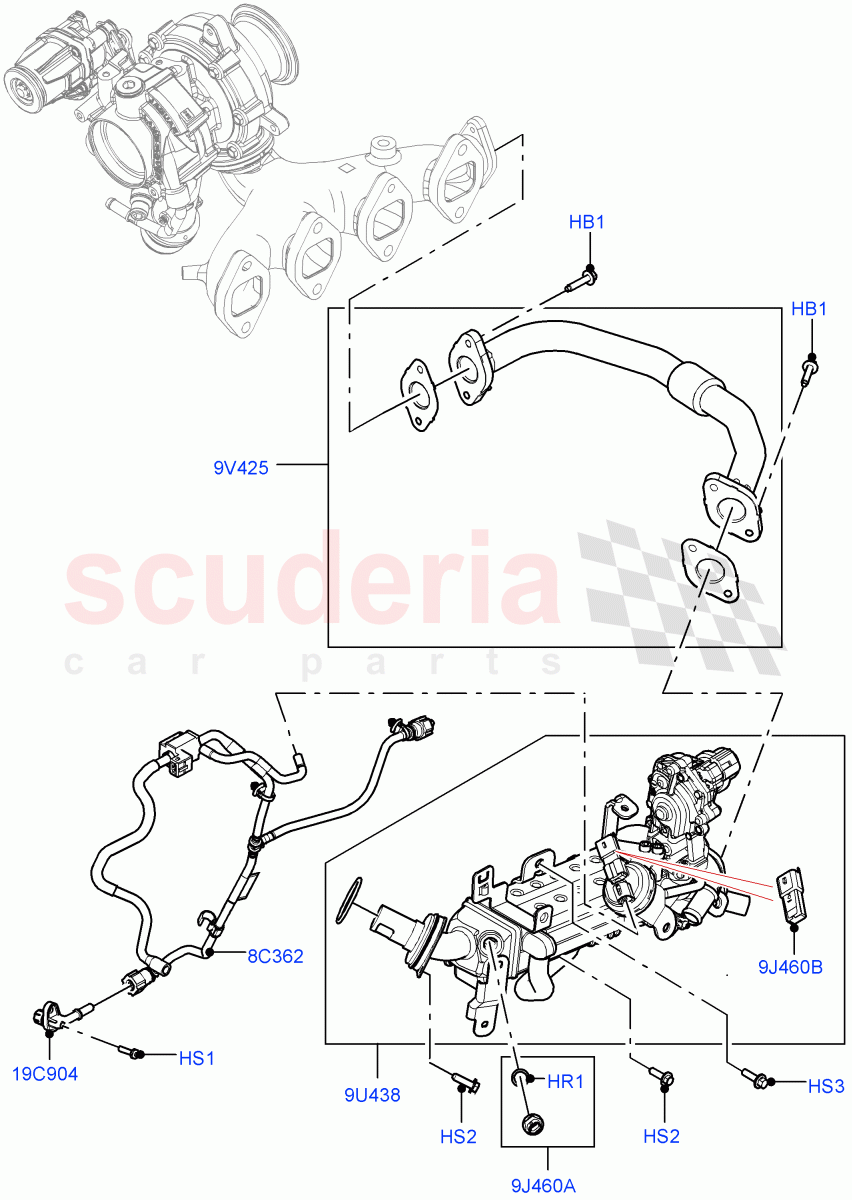

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141328	HOSE - VACUUM CONTROL HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141335	TUBE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148201	CONNECTOR - VACUUM TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162966	SENSOR	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR091557	BOLT	LR091557 BOLT Crossover, M6 X 25MM, Tube / From: MA000001	-	4	Enquire
HR1	LR095785	O-RING	LR095785 O-RING 11.3 x 2.5MM, Temperature Sensor / From: MA000001	-	1	Enquire
HS1	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: MA000001	-	1	Enquire
HS2	LR071774	SCREW	LR071774 SCREW EGR Unit, Hexagonal Head, Lower, M6 X 20MM / From: MA000001	-	4	Enquire
HS2	LR071774	SCREW	LR071774 SCREW EGR Tube, Hexagonal Head, M6 X 20MM / From: MA000001	-	1	Enquire
HS3	LR073655	SCREW	LR073655 SCREW EGR Unit, Hexagonal Head, M6 X 20MM, Upper / From: MA000001	-	1	Enquire
8C362	LR141328	HOSE - VACUUM CONTROL HARNESS	LR141328 HOSE - VACUUM CONTROL HARNESS Vacuum Control / From: MA000001	-	1	Enquire
9J460A	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: MA000001	-	1	Enquire
9J460B	LR162966	SENSOR	LR162966 SENSOR EGR Unit / From: MA000001	-	1	Enquire
9U438	LR141331	EGR UNIT	LR141331 EGR UNIT From: MA000001 / To: MA306621	-	1	Enquire
9U438	LR156784	EGR UNIT	LR156784 EGR UNIT From: MA306622 / To: MA314921	-	1	Enquire
9U438	LR159416	EGR UNIT	LR159416 EGR UNIT From: MA314922	-	1	Enquire
9V425	LR141335	TUBE - EXHAUST GAS RECIRCULATION	LR141335 TUBE - EXHAUST GAS RECIRCULATION Exhaust Manifold To EGR Cooler / From: MA000001	-	1	Enquire
19C904	LR148201	CONNECTOR - VACUUM TUBE	LR148201 CONNECTOR - VACUUM TUBE Cylinder Block / From: MA000001	-	1	Enquire
