Exhaust Fluid Injection System (Injector and Control Unit) (2.0L AJ21D4 Diesel Mid, With Diesel Exh Fluid Emission Tank) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Exhaust Fluid Injection System (Injector and Control Unit) (2.0L AJ21D4 Diesel Mid, With Diesel Exh...

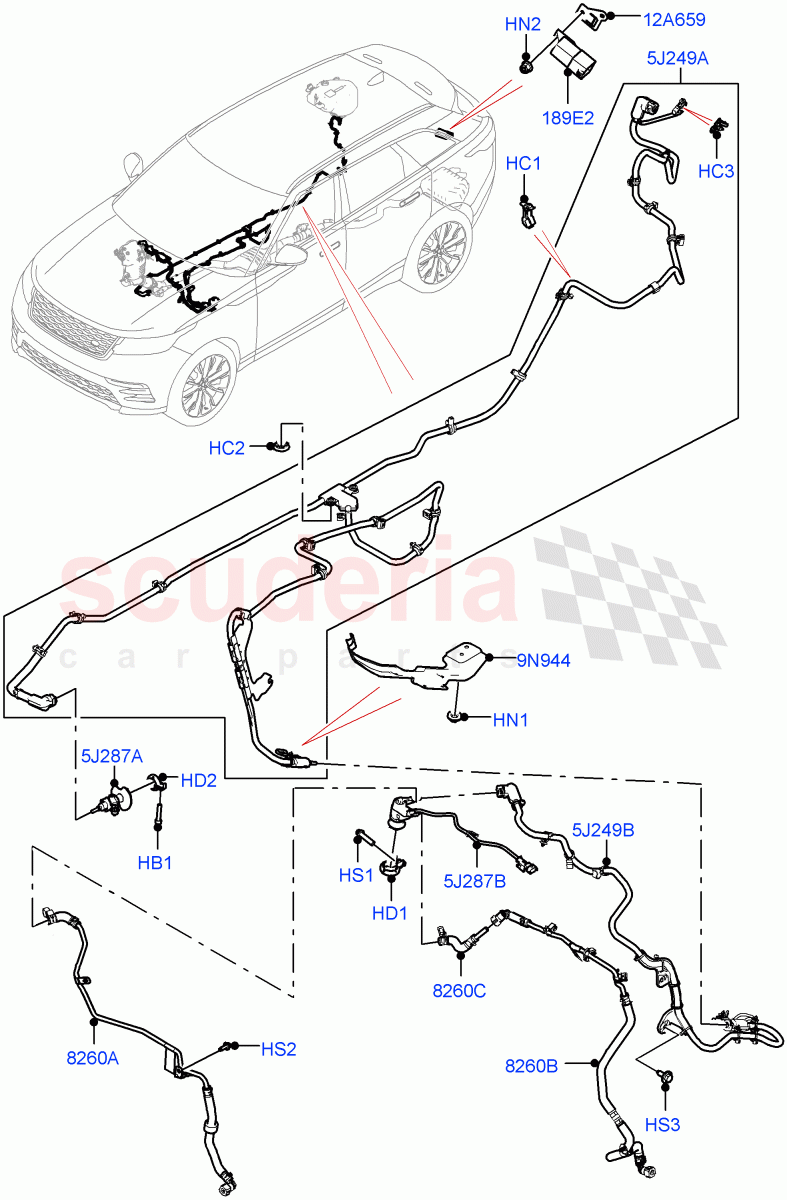

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR067041	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141230	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108386	CLIP - PUSH ON STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036382	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141100	CLAMP - TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067042	CLAMP - TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139637	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500400	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139668	CONTROL UNIT - AUXILIARY HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140905	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149849	HOSE - WATER	Enquire	To Order
	LR158186	HOSE - WATER	Enquire	To Order
	LR165171	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149839	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141248	BRACKET - TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139412	BRACKET - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141235	TUBE - DIESEL EXHAUST FLUID FEED	Enquire	To Order
	LR159951	TUBE - DIESEL EXHAUST FLUID FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141233	TUBE - DIESEL EXHAUST FLUID FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139640	INJECTOR - DIESEL EXHAUST FLUID	Enquire	To Order
	LR165903	INJECTOR - DIESEL EXHAUST FLUID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141483	INJECTOR - DIESEL EXHAUST FLUID	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR067041	SCREW	LR067041 SCREW Clamp, Lower, M5 x 25 / From: MA000001	-	1	Enquire
HC1	LR141230	CLIP	LR141230 CLIP To Body / From: MA000001	-	1	Enquire
HC2	LR108386	CLIP - PUSH ON STEEL	LR108386 CLIP - PUSH ON STEEL M6, Y-shape Connector / From: MA000001	-	2	Enquire
HC3	LR036382	CLIP	LR036382 CLIP 6.5 x 5MM, Wiring Connector / From: MA000001	-	1	Enquire
HD1	LR141100	CLAMP - TUBE	LR141100 CLAMP - TUBE Includes Screw, Injector, Upper / From: MA000001	-	1	Enquire
HD2	LR067042	CLAMP - TUBE	LR067042 CLAMP - TUBE Injector, Lower,	-	1	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer, Support Bracket / From: MA000001	-	2	Enquire
HN2	FY106046	NUT - HEX.	FY106046 NUT - HEX. Hexagonal Head, M6 / From: MA000001	-	1	Enquire
HS1	LR139637	SCREW	LR139637 SCREW Clamp, Upper / From: MA000001	-	1	Enquire
HS2	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, Hose, Injector Cooling Feed, M6 X 14MM / From: MA000001	-	2	Enquire
HS3	KYP500400	SCREW AND WASHER	KYP500400 SCREW AND WASHER Hexagonal Head, Hose, M6 X 16MM, To Transmission / From: MA000001	-	2	Enquire
5J249A	LR141235	TUBE - DIESEL EXHAUST FLUID FEED	LR141235 TUBE - DIESEL EXHAUST FLUID FEED Tank To Lower Injector / From: MA000001 / To: MA314921	-	1	Enquire
5J249A	LR159951	TUBE - DIESEL EXHAUST FLUID FEED	LR159951 TUBE - DIESEL EXHAUST FLUID FEED Tank To Lower Injector / From: MA314922	-	1	Enquire
5J249B	LR141233	TUBE - DIESEL EXHAUST FLUID FEED	LR141233 TUBE - DIESEL EXHAUST FLUID FEED To Upper Injector / From: MA000001	-	1	Enquire
5J287A	LR139640	INJECTOR - DIESEL EXHAUST FLUID	LR139640 INJECTOR - DIESEL EXHAUST FLUID Lower / From: MA000001 / To: MA326595	-	1	Enquire
5J287A	LR165903	INJECTOR - DIESEL EXHAUST FLUID	LR165903 INJECTOR - DIESEL EXHAUST FLUID Lower / From: MA326596	-	1	Enquire
5J287B	LR141483	INJECTOR - DIESEL EXHAUST FLUID	LR141483 INJECTOR - DIESEL EXHAUST FLUID Upper, Water Cooled / From: MA000001	-	1	Enquire
9N944	LR141248	BRACKET - TUBE	LR141248 BRACKET - TUBE Tube Support / From: MA000001	-	1	Enquire
12A659	LR139412	BRACKET - MODULE	LR139412 BRACKET - MODULE From: MA000001	-	1	Enquire
189E2	LR139668	CONTROL UNIT - AUXILIARY HEATER	LR139668 CONTROL UNIT - AUXILIARY HEATER Diesel Exhaust Fluid / From: MA000001	-	1	Enquire
8260A	LR140905	HOSE - WATER	LR140905 HOSE - WATER Injector Cooling Feed / From: MA000001	-	1	Enquire
8260B	LR149849	HOSE - WATER	LR149849 HOSE - WATER Injector Cooling Return / From: MA000001 / To: MA315690	-	1	Enquire
8260B	LR158186	HOSE - WATER	LR158186 HOSE - WATER Injector Cooling Return / From: MA315691 / To: MA325168	-	1	Enquire
8260B	LR165171	HOSE - WATER	LR165171 HOSE - WATER Injector Cooling Return / From: MA325169	-	1	Enquire
8260C	LR149839	HOSE - WATER	LR149839 HOSE - WATER Connector, Injector Cooling Return / From: MA000001	-	1	Enquire
