Name: Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ21D4 Diesel Mid, With Diesel Exh Fluid Emission Tank) ((V) FROMMA000001)
Rating: 4.5 (1 reviews)

Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ21D4 Diesel Mid, With Diesel Exh Fluid Emission Tank) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ21D4 Diesel Mid, With Diesel Exh Fluid...

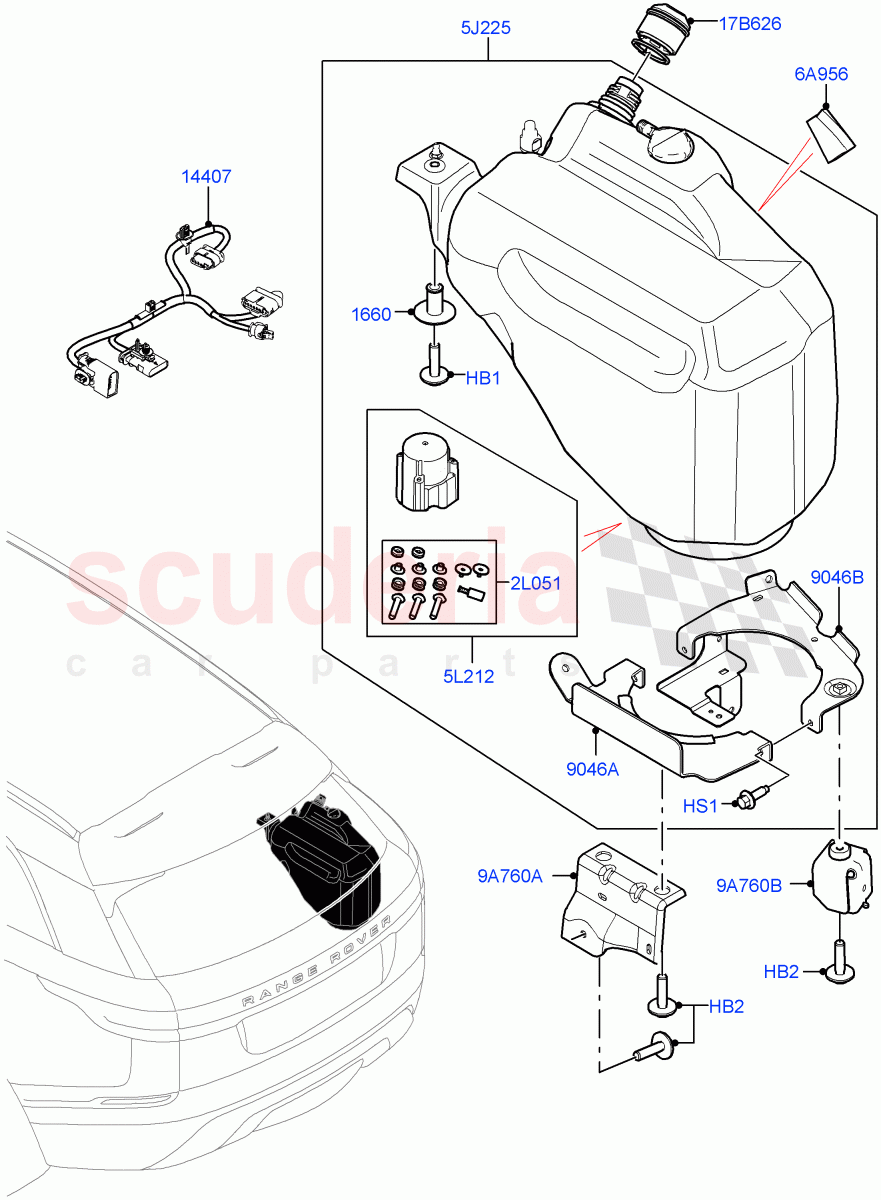

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR100643	BOLT	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	JYG500020	BOLT	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR091644	SPACER - TANK MOUNTING	$7.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146228	HARNESS - DIESEL EXHAUST FLUID SYS.	$40.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085287	KIT - FIXING PARTS	$45.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141197	TANK&SENDER - DIESEL EXHAUST FLUID	$651.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166698	PUMP - DIESEL EXHAUST FLUID	$451.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150014	Foam Pad - Energy Absorbing	$6.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092939	BRACKET - TANK	$29.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166699	Bracket - Fuel Tank	$28.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091655	CAP - FILLER	$10.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091683	BRACKET - FUEL TANK	$12.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091682	BRACKET - FUEL TANK	$16.05	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR100643	BOLT	LR100643 BOLT M6 x 50MM / From: MA000001	$2.27	1
HB2	JYG500020	BOLT	JYG500020 BOLT Bolt And Washer, Hexagonal Head, M6 x 25MM / From: MA000001	$1.36	5
HS1	RYG500190	SCREW IN STOCK	RYG500190 SCREW Hexagonal Head, M6 X 16MM / From: MA000001 IN STOCK	$0.70	2
2L051	LR085287	KIT - FIXING PARTS	LR085287 KIT - FIXING PARTS Diesel Exhaust Fluid Pump / From: MA000001	$45.18	1
5J225	LR141197	TANK&SENDER - DIESEL EXHAUST FLUID	LR141197 TANK&SENDER - DIESEL EXHAUST FLUID From: MA000001	$651.25	1
5L212	LR166698	PUMP - DIESEL EXHAUST FLUID	LR166698 PUMP - DIESEL EXHAUST FLUID Kit Includes Fitting Parts, Service Kit / From: MA000001	$451.38	1
6A956	LR150014	Foam Pad - Energy Absorbing	LR150014 Foam Pad - Energy Absorbing From: MA000001	$6.69	1
9A760A	LR091683	BRACKET - FUEL TANK	LR091683 BRACKET - FUEL TANK LH Lower / From: MA000001	$12.18	1
9A760B	LR091682	BRACKET - FUEL TANK	LR091682 BRACKET - FUEL TANK RH Lower / From: MA000001	$16.05	1
17B626	LR091655	CAP - FILLER	LR091655 CAP - FILLER From: MA000001	$10.94	1
1660	LR091644	SPACER - TANK MOUNTING	LR091644 SPACER - TANK MOUNTING From: MA000001	$7.75	1
9046A	LR092939	BRACKET - TANK	LR092939 BRACKET - TANK Inner / From: MA000001	$29.20	1
9046B	LR166699	Bracket - Fuel Tank	LR166699 Bracket - Fuel Tank Outer / From: MA000001	$28.89	1
14407	LR146228	HARNESS - DIESEL EXHAUST FLUID SYS.	LR146228 HARNESS - DIESEL EXHAUST FLUID SYS. From: MA000001	$40.71	1
