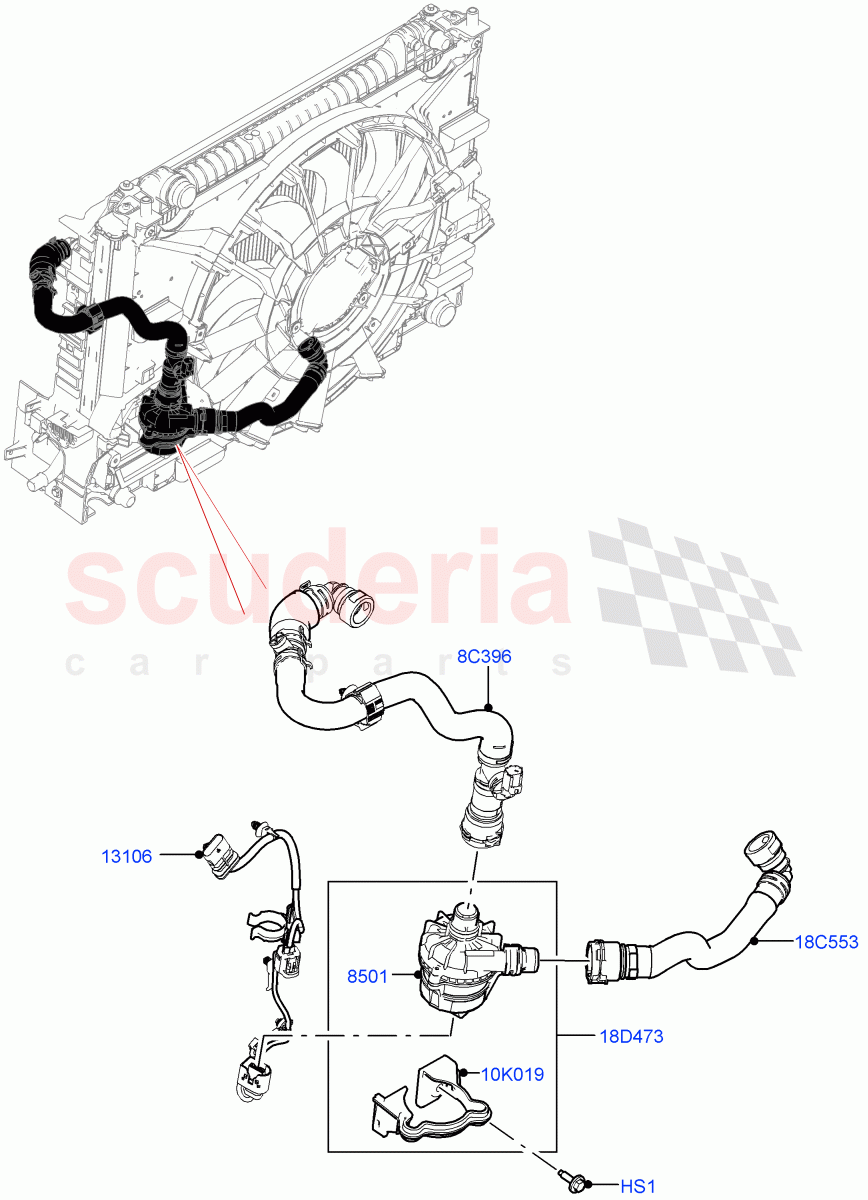

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146321	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144708	WIRING - WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140886	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146334	BRACKET - PUMP SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140877	HOSE - TURBOCHARGER TO INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141075	PUMP - WATER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM / From: MA000001	-	1	Enquire
8C396	LR140886	HOSE - WATER	LR140886 HOSE - WATER Return / From: MA000001	-	1	Enquire
10K019	LR146334	BRACKET - PUMP SUPPORT	LR146334 BRACKET - PUMP SUPPORT From: MA000001	-	1	Enquire
18C553	LR140877	HOSE - TURBOCHARGER TO INTERCOOLER	LR140877 HOSE - TURBOCHARGER TO INTERCOOLER From Water Pump To Intercooler / From: MA000001	-	1	Enquire
18D473	LR141075	PUMP - WATER	LR141075 PUMP - WATER With Bracket / From: MA000001	-	1	Enquire
8501	LR146321	PUMP - WATER	LR146321 PUMP - WATER From: MA000001	-	1	Enquire
13106	LR144708	WIRING - WATER PUMP	LR144708 WIRING - WATER PUMP From: MA000001	-	1	Enquire
