Radiator/Coolant Overflow Container (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Radiator/Coolant Overflow Container (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

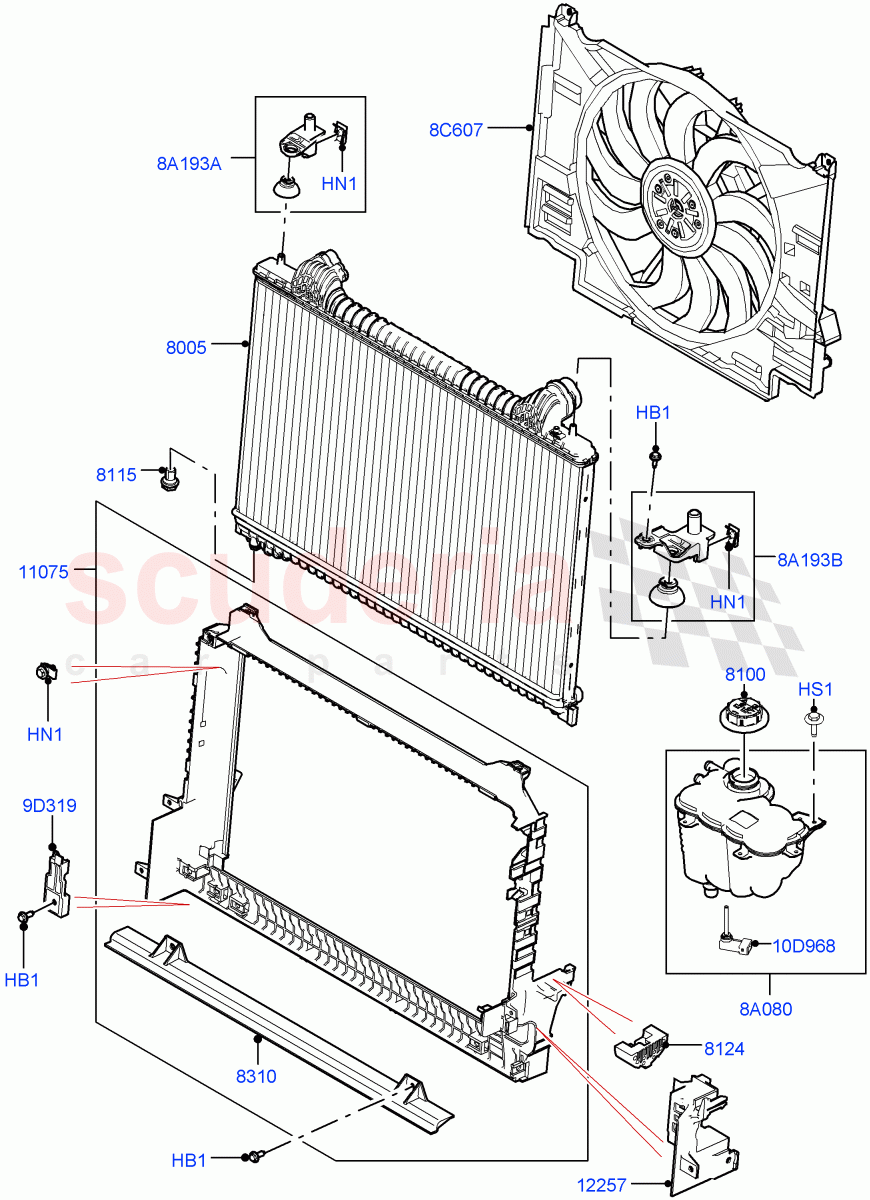

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR141748	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092461	RADIATOR - MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176860	CAP - OVERFLOW CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166141	PLUG - RADIATOR DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092467	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092462	DEFLECTOR - AIR - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141170	FRAME - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092456	BRACKET - CONDENSER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128194	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141330	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR141172	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130628	BRACKET - CONDENSER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128753	BRACKET - CONDENSER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128756	BRACKET - RADIATOR UPPER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR141748	BOLT	LR141748 BOLT M6 X 25MM, Radiator / From: MA000001	-	6	Enquire
HN1	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6 / From: MA000001	-	9	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Expansion Tank, Hexagonal Head, M6 X 20MM / From: MA000001	-	1	Enquire
8A080	LR128194	TANK - RADIATOR OVERFLOW	LR128194 TANK - RADIATOR OVERFLOW With Sensor / From: MA000001	-	1	Enquire
8A193A	LR128753	BRACKET - CONDENSER SUPPORT	LR128753 BRACKET - CONDENSER SUPPORT RH Upper / From: MA000001	-	1	Enquire
8A193B	LR128756	BRACKET - RADIATOR UPPER	LR128756 BRACKET - RADIATOR UPPER LH Upper / From: MA000001	-	1	Enquire
8C607	LR141330	MOTOR AND FAN - ENGINE COOLING	LR141330 MOTOR AND FAN - ENGINE COOLING Engine Cooling Fan 400W / From: MA000001	-	1	Enquire
8C607	LR141172	MOTOR AND FAN - ENGINE COOLING	LR141172 MOTOR AND FAN - ENGINE COOLING Engine Cooling Fan 650W / From: MA000001	-	1	Enquire
9D319	LR130628	BRACKET - CONDENSER SUPPORT	LR130628 BRACKET - CONDENSER SUPPORT RH, Lower / From: MA000001	-	1	Enquire
10D968	PCJ500030	SENSOR - COOLANT LEVEL	PCJ500030 SENSOR - COOLANT LEVEL From: MA000001	-	1	Enquire
8005	LR092461	RADIATOR - MAIN	LR092461 RADIATOR - MAIN From: MA000001	-	1	Enquire
8100	LR176860	CAP - OVERFLOW CONTAINER	LR176860 CAP - OVERFLOW CONTAINER From: MA000001	-	1	Enquire
8115	LR166141	PLUG - RADIATOR DRAIN	LR166141 PLUG - RADIATOR DRAIN From: MA000001	-	1	Enquire
8124	LR092467	INSULATOR - RADIATOR SUPPORT	LR092467 INSULATOR - RADIATOR SUPPORT RH And LH / From: MA000001	-	2	Enquire
8310	LR092462	DEFLECTOR - AIR - RADIATOR	LR092462 DEFLECTOR - AIR - RADIATOR Bottom / From: MA000001	-	1	Enquire
11075	LR141170	FRAME - RADIATOR SUPPORT	LR141170 FRAME - RADIATOR SUPPORT Main / From: MA000001	-	1	Enquire
12257	LR092456	BRACKET - CONDENSER SUPPORT	LR092456 BRACKET - CONDENSER SUPPORT LH, Lower / From: MA000001	-	1	Enquire
