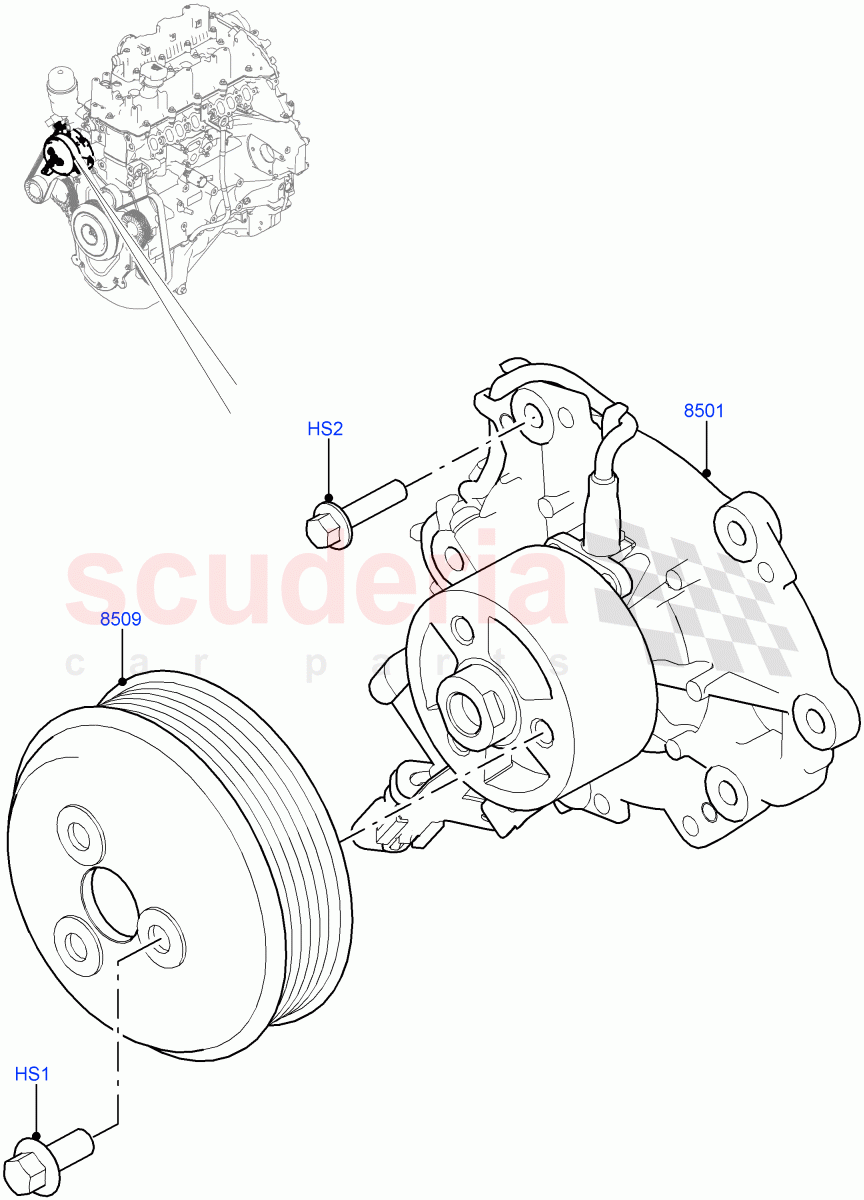

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108186	SCREW - SOCKET HEAD CAP	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139872	PUMP - WATER	$273.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115490	PULLEY - WATER PUMP	$66.53	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	FS108186	SCREW - SOCKET HEAD CAP	FS108186 SCREW - SOCKET HEAD CAP M8 x 18MM, Pump Pulley To Water Pump / From: MA000001	$2.16	3
HS2	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM, To Engine / From: MA000001	$1.28	6
8501	LR139872	PUMP - WATER	LR139872 PUMP - WATER From: MA000001	$273.29	1
8509	LR115490	PULLEY - WATER PUMP	LR115490 PULLEY - WATER PUMP From: MA000001	$66.53	1
