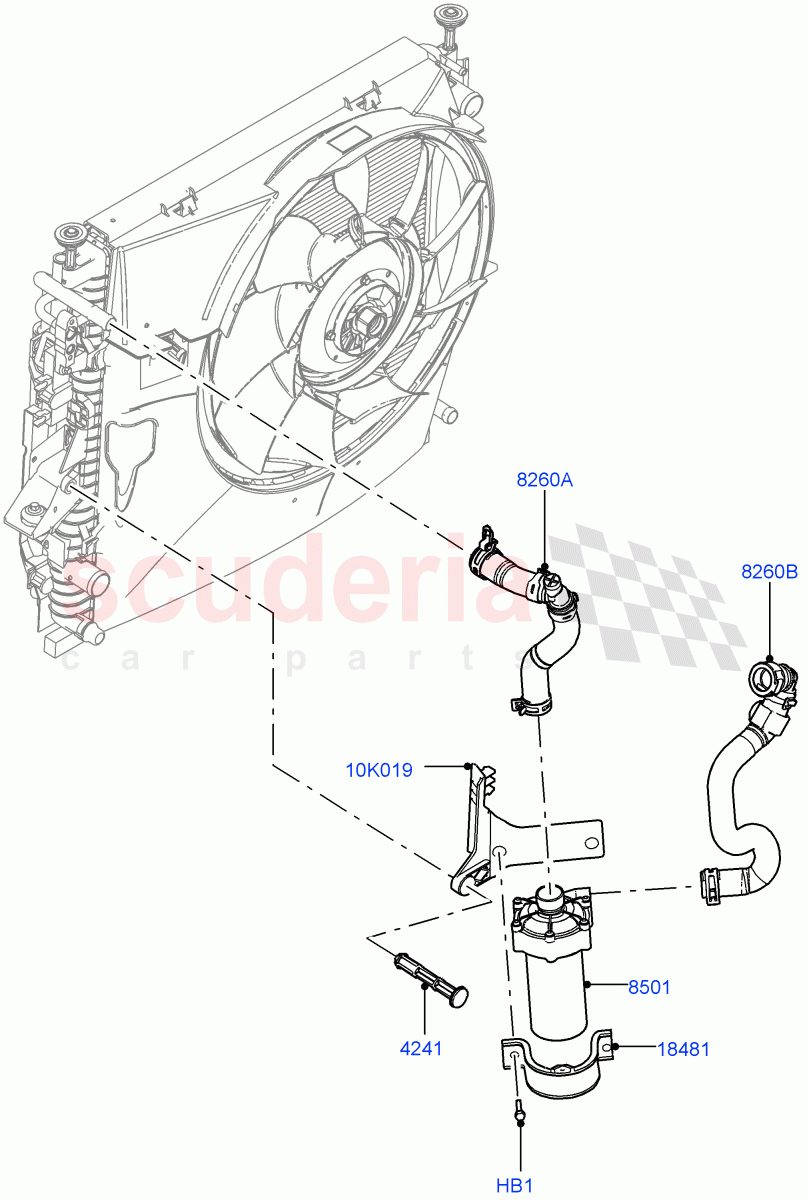

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR018706	SCREW	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019005	PIN	$5.01	To Order

Photo	Part No	Description	Price (each)	Stock
	PEB500010	PUMP - WATER	$285.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019004	CLAMP - WATER PUMP MOUNTING	$6.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016324	HOSE - RADIATOR	$43.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016320	HOSE - WATER	$41.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019006	BRACKET - PUMP SUPPORT	$19.19	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR018706	SCREW	LR018706 SCREW M6 x 12MM / From: AA000001	$1.00	2
10K019	LR019006	BRACKET - PUMP SUPPORT	LR019006 BRACKET - PUMP SUPPORT From: AA000001	$19.19	1
4241	LR019005	PIN	LR019005 PIN Water Pump / From: AA000001	$5.01	1
8260A	LR016324	HOSE - RADIATOR	LR016324 HOSE - RADIATOR Inlet, Water Pump / From: AA000001	$43.87	1
8260B	LR016320	HOSE - WATER	LR016320 HOSE - WATER Outlet, Water Pump / From: AA000001	$41.10	1
8501	PEB500010	PUMP - WATER	PEB500010 PUMP - WATER Auxiliary / From: AA000001	$285.06	1
18481	LR019004	CLAMP - WATER PUMP MOUNTING	LR019004 CLAMP - WATER PUMP MOUNTING Water Pump / From: AA000001	$6.70	1
