Name: Cooling System Pipes And Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 4.8 (1 reviews)

Cooling System Pipes And Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Cooling System Pipes And Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

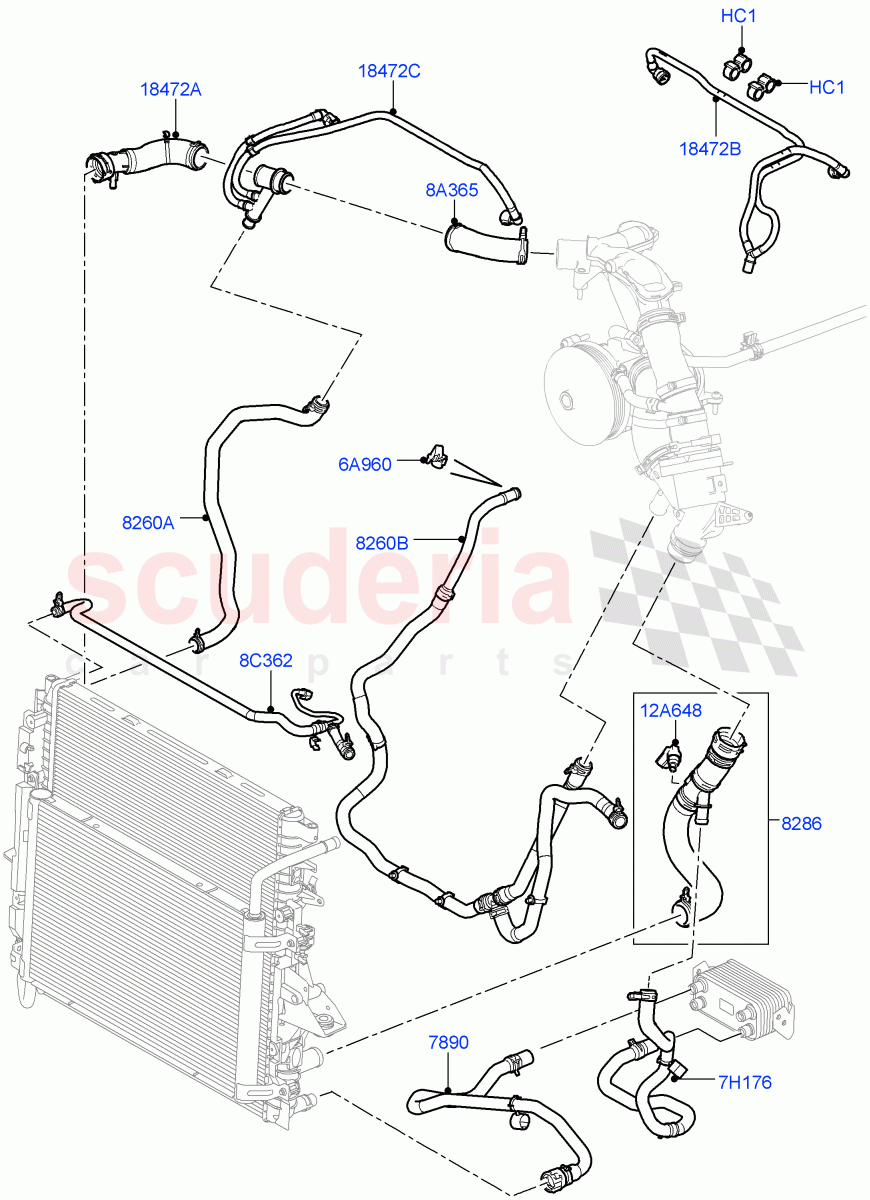

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR017360	CLIP	$2.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013723	HOSE - OIL COOLER	$84.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013684	HOSE - RADIATOR	$109.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014313	BRACKET - COOLING HOSE	$20.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013810	TUBE	$81.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018998	HOSE	$46.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013693	HOSE	$142.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018959	HOSE - OVERFLOW	$42.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014567	HOSE	$69.41	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	To Order
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$47.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018997	HOSE - WATER	$46.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019008	HOSE	$69.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019007	HOSE	$69.59	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR017360	CLIP	LR017360 CLIP Double, Upper / From: AA000001	$2.93	2
6A960	LR014313	BRACKET - COOLING HOSE	LR014313 BRACKET - COOLING HOSE RH, To Body, Upper / From: AA000001	$20.64	1
7H176	LR013810	TUBE	LR013810 TUBE Return, Transmission Cooler Line / From: AA000001	$81.46	1
8A365	LR018959	HOSE - OVERFLOW	LR018959 HOSE - OVERFLOW To Engine, Top, With Clamps / From: AA000001	$42.86	1
8C362	LR014567	HOSE	LR014567 HOSE Radiator To Expansion Tank Bleed, Top, With Clips / From: AA000001	$69.41	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: AA000001 / To: CA999999	$57.30	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: DA000001	$47.02	1
7890	LR013723	HOSE - OIL COOLER	LR013723 HOSE - OIL COOLER Feed, Transmission Cooler Line / From: AA000001	$84.35	1
8260A	LR018998	HOSE	LR018998 HOSE Auxiliary cooler, To Top Hose / From: AA000001	$46.26	1
8260B	LR013693	HOSE	LR013693 HOSE To Expansion Tank, To Heater Hoses, To Thermostat, With Clips / From: AA000001	$142.06	1
8286	LR013684	HOSE - RADIATOR	LR013684 HOSE - RADIATOR Attaches To Bottom Of Radiator, Radiator To Thermostat, With Sensor / From: AA000001	$109.88	1
18472A	LR018997	HOSE - WATER	LR018997 HOSE - WATER Engine To Radiator, Top / From: AA000001	$46.26	1
18472B	LR019008	HOSE	LR019008 HOSE Intercooler Inlet, Supply From Pump, With Auxiliary Coolant Pump / From: AA000001	$69.59	1
18472C	LR019007	HOSE	LR019007 HOSE Intercooler, Outlet, To Top Hose / From: AA000001	$69.59	1
