Radiator/Coolant Overflow Container (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Radiator/Coolant Overflow Container (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PYP500120 BOLT $0.77 IN STOCK
Photo Part No Description Price (each) Stock
PYP000221 SCREW AND WASHER $0.84 IN STOCK
Photo Part No Description Price (each) Stock
AB608068 Screw $0.45 To Order
LR020269 SCREW $2.71 To Order
Photo Part No Description Price (each) Stock
KGX500020 SPACER $8.85 To Order
LR015830 SPACER $3.69 To Order
Photo Part No Description Price (each) Stock
LR176861 CAP - OVERFLOW CONTAINER $16.40 To Order
Photo Part No Description Price (each) Stock
PCG500090 GROMMET $7.21 To Order
Photo Part No Description Price (each) Stock
LR015560 RADIATOR $622.75 To Order
Photo Part No Description Price (each) Stock
LR017428 RADIATOR $493.91 IN STOCK
Photo Part No Description Price (each) Stock
PCU500091 BRACKET $7.71 IN STOCK
Photo Part No Description Price (each) Stock
LR016624 BRACKET $6.02 To Order
Photo Part No Description Price (each) Stock
PCG500120 INSULATOR - RADIATOR SUPPORT $4.27 IN STOCK
Photo Part No Description Price (each) Stock
PDI500012 INSULATOR - RADIATOR MOUNTING $2.70 IN STOCK
Photo Part No Description Price (each) Stock
LR016208 SHROUD - RADIATOR FAN $75.98 To Order
Photo Part No Description Price (each) Stock
LR016210 SHROUD - RADIATOR FAN $113.71 To Order
LR026018 SHROUD - RADIATOR FAN $113.71 To Order
LR030053 SHROUD - RADIATOR FAN $105.01 To Order
Photo Part No Description Price (each) Stock
LR013663 TANK - RADIATOR OVERFLOW $70.55 To Order
LR020367 TANK - RADIATOR OVERFLOW $135.30 IN STOCK
Photo Part No Description Price (each) Stock
LR016216 FOAM - SEALING $8.05 To Order
LR028946 FOAM - SEALING $9.14 IN STOCK
Photo Part No Description Price (each) Stock
LR007315 SEAL $2.16 IN STOCK
Photo Part No Description Price (each) Stock
PDG500045 PIN $1.49 IN STOCK
Photo Part No Description Price (each) Stock
LR012644 FAN AND MOTOR $795.22 To Order
Photo Part No Description Price (each) Stock
LR007314 VALVE - BLEEDER SCREW $4.58 To Order
LR055301 VALVE - BLEEDER SCREW $8.64 IN STOCK
Photo Part No Description Price (each) Stock
PCJ500030 SENSOR - COOLANT LEVEL $23.95 IN STOCK
Photo Part No Description Price (each) Stock
LR021825 SEAL $15.98 To Order
Photo Part No Description Price (each) Stock
LR016215 SEAL $23.47 To Order
View All

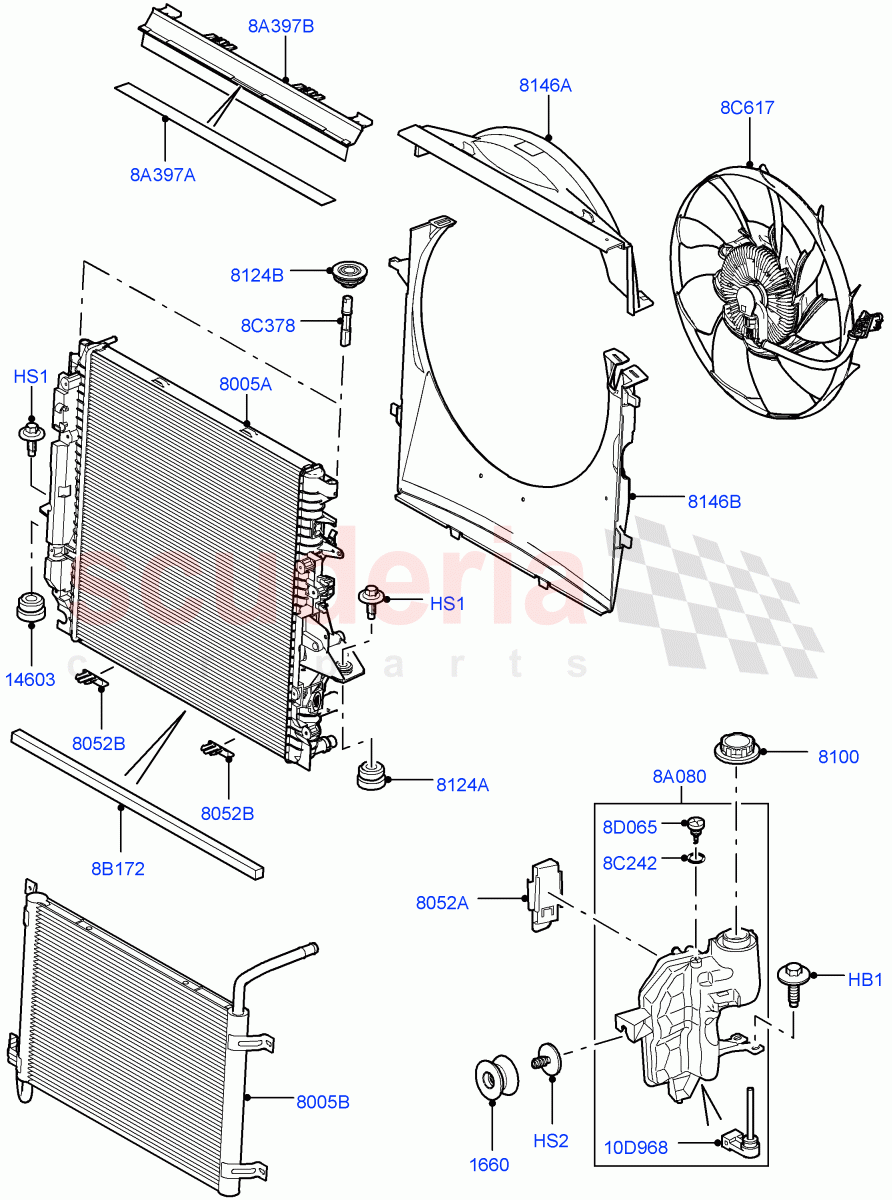

Radiator/Coolant Overflow Container (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 PYP500120
BOLT
M6 X 20MM / From: AA000001
IN STOCK 		$0.77 2
HS1 PYP000221
SCREW AND WASHER
M8 X 25MM / From: AA000001
IN STOCK 		$0.84 2
HS2 AB608068
Screw
4.2 X 19MM / From: AA000001 / To: AA228275 		$0.45 1
HS2 LR020269
SCREW
4.2 X 19MM / From: AA228276 		$2.71 1
8A080 LR013663
TANK - RADIATOR OVERFLOW
With Sensor / From: AA000001 / To: AA223999 		$70.55 1
8A080 LR020367
TANK - RADIATOR OVERFLOW
From: AA224000
IN STOCK 		$135.30 1
8A397A LR021825
SEAL
Upper / From: AA000001 		$15.98 1
8A397B LR016215
SEAL
Upper / From: AA000001 		$23.47 1
8B172 LR016216
FOAM - SEALING
Lower / From: AA000001 / To: BA282317 		$8.05 1
8B172 LR028946
FOAM - SEALING
Lower / From: BA282318
IN STOCK 		$9.14 1
8C242 LR007315
SEAL
Bleeder Screw / From: AA000001
IN STOCK 		$2.16 1
8C378 PDG500045
PIN
Top / From: AA000001
IN STOCK 		$1.49 2
8C617 LR012644
FAN AND MOTOR
From: AA000001 		$795.22 1
8D065 LR007314
VALVE - BLEEDER SCREW
Bleeder Screw / From: AA000001 / To: AA235920 		$4.58 1
8D065 LR055301
VALVE - BLEEDER SCREW
Bleeder Screw / From: AA235921
IN STOCK 		$8.64 1
10D968 PCJ500030
SENSOR - COOLANT LEVEL
Expansion Reservoir Overflow / From: AA000001
IN STOCK 		$23.95 1
1660 KGX500020
SPACER
From: AA000001 / To: AA225783 		$8.85 1
1660 LR015830
SPACER
From: AA225784 		$3.69 1
8005A LR015560
RADIATOR
From: AA000001 		$622.75 1
8005B LR017428
RADIATOR
Auxiliary, Front / From: AA000001
IN STOCK 		$493.91 1
8052A PCU500091
BRACKET
Expansion Reservoir Overflow / From: AA000001
IN STOCK 		$7.71 1
8052B LR016624
BRACKET
Bottom / From: AA000001 		$6.02 1
8100 LR176861
CAP - OVERFLOW CONTAINER
From: AA000001 		$16.40 1
8124A PCG500120
INSULATOR - RADIATOR SUPPORT
LH, Lower, Round / From: AA000001
IN STOCK 		$4.27 1
8124B PDI500012
INSULATOR - RADIATOR MOUNTING
Radiator Mounting, Top / From: AA000001
IN STOCK 		$2.70 2
8146A LR016208
SHROUD - RADIATOR FAN
Upper / From: AA000001 		$75.98 1
8146B LR016210
SHROUD - RADIATOR FAN
Lower / From: AA000001 / To: BA263454 		$113.71 1
8146B LR026018
SHROUD - RADIATOR FAN
Lower / From: BA263455 / To: BA291899 		$113.71 1
8146B LR030053
SHROUD - RADIATOR FAN
Lower / From: BA291900 		$105.01 1
14603 PCG500090
GROMMET
RH, Lower, Round / From: AA000001 		$7.21 1
