Rear Door Trim Installation ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

View All

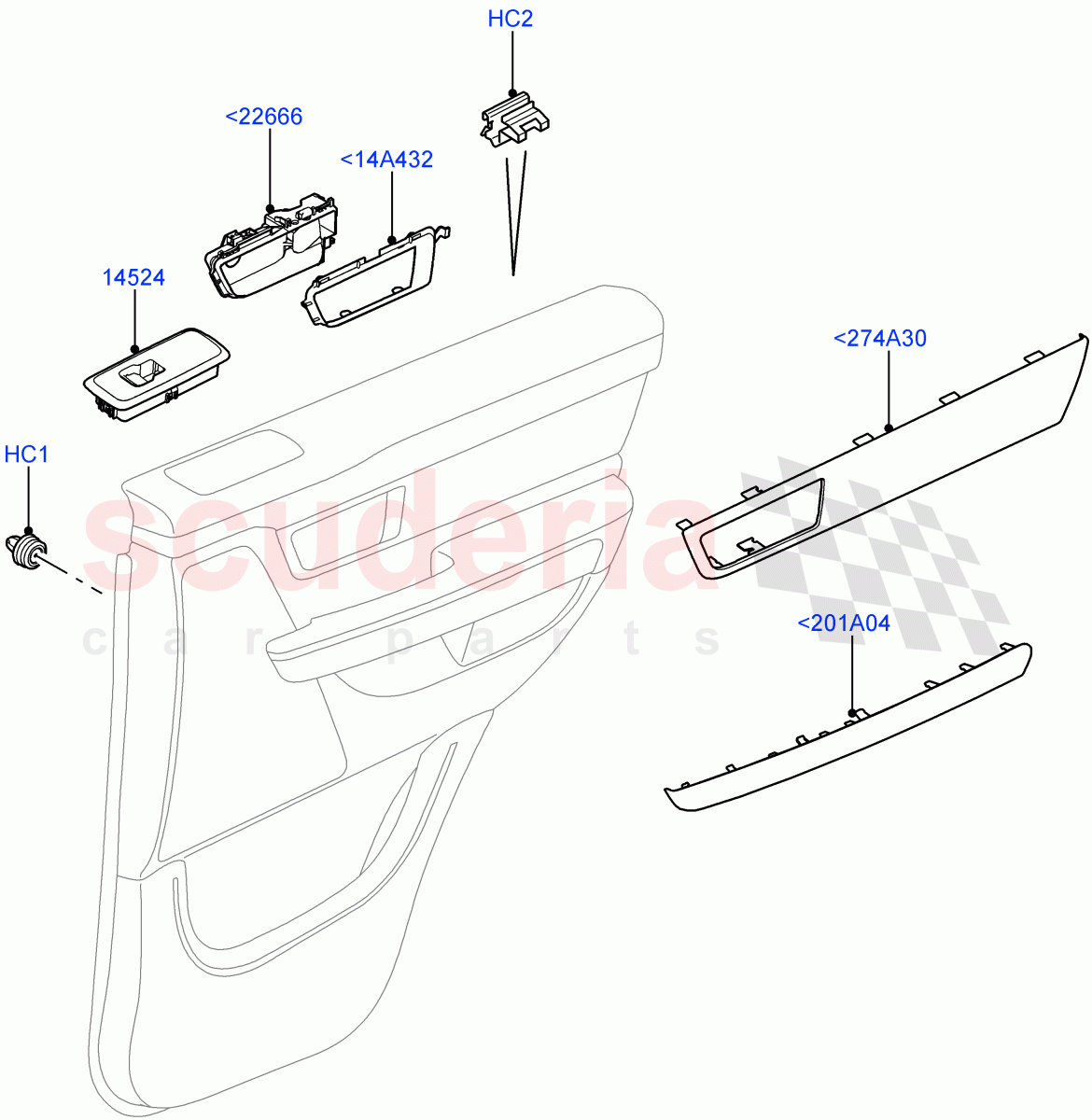

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Rear Door Trim Installation ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYC106670	CLIP - DOOR CLADDING	Enquire	To Order
	LR031948	CLIP - DOOR CLADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013517	BEZEL - DOOR SWITCH	Enquire	To Order
	LR014128	BEZEL - DOOR SWITCH	Enquire	To Order
	LR013517	BEZEL - DOOR SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013919	HANDLE - DOOR - INNER	Enquire	To Order
	LR013922	HANDLE - DOOR - INNER	Enquire	To Order
	LR020245	HANDLE - DOOR - INNER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR014649	BEZEL - DOOR INSIDE HANDLE	Enquire	To Order
	LR020479	BEZEL - DOOR INSIDE HANDLE	Enquire	To Order
	LR014650	BEZEL - DOOR INSIDE HANDLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR014935	ESCUTCHEON - DOOR INSIDE HANDLE	Enquire	To Order
	LR014938	ESCUTCHEON - DOOR INSIDE HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014651	PANEL - DOOR TRIM - UPPER	Enquire	To Order
	LR014652	PANEL - DOOR TRIM - UPPER	Enquire	To Order
	LR014653	PANEL - DOOR TRIM - UPPER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<14A432	LR014649	BEZEL - DOOR INSIDE HANDLE	LR014649 BEZEL - DOOR INSIDE HANDLE RH, Noble / From: AA000001 / To: AA224293	-	1	Enquire
<14A432	LR020479	BEZEL - DOOR INSIDE HANDLE	LR020479 BEZEL - DOOR INSIDE HANDLE RH / From: AA224294	-	1	Enquire
<14A432	LR014650	BEZEL - DOOR INSIDE HANDLE	LR014650 BEZEL - DOOR INSIDE HANDLE LH, Noble / From: AA000001 / To: AA224293	-	1	Enquire
<14A432	LR020480	BEZEL - DOOR INSIDE HANDLE	LR020480 BEZEL - DOOR INSIDE HANDLE LH / From: AA224294	-	1	Enquire
<201A04	LR014935	ESCUTCHEON - DOOR INSIDE HANDLE	LR014935 ESCUTCHEON - DOOR INSIDE HANDLE RH, Noble / From: AA000001	-	1	Enquire
<201A04	LR014938	ESCUTCHEON - DOOR INSIDE HANDLE	LR014938 ESCUTCHEON - DOOR INSIDE HANDLE LH, Noble / From: AA000001	-	1	Enquire
<274A30	LR014651	PANEL - DOOR TRIM - UPPER	LR014651 PANEL - DOOR TRIM - UPPER Interior Satin Blk Wlnt Veneer / RH / From: AA000001	-	1	Enquire
<274A30	LR014652	PANEL - DOOR TRIM - UPPER	LR014652 PANEL - DOOR TRIM - UPPER Interior Dark Brown Anigre Pack / RH / From: AA000001	-	1	Enquire
<274A30	LR014653	PANEL - DOOR TRIM - UPPER	LR014653 PANEL - DOOR TRIM - UPPER Interior Piano Black Veneer / RH / From: AA000001	-	1	Enquire
<274A30	LR014654	PANEL - DOOR TRIM - UPPER	LR014654 PANEL - DOOR TRIM - UPPER Interior Satin Blk Wlnt Veneer / LH / From: AA000001	-	1	Enquire
<274A30	LR014655	PANEL - DOOR TRIM - UPPER	LR014655 PANEL - DOOR TRIM - UPPER Interior Dark Brown Anigre Pack / LH / From: AA000001	-	1	Enquire
<274A30	LR014656	PANEL - DOOR TRIM - UPPER	LR014656 PANEL - DOOR TRIM - UPPER Interior Piano Black Veneer / LH / From: AA000001	-	1	Enquire
<274A30	LR021014	PANEL - DOOR TRIM - UPPER	LR021014 PANEL - DOOR TRIM - UPPER Interior Ebony Pack / RH / From: BA000001	-	1	Enquire
<274A30	LR021015	PANEL - DOOR TRIM - UPPER	LR021015 PANEL - DOOR TRIM - UPPER Interior Ebony Pack / LH / From: BA000001	-	1	Enquire
<22666	LR013919	HANDLE - DOOR - INNER	LR013919 HANDLE - DOOR - INNER RH / From: AA000001 / To: AA223377	-	1	Enquire
<22666	LR013922	HANDLE - DOOR - INNER	LR013922 HANDLE - DOOR - INNER LH / From: AA000001 / To: AA223377	-	1	Enquire
<22666	LR020245	HANDLE - DOOR - INNER	LR020245 HANDLE - DOOR - INNER RH / From: AA223378	-	1	Enquire
<22666	LR020247	HANDLE - DOOR - INNER	LR020247 HANDLE - DOOR - INNER LH / From: AA223378	-	1	Enquire
HC1	LR013135	CLIP - TRIM	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2, Retainer / From: AA000001	-	16	Enquire
HC2	EYC106670	CLIP - DOOR CLADDING	EYC106670 CLIP - DOOR CLADDING Door Cladding / From: AA000001 / To: BA705593	-	8	Enquire
HC2	LR031948	CLIP - DOOR CLADDING	LR031948 CLIP - DOOR CLADDING Door Cladding / From: BA705594	-	2	Enquire
14524	LR013517	BEZEL - DOOR SWITCH	LR013517 BEZEL - DOOR SWITCH Less Headphones/Sockets - Rear / Black / From: AA000001 / To: BA999999	-	2	Enquire
14524	LR014128	BEZEL - DOOR SWITCH	LR014128 BEZEL - DOOR SWITCH Headphone Sockets - Less Headphones / Black / From: AA000001 / To: BA999999	-	2	Enquire
14524	LR013517	BEZEL - DOOR SWITCH	LR013517 BEZEL - DOOR SWITCH Black / From: CA000001	-	2	Enquire
