Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Glove Box ((V) FROMAA000001)

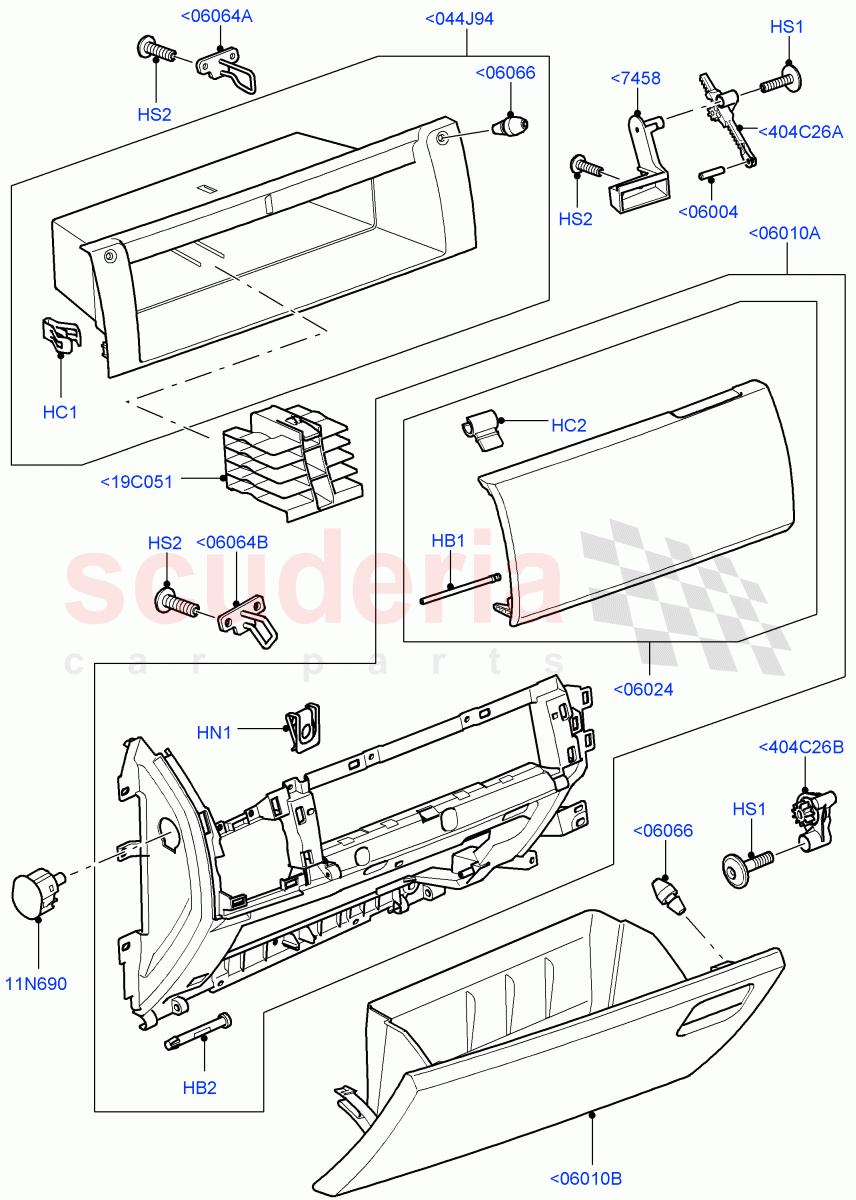

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FFY500012	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFY500020	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYC500040	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFI500010PMA	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYH500190	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500380	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFF500040	COMPARTMENT - STOWAGE	Enquire	To Order
	FFF500050	COMPARTMENT - STOWAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYT500012	LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014988	DOOR - GLOVE COMPARTMENT	Enquire	To Order
	LR014989	DOOR - GLOVE COMPARTMENT	Enquire	To Order
	LR014990	DOOR - GLOVE COMPARTMENT	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR020472	BUMP STOP - GLOVE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FBV500070PVJ	COVER - SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019112	HOUSING - GLOVE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014975	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order
	LR015304	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order
	LR014976	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order

...and 21 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013453	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order
	LR016456	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order
	LR013454	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FND500050PMA	STRIKER - GLOVE COMPARTMENT DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FND500012PMA	STRIKER - GLOVE COMPARTMENT DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFB500420PVJ	BOX - COMPACT DISC STORAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFZ500100	DAMPER - GLOVE BOX DOOR	Enquire	To Order
	FFZ500110	DAMPER - GLOVE BOX DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFZ500080	DAMPER - GLOVE BOX DOOR	Enquire	To Order
	FFZ500090	DAMPER - GLOVE BOX DOOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<19C051	FFB500420PVJ	BOX - COMPACT DISC STORAGE	FFB500420PVJ BOX - COMPACT DISC STORAGE From: AA000001 / To: AA253872	-	1	Enquire
<044J94	LR019112	HOUSING - GLOVE COMPARTMENT	LR019112 HOUSING - GLOVE COMPARTMENT Stowage Box, Upper / From: AA000001	-	1	Enquire
<404C26A	FFZ500100	DAMPER - GLOVE BOX DOOR	FFZ500100 DAMPER - GLOVE BOX DOOR LHD / Upper / From: AA000001	-	1	Enquire
<404C26A	FFZ500110	DAMPER - GLOVE BOX DOOR	FFZ500110 DAMPER - GLOVE BOX DOOR RHD / Upper / From: AA000001	-	1	Enquire
<404C26B	FFZ500080	DAMPER - GLOVE BOX DOOR	FFZ500080 DAMPER - GLOVE BOX DOOR LHD / Lower / From: AA000001	-	1	Enquire
<404C26B	FFZ500090	DAMPER - GLOVE BOX DOOR	FFZ500090 DAMPER - GLOVE BOX DOOR RHD / Lower / From: AA000001	-	1	Enquire
<7458	FFF500040	COMPARTMENT - STOWAGE	FFF500040 COMPARTMENT - STOWAGE LHD / Mounting Bracket / From: AA000001	-	1	Enquire
<7458	FFF500050	COMPARTMENT - STOWAGE	FFF500050 COMPARTMENT - STOWAGE RHD / Mounting Bracket / From: AA000001	-	1	Enquire
<06004	FYT500012	LATCH	FYT500012 LATCH Damper, Push Pin / From: AA000001	-	1	Enquire
<06010A	LR014975	COMPARTMENT - GLOVE - CO-DRIVER	LR014975 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, LHD / Ebony Black, Upper / From: AA000001 / To: AA235974	-	1	Enquire
<06010A	LR015304	COMPARTMENT - GLOVE - CO-DRIVER	LR015304 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony/Ivory, LHD / Ivory, Upper / From: AA000001 / To: AA235974	-	1	Enquire
<06010A	LR014976	COMPARTMENT - GLOVE - CO-DRIVER	LR014976 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, LHD / Almond, Upper / From: AA000001 / To: AA235974	-	1	Enquire
<06010A	LR014978	COMPARTMENT - GLOVE - CO-DRIVER	LR014978 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, RHD / Ebony Black, Upper / From: AA000001 / To: AA235974	-	1	Enquire
<06010A	LR014980	COMPARTMENT - GLOVE - CO-DRIVER	LR014980 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony/Ivory, RHD / Ivory, Upper / From: AA000001 / To: AA235974	-	1	Enquire
<06010A	LR014981	COMPARTMENT - GLOVE - CO-DRIVER	LR014981 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Cntr-Ebony Black/Almond, RHD / Almond, Upper / From: AA000001 / To: AA235974	-	1	Enquire
<06010A	LR021489	COMPARTMENT - GLOVE - CO-DRIVER	LR021489 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, LHD / Upper / From: AA235975 / To: DA787842	-	1	Enquire
<06010A	LR021490	COMPARTMENT - GLOVE - CO-DRIVER	LR021490 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony/Ivory, LHD / Upper / From: AA235975 / To: DA787842	-	1	Enquire
<06010A	LR021491	COMPARTMENT - GLOVE - CO-DRIVER	LR021491 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, LHD / Upper / From: AA235975 / To: DA787842	-	1	Enquire
<06010A	LR021492	COMPARTMENT - GLOVE - CO-DRIVER	LR021492 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony/Tan, RHD / Upper / From: AA235975 / To: DA787845	-	1	Enquire
<06010A	LR021493	COMPARTMENT - GLOVE - CO-DRIVER	LR021493 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ocean/Ivory, RHD / Upper / From: AA235975 / To: DA787845	-	1	Enquire
<06010A	LR021494	COMPARTMENT - GLOVE - CO-DRIVER	LR021494 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, RHD / Upper / From: AA235975 / To: DA787845	-	1	Enquire
<06010A	LR041020	COMPARTMENT - GLOVE - CO-DRIVER	LR041020 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, LHD / Upper / From: DA787843 / To: DA792910	-	1	Enquire
<06010A	LR041021	Compartment - Glove - Co-Driver	LR041021 Compartment - Glove - Co-Driver I/P Facia Contrast - Ebony/Ivory, LHD / Upper / From: DA787843 / To: DA792910	-	1	Enquire
<06010A	LR041022	Compartment - Glove - Co-Driver	LR041022 Compartment - Glove - Co-Driver I/P Facia Contrast-Arabica/Almond, LHD / Upper / From: DA787843 / To: DA792910	-	1	Enquire
<06010A	LR041029	Compartment - Glove - Co-Driver	LR041029 Compartment - Glove - Co-Driver I/P Facia Contrast - Ebony/Tan, RHD / Upper / From: DA787846 / To: DA792910	-	1	Enquire
<06010A	LR041032	Compartment - Glove - Co-Driver	LR041032 Compartment - Glove - Co-Driver I/P Facia Contrast - Ebony/Ivory, RHD / Upper / From: DA787846 / To: DA792910	-	1	Enquire
<06010A	LR041033	Compartment - Glove - Co-Driver	LR041033 Compartment - Glove - Co-Driver I/P Facia Contrast-Arabica/Almond, RHD / Upper / From: DA787846 / To: DA792910	-	1	Enquire
<06010A	LR044326	COMPARTMENT - GLOVE - CO-DRIVER	LR044326 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony/Tan, LHD / Upper / From: DA792911	-	1	Enquire
<06010A	LR044327	COMPARTMENT - GLOVE - CO-DRIVER	LR044327 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony/Ivory, LHD / From: DA792911	-	1	Enquire
<06010A	LR044328	COMPARTMENT - GLOVE - CO-DRIVER	LR044328 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, LHD / Upper / From: DA792911	-	1	Enquire
<06010A	LR044329	COMPARTMENT - GLOVE - CO-DRIVER	LR044329 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony/Tan, RHD / Upper / From: DA792911	-	1	Enquire
<06010A	LR044330	COMPARTMENT - GLOVE - CO-DRIVER	LR044330 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ocean/Ivory, RHD / Upper / From: DA792911	-	1	Enquire
<06010A	LR044331	COMPARTMENT - GLOVE - CO-DRIVER	LR044331 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, RHD / Upper / From: DA792911	-	1	Enquire
<06010B	LR013453	COMPARTMENT - GLOVE - CO-DRIVER	LR013453 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony/Tan, LHD / Ebony Black, Lower / From: AA000001	-	1	Enquire
<06010B	LR016456	COMPARTMENT - GLOVE - CO-DRIVER	LR016456 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ocean/Ivory, LHD / Ivory, Lower / From: AA000001	-	1	Enquire
<06010B	LR013454	COMPARTMENT - GLOVE - CO-DRIVER	LR013454 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, LHD / Almond, Lower / From: AA000001	-	1	Enquire
<06010B	LR013455	COMPARTMENT - GLOVE - CO-DRIVER	LR013455 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony/Tan, RHD / Ebony Black, Lower / From: AA000001	-	1	Enquire
<06010B	LR013456	COMPARTMENT - GLOVE - CO-DRIVER	LR013456 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ocean/Ivory, RHD / Ivory, Lower / From: AA000001	-	1	Enquire
<06010B	LR013459	COMPARTMENT - GLOVE - CO-DRIVER	LR013459 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Cntr-Ebony Black/Almond, RHD / Almond, Lower / From: AA000001	-	1	Enquire
<06024	LR014988	DOOR - GLOVE COMPARTMENT	LR014988 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, LHD / Ebony Black / From: AA000001 / To: AA235974	-	1	Enquire
<06024	LR014989	DOOR - GLOVE COMPARTMENT	LR014989 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony/Ivory, LHD / Ivory / From: AA000001 / To: AA235974	-	1	Enquire
<06024	LR014990	DOOR - GLOVE COMPARTMENT	LR014990 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, LHD / Almond / From: AA000001 / To: AA235974	-	1	Enquire
<06024	LR014991	DOOR - GLOVE COMPARTMENT	LR014991 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, RHD / Ebony Black / From: AA000001 / To: AA235974	-	1	Enquire
<06024	LR014992	DOOR - GLOVE COMPARTMENT	LR014992 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony/Ivory, RHD / Ivory / From: AA000001 / To: AA235974	-	1	Enquire
<06024	LR014993	DOOR - GLOVE COMPARTMENT	LR014993 DOOR - GLOVE COMPARTMENT I/P Facia Cntr-Ebony Black/Almond, RHD / Almond / From: AA000001 / To: AA235974	-	1	Enquire
<06024	LR021496	DOOR - GLOVE COMPARTMENT	LR021496 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ocean/Ivory, LHD / From: AA235975 / To: DA792910	-	1	Enquire
<06024	LR021501	DOOR - GLOVE COMPARTMENT	LR021501 DOOR - GLOVE COMPARTMENT I/P Facia Cntr-Ebony Black/Almond, RHD / From: AA235975 / To: DA792910	-	1	Enquire
<06024	LR021500	DOOR - GLOVE COMPARTMENT	LR021500 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ocean/Ivory, RHD / From: AA235975 / To: DA792910	-	1	Enquire
<06024	LR044332	DOOR - GLOVE COMPARTMENT	LR044332 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony/Tan, LHD / From: AA235975 / To: DA792910	-	1	Enquire
<06024	LR021497	DOOR - GLOVE COMPARTMENT	LR021497 DOOR - GLOVE COMPARTMENT I/P Facia Cntr-Ebony Black/Almond, LHD / From: AA235975 / To: DA792910	-	1	Enquire
<06024	LR021499	DOOR - GLOVE COMPARTMENT	LR021499 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, RHD / From: AA235975 / To: DA792910	-	1	Enquire
<06024	LR044335	DOOR - GLOVE COMPARTMENT	LR044335 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony/Tan, RHD / From: DA792911	-	1	Enquire
<06024	LR044336	DOOR - GLOVE COMPARTMENT	LR044336 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ocean/Ivory, RHD / From: DA792911	-	1	Enquire
<06024	LR044337	DOOR - GLOVE COMPARTMENT	LR044337 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, RHD / From: DA792911	-	1	Enquire
<06024	LR044334	DOOR - GLOVE COMPARTMENT	LR044334 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, LHD / From: DA792911	-	1	Enquire
<06024	LR044333	DOOR - GLOVE COMPARTMENT	LR044333 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony/Ivory, LHD / From: DA792911	-	1	Enquire
<06024	LR044332	DOOR - GLOVE COMPARTMENT	LR044332 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony/Tan, LHD / From: DA792911	-	1	Enquire
<06064A	FND500050PMA	STRIKER - GLOVE COMPARTMENT DOOR	FND500050PMA STRIKER - GLOVE COMPARTMENT DOOR Upper / From: AA000001	-	1	Enquire
<06064B	FND500012PMA	STRIKER - GLOVE COMPARTMENT DOOR	FND500012PMA STRIKER - GLOVE COMPARTMENT DOOR Lower / From: AA000001	-	1	Enquire
<06066	LR020472	BUMP STOP - GLOVE BOX	LR020472 BUMP STOP - GLOVE BOX From: AA000001	-	1	Enquire
HB1	FFY500012	BOLT	FFY500012 BOLT Hinge, Pin, Upper / From: AA000001	-	1	Enquire
HB2	FFY500020	BOLT	FFY500020 BOLT Hinge, Lower, Pin / From: AA000001	-	1	Enquire
HC1	FYC500040	CLIP	FYC500040 CLIP Steel / From: AA000001	-	4	Enquire
HC2	FFI500010PMA	CLIP	FFI500010PMA CLIP Pen Holder / From: AA000001	-	1	Enquire
HN1	FYH500190	NUT	FYH500190 NUT "Spring", Type 'U' / From: AA000001	-	2	Enquire
HS1	FYP500380	SCREW	FYP500380 SCREW 4 X 16MM, Glovebox Damper To The Quarter Moulding / From: AA000001	-	2	Enquire
HS2	FYP500370	SCREW	FYP500370 SCREW 4 x 10MM / From: AA000001	-	6	Enquire
11N690	FBV500070PVJ	COVER - SWITCH	FBV500070PVJ COVER - SWITCH Blank, Passenger Airbag Deactivation Switch / From: AA000001	-	1	Enquire
