Back Door/Tailgate Trim Panels ((V) FROMCA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Back Door/Tailgate Trim Panels ((V) FROMCA000001)

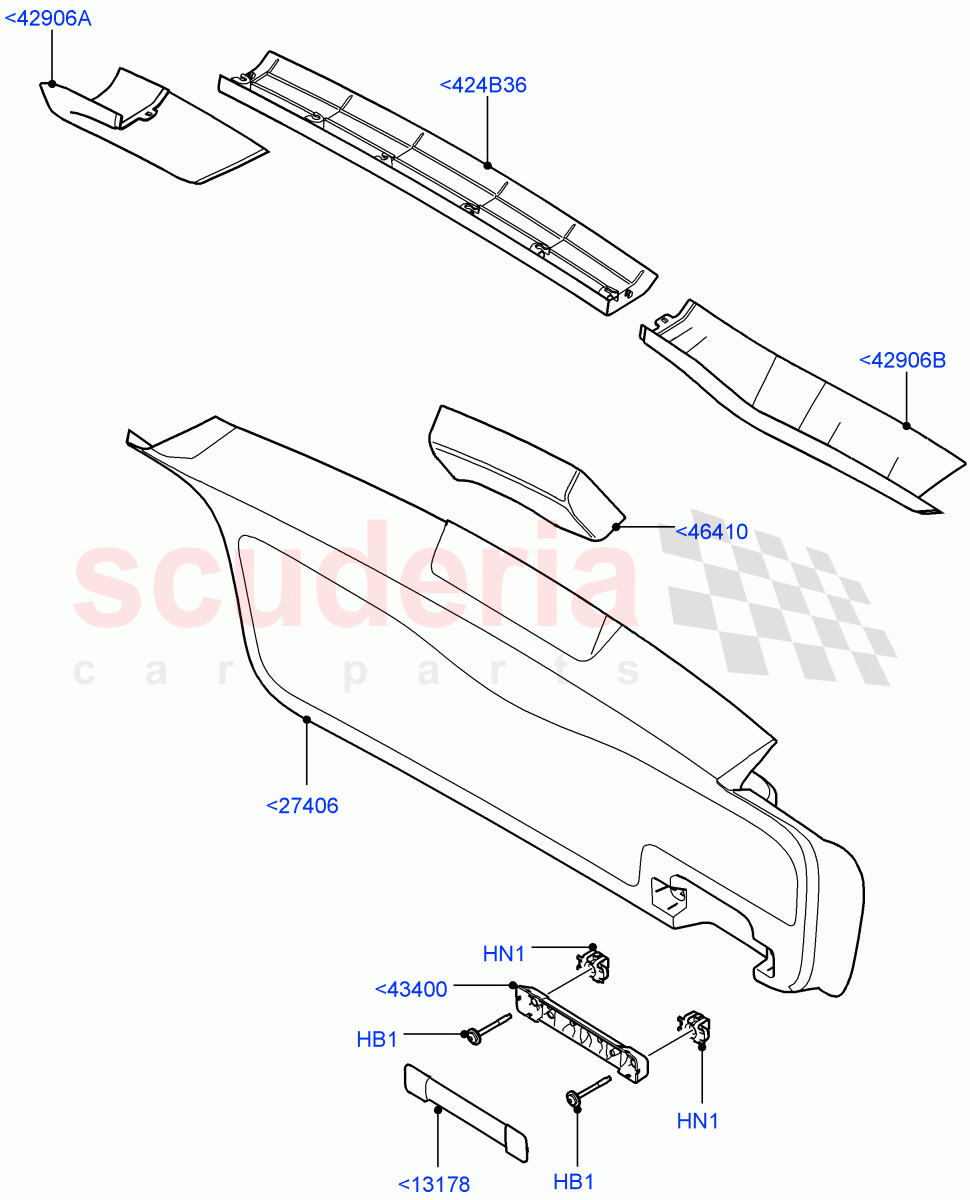

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR029964	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FAS500040	NUT - CAGE	Enquire	To Order
	LR045352	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030190	COVER - TAILGATE HANDLE	Enquire	To Order
	LR030191	COVER - TAILGATE HANDLE	Enquire	To Order
	LR033657	COVER - TAILGATE HANDLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR030019	PANEL - TAILGATE TRIM	Enquire	To Order
	LR030020	PANEL - TAILGATE TRIM	Enquire	To Order
	LR030021	PANEL - TAILGATE TRIM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR030188	HANDLE - TAILGATE	Enquire	To Order
	LR030189	HANDLE - TAILGATE	Enquire	To Order
	LR033638	HANDLE - TAILGATE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ERK500211PVJ	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030183	PANEL - DOOR TRIM - UPPER	Enquire	To Order
	LR035350	PANEL - DOOR TRIM - UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030022	PANEL - DOOR TRIM - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030023	PANEL - DOOR TRIM - REAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<424B36	LR030183	PANEL - DOOR TRIM - UPPER	LR030183 PANEL - DOOR TRIM - UPPER Centre, Ebony Black / From: CA000001 / To: CA734050	-	1	Enquire
<424B36	LR035350	PANEL - DOOR TRIM - UPPER	LR035350 PANEL - DOOR TRIM - UPPER Centre, Ebony Black / From: CA734051	-	1	Enquire
<13178	LR030190	COVER - TAILGATE HANDLE	LR030190 COVER - TAILGATE HANDLE Interior Ocean Carpet / Handle / From: CA000001	-	1	Enquire
<13178	LR030191	COVER - TAILGATE HANDLE	LR030191 COVER - TAILGATE HANDLE Interior Nutmeg Carpet - LR / Handle / From: CA000001	-	1	Enquire
<13178	LR033657	COVER - TAILGATE HANDLE	LR033657 COVER - TAILGATE HANDLE Int Ebony Carpet / From: CA000001 / To: CA734050	-	1	Enquire
<13178	LR075113	COVER - TAILGATE HANDLE	LR075113 COVER - TAILGATE HANDLE Int Ebony Carpet / Handle / From: CA734051	-	1	Enquire
<27406	LR030019	PANEL - TAILGATE TRIM	LR030019 PANEL - TAILGATE TRIM Interior Ocean Carpet / From: CA000001 / To: CA734050	-	1	Enquire
<27406	LR030020	PANEL - TAILGATE TRIM	LR030020 PANEL - TAILGATE TRIM Int Ebony Carpet / From: CA000001 / To: CA734050	-	1	Enquire
<27406	LR030021	PANEL - TAILGATE TRIM	LR030021 PANEL - TAILGATE TRIM Interior Nutmeg Carpet - LR / From: CA000001 / To: CA734050	-	1	Enquire
<27406	LR036387	PANEL - TAILGATE TRIM	LR036387 PANEL - TAILGATE TRIM Interior Ocean Carpet / From: CA734051	-	1	Enquire
<27406	LR036388	PANEL - TAILGATE TRIM	LR036388 PANEL - TAILGATE TRIM Int Ebony Carpet / From: CA734051	-	1	Enquire
<27406	LR036389	PANEL - TAILGATE TRIM	LR036389 PANEL - TAILGATE TRIM Interior Nutmeg Carpet - LR / From: CA734051	-	1	Enquire
<42906A	LR030022	PANEL - DOOR TRIM - REAR	LR030022 PANEL - DOOR TRIM - REAR RH, Ebony Black / From: CA000001	-	1	Enquire
<42906B	LR030023	PANEL - DOOR TRIM - REAR	LR030023 PANEL - DOOR TRIM - REAR LH, Ebony Black / From: CA000001	-	1	Enquire
<43400	LR030188	HANDLE - TAILGATE	LR030188 HANDLE - TAILGATE Interior Ocean Carpet / From: CA000001	-	1	Enquire
<43400	LR030189	HANDLE - TAILGATE	LR030189 HANDLE - TAILGATE Interior Nutmeg Carpet - LR / From: CA000001	-	1	Enquire
<43400	LR033638	HANDLE - TAILGATE	LR033638 HANDLE - TAILGATE Int Ebony Carpet / From: CA000001 / To: CA734050	-	1	Enquire
<43400	LR075109	HANDLE - TAILGATE	LR075109 HANDLE - TAILGATE Int Ebony Carpet / From: CA734051	-	1	Enquire
<46410	ERK500211PVJ	COVER	ERK500211PVJ COVER Ebony Black, Wiper Motor / From: AA000001	-	1	Enquire
HB1	LR029964	BOLT - FLANGED HEX.	LR029964 BOLT - FLANGED HEX. M6 x 60MM / From: CA000001	-	2	Enquire
HN1	FAS500040	NUT - CAGE	FAS500040 NUT - CAGE Mounted To Tailgate / From: CA000001 / To: DA783280	-	2	Enquire
HN1	LR045352	NUT - SPECIAL	LR045352 NUT - SPECIAL Mounted To Tailgate / From: DA783281	-	2	Enquire
