Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Front Susp.Arms/Stabilizer/X-Member (Front Stabilizer Bar And Suspension Links) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500090 BOLT (NON HAZ) Enquire To Order
Photo Part No Description Price (each) Stock
RYP501080 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FX112056 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYP501120 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP501110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP500030 SCREW (NON HAZ) Enquire To Order
Photo Part No Description Price (each) Stock
RYF500120 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
RVU500011 BUSH - STABILIZER BAR LINK (NON HAZ) Enquire To Order
Photo Part No Description Price (each) Stock
LR018378 ACTUATOR Enquire To Order
LR019933 BAR - FRONT STABILIZER Enquire To Order
LR020592 ACTUATOR Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR017423 BAR - ROLL Enquire To Order
Photo Part No Description Price (each) Stock
RBU500042 BRACKET - STABILIZER BAR Enquire To Order
LR031369 BRACKET - STABILIZER BAR Enquire To Order
Photo Part No Description Price (each) Stock
RBU500100 CLAMP - RUBBER BUSH Enquire To Order
Photo Part No Description Price (each) Stock
RBM500150 LINK Enquire To Order
RBM500140 LINK Enquire To Order
Photo Part No Description Price (each) Stock
LR018347 SPACER Enquire To Order
View All

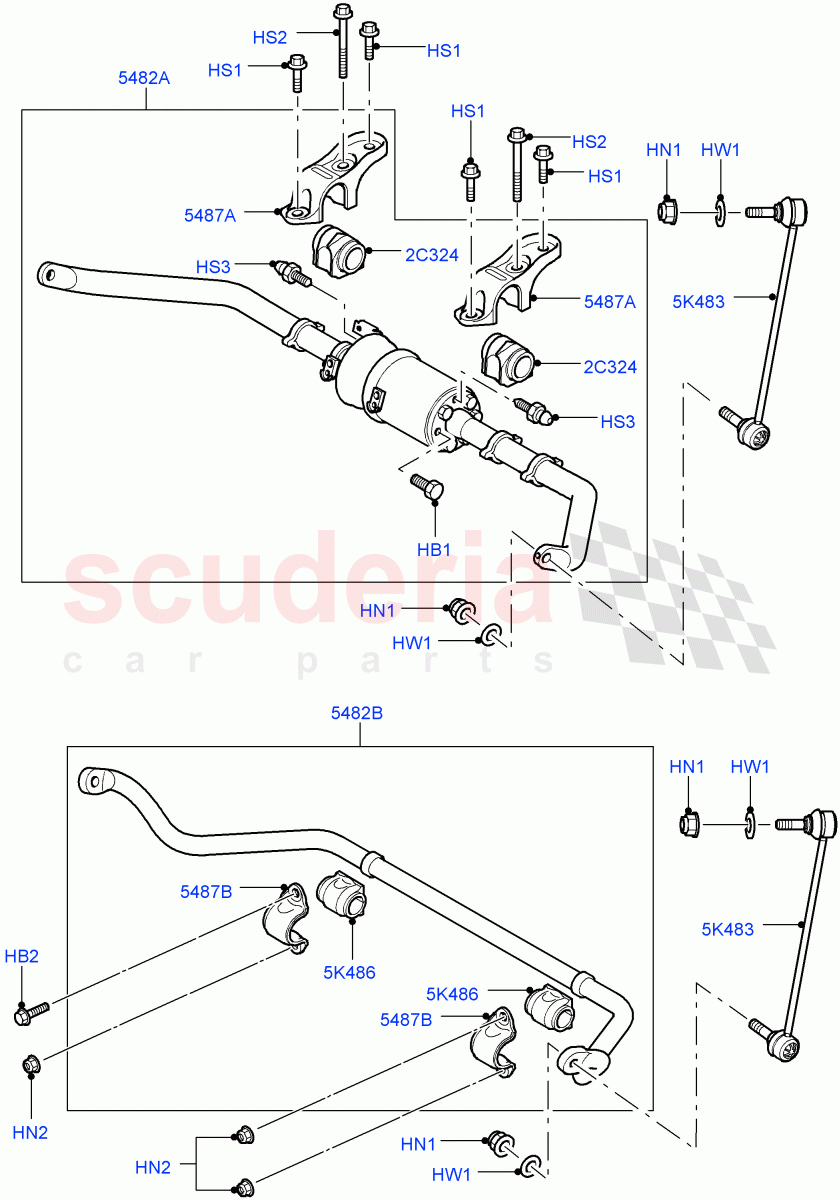

Front Susp.Arms/Stabilizer/X-Member (Front Stabilizer Bar And Suspension Links) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500090
BOLT (NON HAZ)
With ACE Suspension, With Roll Stability Control / HEX Flange, M12 / From: AA000001 		- 12 Enquire
HB2 RYP501080
BOLT
Less ACE Suspension, Less Roll Stability Control / M12 x 25MM / From: AA000001 		- 1 Enquire
HN1 FY114056
NUT - HEX.
Hexagonal Head, M14 / From: AA000001 		- 4 Enquire
HN2 FX112056
NUT - HEX.
HEX Flange, M12 / From: AA000001 		- 3 Enquire
HS1 RYP501120
SCREW
With ACE Suspension, With Roll Stability Control / HEX Flange, M12 x 40MM / From: AA000001 		- 4 Enquire
HS2 RYP501110
SCREW
With ACE Suspension, With Roll Stability Control / HEX Flange, M12 x 85MM / From: AA000001 		- 2 Enquire
HS3 RYP500030
SCREW (NON HAZ)
With ACE Suspension, With Roll Stability Control / Bleeder Screw / From: AA000001 		- 2 Enquire
HW1 RYF500120
WASHER
14.2 X 24 X 2.3 / From: AA000001 		- 4 Enquire
2C324 RVU500011
BUSH - STABILIZER BAR LINK (NON HAZ)
With ACE Suspension, With Roll Stability Control / Front stabilizer / From: AA000001 		- 2 Enquire
5K483 RBM500150
LINK
LH / From: AA000001 		- 1 Enquire
5K483 RBM500140
LINK
RH / From: AA000001 		- 1 Enquire
5K486 LR018347
SPACER
Less ACE Suspension, Less Roll Stability Control / From: AA000001 		- 2 Enquire
5482A LR018378
ACTUATOR
With ACE Suspension, With Roll Stability Control / New Part-Please Check For Reman Version / From: AA000001 / To: AA229469 		- 1 Enquire
5482A LR019933
BAR - FRONT STABILIZER
With ACE Suspension, With Roll Stability Control / From: AA229470 / To: AA258697 		- 1 Enquire
5482A LR020592
ACTUATOR
With ACE Suspension, With Roll Stability Control / Remanufactured Part / From: AA000001 / To: AA229469 		- 1 Enquire
5482A LR024069
BAR - FRONT STABILIZER
With ACE Suspension, With Roll Stability Control / From: AA258698 / To: CA731503 		- 1 Enquire
5482A LR032959
BAR - FRONT STABILIZER (NON HAZ)
With ACE Suspension, With Roll Stability Control / From: CA731504 		- 1 Enquire
5482B LR017423
BAR - ROLL
Less ACE Suspension, Less Roll Stability Control / From: AA000001 		- 1 Enquire
5487A RBU500042
BRACKET - STABILIZER BAR
With ACE Suspension, With Roll Stability Control / From: AA000001 / To: AA999999 		- 2 Enquire
5487A LR031369
BRACKET - STABILIZER BAR
With ACE Suspension, With Roll Stability Control / From: BA000001 		- 2 Enquire
5487B RBU500100
CLAMP - RUBBER BUSH
Less ACE Suspension, Less Roll Stability Control / Front stabilizer / From: AA000001 		- 2 Enquire
