Find Your Part

Drive Shaft - Front Axle Drive (Drive Shaft & Boot Kits) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Drive Shaft - Front Axle Drive (Drive Shaft & Boot Kits) ((V) FROMAA000001)

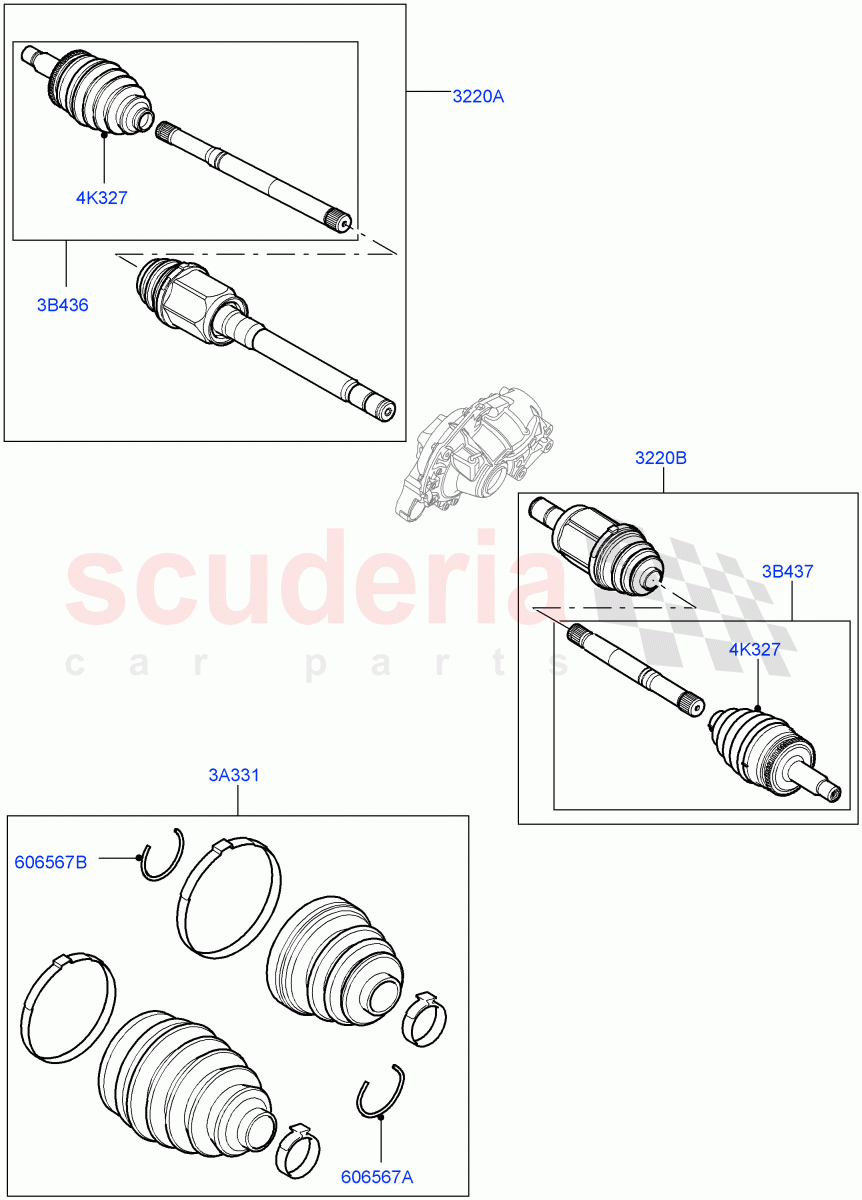

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TDB500080	SHAFT - FRONT AXLE	Enquire	To Order
	TDB500100	SHAFT - DRIVE	Enquire	To Order
	LR047292	SHAFT - FRONT AXLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TDB500090	SHAFT - FRONT AXLE	Enquire	To Order
	TDB500110	SHAFT - DRIVE	Enquire	To Order
	LR047293	SHAFT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TDR500100	BOOT	Enquire	To Order
	TDR500110	BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025869	SHAFT - FRONT AXLE	Enquire	To Order
	LR025872	SHAFT - FRONT AXLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025873	SHAFT - FRONT AXLE	Enquire	To Order
	LR025874	SHAFT - FRONT AXLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TDJ500040	JOINT - CV	Enquire	To Order
	TDJ500030	JOINT - CV	Enquire	To Order
	LR060383	JOINT - CV	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TDL500030	Circlip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TDL500050	CIRCLIP	Enquire	To Order
	TDL500060	CIRCLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
3A331	TDR500100	BOOT	TDR500100 BOOT 3.0L 24V DOHC V6 TC Diesel / From: AA000001	-	2	Enquire
3A331	TDR500110	BOOT	TDR500110 BOOT 3.6L V8 32V DOHC EFi Diesel Lion / From: AA000001	-	2	Enquire
3B436	LR025869	SHAFT - FRONT AXLE	LR025869 SHAFT - FRONT AXLE 3.0L 24V DOHC V6 TC Diesel / RH / From: AA000001	-	1	Enquire
3B436	LR025872	SHAFT - FRONT AXLE	LR025872 SHAFT - FRONT AXLE 3.6L V8 32V DOHC EFi Diesel Lion / RH / From: AA000001	-	1	Enquire
3B437	LR025873	SHAFT - FRONT AXLE	LR025873 SHAFT - FRONT AXLE 3.0L 24V DOHC V6 TC Diesel / LH / From: AA000001	-	1	Enquire
3B437	LR025874	SHAFT - FRONT AXLE	LR025874 SHAFT - FRONT AXLE 3.6L V8 32V DOHC EFi Diesel Lion / LH / From: AA000001	-	1	Enquire
4K327	TDJ500040	JOINT - CV	TDJ500040 JOINT - CV 3.6L V8 32V DOHC EFi Diesel Lion / From: AA000001 / To: DA800000	-	2	Enquire
4K327	TDJ500030	JOINT - CV	TDJ500030 JOINT - CV 3.0L 24V DOHC V6 TC Diesel / From: AA000001 / To: DA800000	-	2	Enquire
4K327	LR060383	JOINT - CV	LR060383 JOINT - CV 3.6L V8 32V DOHC EFi Diesel Lion / From: DA800001	-	2	Enquire
4K327	LR060382	JOINT - CV	LR060382 JOINT - CV 3.0L 24V DOHC V6 TC Diesel / From: DA800001	-	2	Enquire
3220A	TDB500080	SHAFT - FRONT AXLE	TDB500080 SHAFT - FRONT AXLE 5.0L OHC SGDI SC V8 Petrol - AJ133 / RH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA810672	-	1	Enquire
3220A	TDB500100	SHAFT - DRIVE	TDB500100 SHAFT - DRIVE 3.0L 24V DOHC V6 TC Diesel / RH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA810672	-	1	Enquire
3220A	LR047292	SHAFT - FRONT AXLE	LR047292 SHAFT - FRONT AXLE 3.6L V8 32V DOHC EFi Diesel Lion / RH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA810673	-	1	Enquire
3220A	LR047294	SHAFT - FRONT AXLE	LR047294 SHAFT - FRONT AXLE 3.0L 24V DOHC V6 TC Diesel / RH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA810673	-	1	Enquire
3220B	TDB500090	SHAFT - FRONT AXLE	TDB500090 SHAFT - FRONT AXLE 5.0L OHC SGDI SC V8 Petrol - AJ133 / LH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA810672	-	1	Enquire
3220B	TDB500110	SHAFT - DRIVE	TDB500110 SHAFT - DRIVE 3.0L 24V DOHC V6 TC Diesel / LH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA810672	-	1	Enquire
3220B	LR047293	SHAFT	LR047293 SHAFT 3.6L V8 32V DOHC EFi Diesel Lion / LH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA810673	-	1	Enquire
3220B	LR047295	SHAFT - FRONT AXLE	LR047295 SHAFT - FRONT AXLE 3.0L 24V DOHC V6 TC Diesel / LH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA810673	-	1	Enquire
606567A	TDL500030	Circlip	TDL500030 Circlip Differential / From: AA000001	-	2	Enquire
606567B	TDL500050	CIRCLIP	TDL500050 CIRCLIP 3.0L 24V DOHC V6 TC Diesel / Barshaft / From: AA000001	-	2	Enquire
606567B	TDL500060	CIRCLIP	TDL500060 CIRCLIP 3.6L V8 32V DOHC EFi Diesel Lion / Barshaft / From: AA000001	-	2	Enquire
