Find Your Part

View All

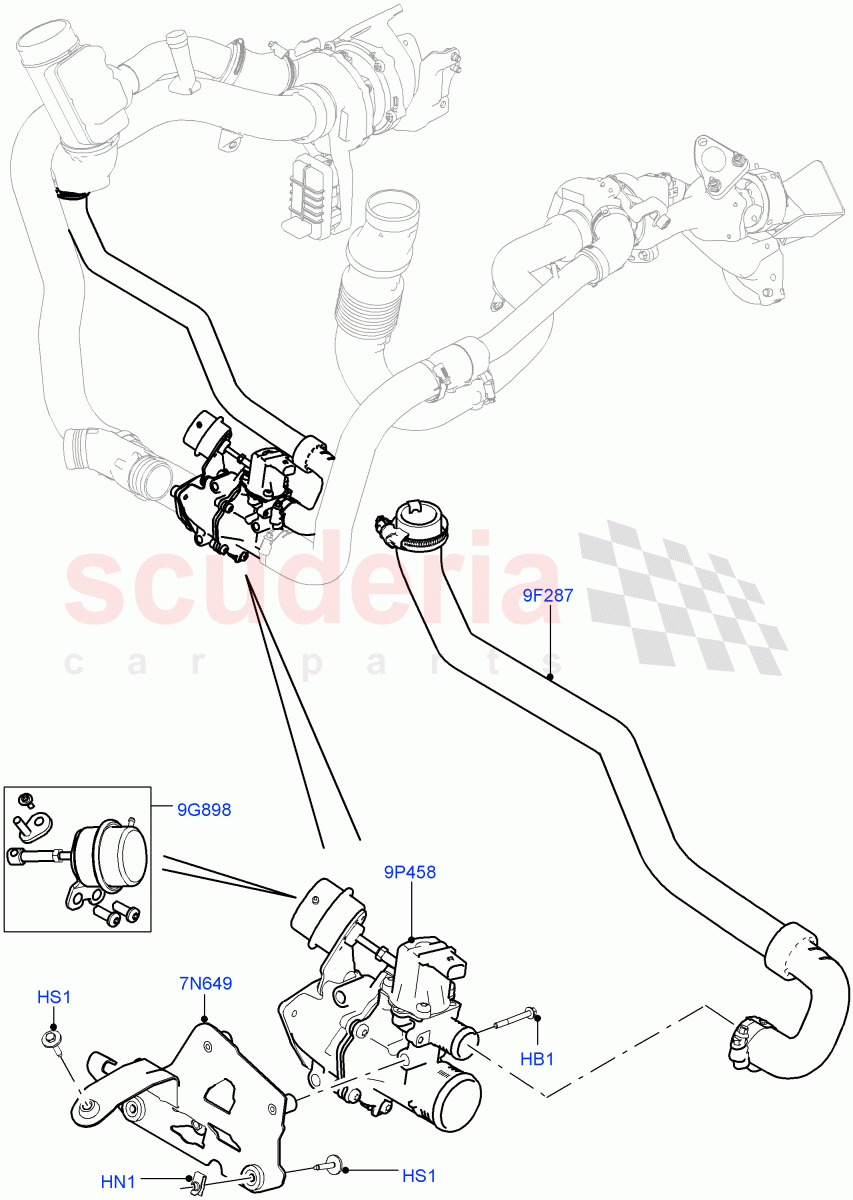

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB106116	BOLT - HEX.HEAD	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038278	BRACKET - SUPPORT - SHUT OFF VALVE	$57.47	To Order
	LR063919	BRACKET - SUPPORT - SHUT OFF VALVE	$44.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036486	HOSE - AIR	$106.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033284	KIT - ACTUATOR SHUT OFF VALVE	$115.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035450	VALVE - SHUT-OFF	$762.78	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FB106116	BOLT - HEX.HEAD IN STOCK	FB106116 BOLT - HEX.HEAD HEX Flange, M6 x 55MM, Shut Off Valve IN STOCK	$1.00	3
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 IN STOCK	$1.57	2
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Bracket, Hexagonal Head, M6X30, Shut Off Valve	$4.03	3
7N649	LR038278	BRACKET - SUPPORT - SHUT OFF VALVE	LR038278 BRACKET - SUPPORT - SHUT OFF VALVE Compressed Air Recirculation And Shut Off Valve / To: EA385906	$57.47	1
7N649	LR063919	BRACKET - SUPPORT - SHUT OFF VALVE	LR063919 BRACKET - SUPPORT - SHUT OFF VALVE Compressed Air Recirculation And Shut Off Valve / From: EA385907	$44.45	1
9F287	LR036486	HOSE - AIR	LR036486 HOSE - AIR Compressed Air Recirculation, From Valve To Air Inlet Hose	$106.28	1
9G898	LR033284	KIT - ACTUATOR SHUT OFF VALVE	LR033284 KIT - ACTUATOR SHUT OFF VALVE Compressed Air Recirculation And Shut Off Valve	$115.06	1
9P458	LR035450	VALVE - SHUT-OFF	LR035450 VALVE - SHUT-OFF Compressed Air Recirculation, Shut Off Valve	$762.78	1
