Find Your Part

View All

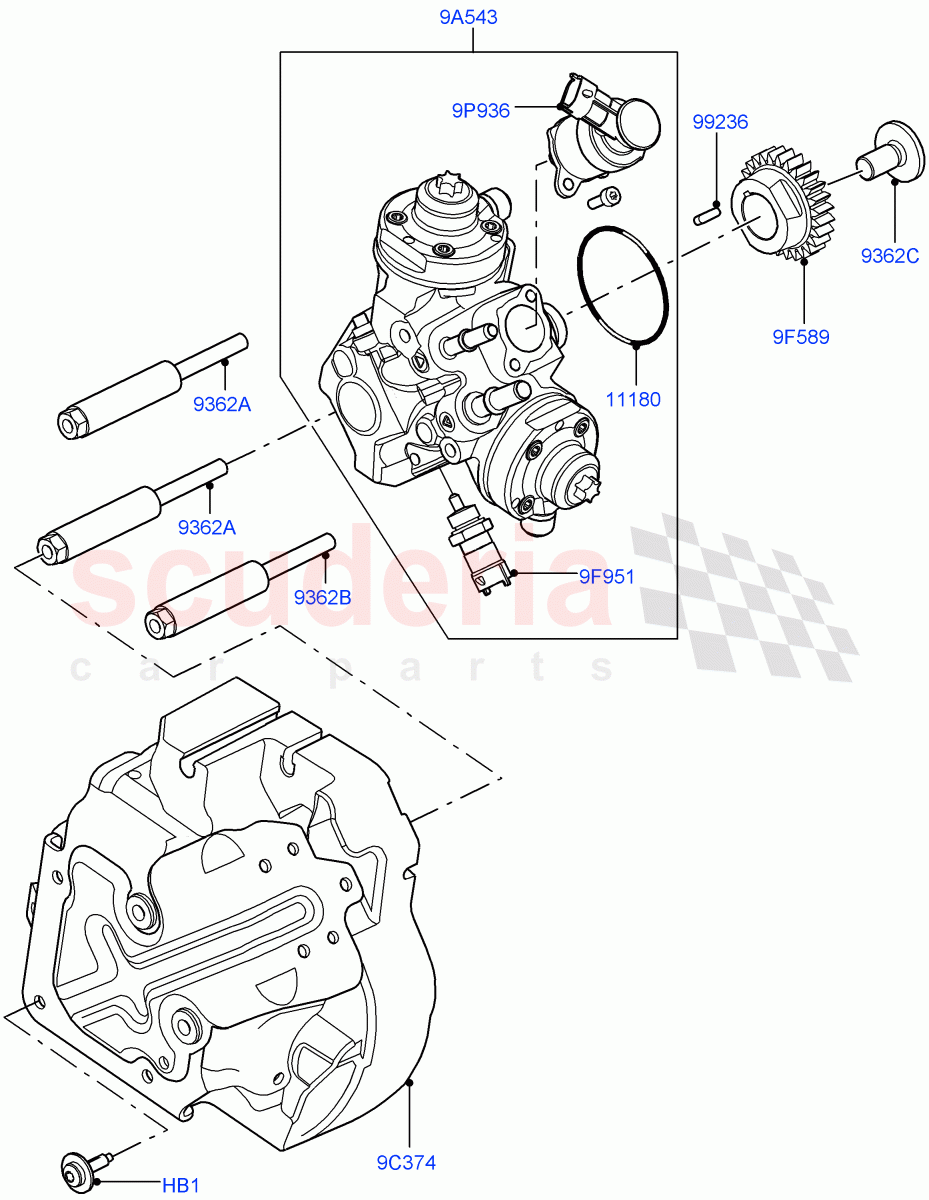

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4147433	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023170	SEAL - FUEL INJECTION PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023015	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023032	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023019	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022970	KEY - FUEL PUMP GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031635	ACOUSTIC COVER - FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022965	GEAR - FUEL INJECTION PUMP DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023147	SENSOR - FUEL TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023169	VALVE - FUEL METERING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	4147433	BOLT	4147433 BOLT M6 X 25MM	-	5	Enquire
9A543	LR045642	PUMP - FUEL INJECTION	LR045642 PUMP - FUEL INJECTION To: EA357489	-	1	Enquire
9A543	LR061536	PUMP - FUEL INJECTION	LR061536 PUMP - FUEL INJECTION From: EA357490	-	1	Enquire
9C374	LR031635	ACOUSTIC COVER - FUEL PUMP	LR031635 ACOUSTIC COVER - FUEL PUMP	-	1	Enquire
9F589	LR022965	GEAR - FUEL INJECTION PUMP DRIVE	LR022965 GEAR - FUEL INJECTION PUMP DRIVE Fuel Injection Pump Drive	-	1	Enquire
9F951	LR023147	SENSOR - FUEL TEMPERATURE	LR023147 SENSOR - FUEL TEMPERATURE Fuel Temperature Sensor	-	1	Enquire
9P936	LR023169	VALVE - FUEL METERING	LR023169 VALVE - FUEL METERING Fuel Metering	-	1	Enquire
9362A	LR023015	BOLT - SPECIAL	LR023015 BOLT - SPECIAL Not Reusable	-	2	Enquire
9362B	LR023032	BOLT - SPECIAL	LR023032 BOLT - SPECIAL	-	1	Enquire
9362C	LR023019	BOLT	LR023019 BOLT Fuel Pump Gear	-	1	Enquire
11180	LR023170	SEAL - FUEL INJECTION PUMP	LR023170 SEAL - FUEL INJECTION PUMP Fuel Injection Pump	-	1	Enquire
99236	LR022970	KEY - FUEL PUMP GEAR	LR022970 KEY - FUEL PUMP GEAR Fuel Pump Gear	-	1	Enquire
