Fuel Injectors And Pipes (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Fuel Injectors And Pipes (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

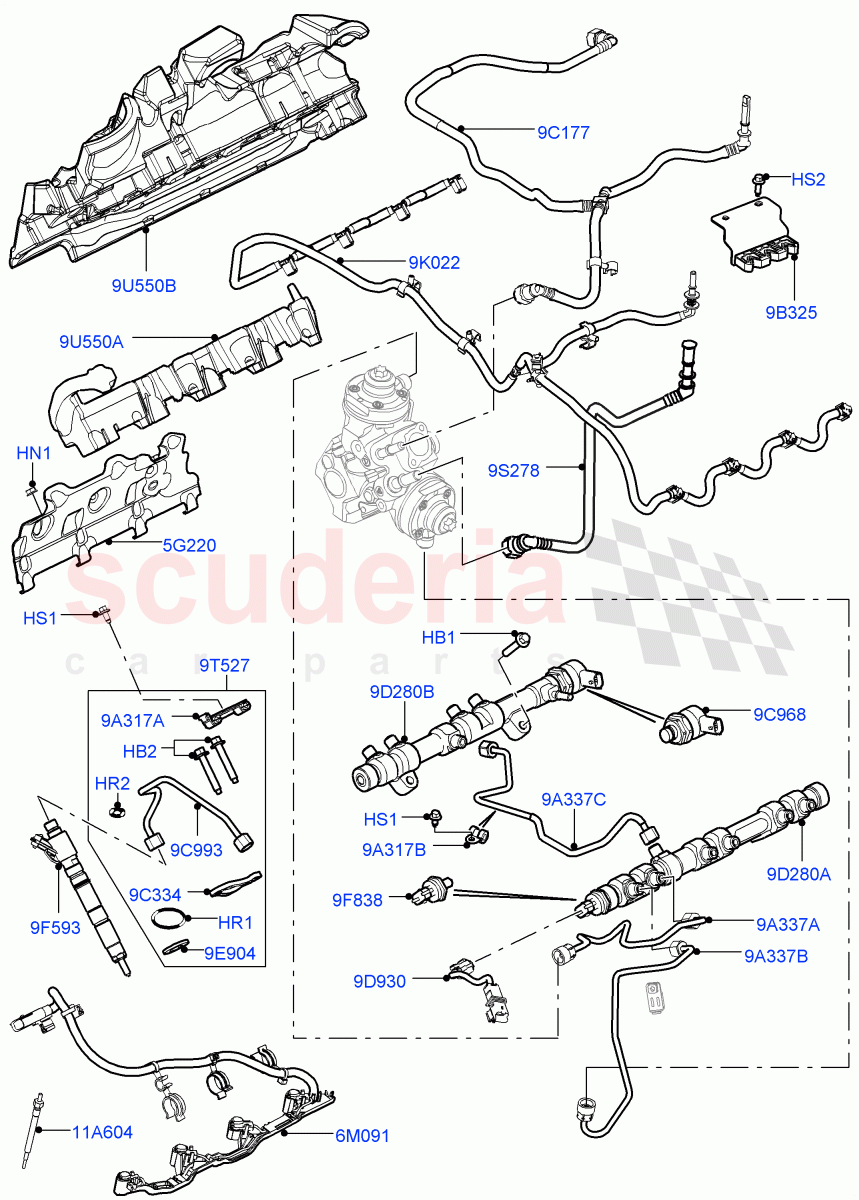

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000628	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1387730	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022992	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022994	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000621	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022774	SHIELD - FUEL INJECTORS	Enquire	To Order
	LR022776	SHIELD - FUEL INJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059068	WIRE - GLOW PLUG	Enquire	To Order
	LR093137	WIRE - GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022807	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022584	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032817	CLAMP - FUEL INJECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020692	REGULATOR - FUEL PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052495	TUBE - FUEL	Enquire	To Order
	LR052496	TUBE - FUEL	Enquire	To Order
	LR052497	TUBE - FUEL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR112662	WIRE - FUEL PRESSURE SENSOR	Enquire	To Order
	LR085463	WIRE - FUEL PRESSURE SENSOR	Enquire	To Order
	LR112662	WIRE - FUEL PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032818	WASHER - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054298	INJECTOR - FUEL	Enquire	To Order
	LR066229	INJECTOR - FUEL	Enquire	To Order
	LR054296	INJECTOR - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020693	SENSOR - FUEL PRESSURE	Enquire	To Order
	LR020693	SENSOR - FUEL PRESSURE	Enquire	To Order
	LR020693	SENSOR - FUEL PRESSURE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR022590	TUBE - LEAK OFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022587	TUBE - FUEL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033074	KIT - INJECTOR REFIT	Enquire	To Order
	LR033075	KIT - INJECTOR REFIT	Enquire	To Order
	LR033076	KIT - INJECTOR REFIT	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013275	GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002456	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052507	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052508	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052505	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022982	MANIFOLD - FUEL SUPPLY	Enquire	To Order
	LR022982	MANIFOLD - FUEL SUPPLY	Enquire	To Order
	LR022982	MANIFOLD - FUEL SUPPLY	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR022983	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022923	INSULATOR - FUEL INJECTORS	Enquire	To Order
	LR022925	INSULATOR - FUEL INJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035620	INSULATOR - FUEL INJECTORS	Enquire	To Order
	LR022930	INSULATOR - FUEL INJECTORS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000628	BOLT	LR000628 BOLT Fuel Rail, Hexagonal Head, M8 x 40MM	-	5	Enquire
HB2	1387730	BOLT	1387730 BOLT Fuel Injector, M6 x 35MM	-	16	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6, Shield	-	10	Enquire
HR1	LR022992	O-RING	LR022992 O-RING Lower	-	8	Enquire
HR2	LR022994	O-RING	LR022994 O-RING Upper	-	8	Enquire
HS1	LR000621	SCREW	LR000621 SCREW Clip, For Fuel Tube, M6 X 10MM	-	5	Enquire
HS2	RYG500190	SCREW	RYG500190 SCREW Hexagonal Head, M6 X 16MM, Oil Tube Bracket	-	2	Enquire
5G220	LR022774	SHIELD - FUEL INJECTORS	LR022774 SHIELD - FUEL INJECTORS LH, Fuel Injectors	-	1	Enquire
5G220	LR022776	SHIELD - FUEL INJECTORS	LR022776 SHIELD - FUEL INJECTORS RH, Fuel Injectors	-	1	Enquire
6M091	LR059068	WIRE - GLOW PLUG	LR059068 WIRE - GLOW PLUG To: GA111481	-	2	Enquire
6M091	LR093137	WIRE - GLOW PLUG	LR093137 WIRE - GLOW PLUG From: GA111482	-	2	Enquire
9A317A	LR002456	CLIP	LR002456 CLIP Clip-Fuel Tube(Dual Latch)	-	4	Enquire
9A317B	LR002751	CLIP	LR002751 CLIP Balance Pipe, For Fuel Tube	-	1	Enquire
9A337A	LR052507	PIPE - FUEL	LR052507 PIPE - FUEL Fuel Lines To Fuel Rail, Supply From Pump, Upper	-	1	Enquire
9A337B	LR052508	PIPE - FUEL	LR052508 PIPE - FUEL Fuel Lines To Fuel Rail, Lower, Supply From Pump	-	1	Enquire
9A337C	LR052505	PIPE - FUEL	LR052505 PIPE - FUEL Balance Pipe	-	1	Enquire
9B325	LR022807	BRACKET - FUEL TUBE SUPPORT	LR022807 BRACKET - FUEL TUBE SUPPORT	-	1	Enquire
9C177	LR022584	PIPE - FUEL	LR022584 PIPE - FUEL	-	1	Enquire
9C334	LR032817	CLAMP - FUEL INJECTION	LR032817 CLAMP - FUEL INJECTION Fuel Injector	-	8	Enquire
9C968	LR020692	REGULATOR - FUEL PRESSURE	LR020692 REGULATOR - FUEL PRESSURE	-	1	Enquire
9C993	LR052495	TUBE - FUEL	LR052495 TUBE - FUEL Cylinder No. 8, Fuel Rail To Injector	-	1	Enquire
9C993	LR052496	TUBE - FUEL	LR052496 TUBE - FUEL Cylinder No. 7, Fuel Rail To Injector	-	1	Enquire
9C993	LR052497	TUBE - FUEL	LR052497 TUBE - FUEL Cylinder No.6, Fuel Rail To Injector	-	1	Enquire
9C993	LR052498	TUBE - FUEL	LR052498 TUBE - FUEL Cylinder No.5, Fuel Rail To Injector	-	1	Enquire
9C993	LR052499	TUBE - FUEL	LR052499 TUBE - FUEL Cylinder No.4, Fuel Rail To Injector	-	1	Enquire
9C993	LR052500	TUBE - FUEL	LR052500 TUBE - FUEL Cylinder No.3, Fuel Rail To Injector	-	1	Enquire
9C993	LR052501	TUBE - FUEL	LR052501 TUBE - FUEL Cylinder No.2, Fuel Rail To Injector	-	1	Enquire
9C993	LR052502	TUBE - FUEL	LR052502 TUBE - FUEL Cylinder No.1, Fuel Rail To Injector	-	1	Enquire
9D280A	LR022982	MANIFOLD - FUEL SUPPLY	LR022982 MANIFOLD - FUEL SUPPLY LH, Includes Fuel Pressure Sensor / To: MA999999	-	1	Enquire
9D280A	LR022982	MANIFOLD - FUEL SUPPLY	LR022982 MANIFOLD - FUEL SUPPLY LH, Includes Fuel Pressure Sensor / From: NA700000 / To: NA799999	-	1	Enquire
9D280A	LR022982	MANIFOLD - FUEL SUPPLY	LR022982 MANIFOLD - FUEL SUPPLY LH, Includes Fuel Pressure Sensor / From: NA200000 / To: NA208038	-	1	Enquire
9D280A	LR164040	MANIFOLD - FUEL SUPPLY	LR164040 MANIFOLD - FUEL SUPPLY LH, Includes Fuel Pressure Sensor / From: NA208039 / To: NA699999	-	1	Enquire
9D280A	LR164040	MANIFOLD - FUEL SUPPLY	LR164040 MANIFOLD - FUEL SUPPLY LH, Includes Fuel Pressure Sensor / From: PA000001	-	1	Enquire
9D280B	LR022983	MANIFOLD - FUEL SUPPLY	LR022983 MANIFOLD - FUEL SUPPLY RH, With Valve	-	1	Enquire
9D930	LR112662	WIRE - FUEL PRESSURE SENSOR	LR112662 WIRE - FUEL PRESSURE SENSOR Fuel Pressure Sensor / To: FA999999	-	1	Enquire
9D930	LR085463	WIRE - FUEL PRESSURE SENSOR	LR085463 WIRE - FUEL PRESSURE SENSOR Fuel Pressure Sensor / From: GA000001 / To: HA179681	-	1	Enquire
9D930	LR112662	WIRE - FUEL PRESSURE SENSOR	LR112662 WIRE - FUEL PRESSURE SENSOR Fuel Pressure Sensor / From: HA179682	-	1	Enquire
9E904	LR032818	WASHER - SEALING	LR032818 WASHER - SEALING To Fuel Injectors	-	8	Enquire
9F593	LR054298	INJECTOR - FUEL	LR054298 INJECTOR - FUEL New Part-Please Check For Reman Version / To: EA339852	-	8	Enquire
9F593	LR066229	INJECTOR - FUEL	LR066229 INJECTOR - FUEL New Part-Please Check For Reman Version / From: EA339853	-	8	Enquire
9F593	LR054296	INJECTOR - FUEL	LR054296 INJECTOR - FUEL Remanufactured Part	-	8	Enquire
9F838	LR020693	SENSOR - FUEL PRESSURE	LR020693 SENSOR - FUEL PRESSURE Sensor - Fuel Rail Pressure / To: MA999999	-	1	Enquire
9F838	LR020693	SENSOR - FUEL PRESSURE	LR020693 SENSOR - FUEL PRESSURE Sensor - Fuel Rail Pressure / From: NA700000 / To: NA799999	-	1	Enquire
9F838	LR020693	SENSOR - FUEL PRESSURE	LR020693 SENSOR - FUEL PRESSURE Sensor - Fuel Rail Pressure / From: NA200000 / To: NA208038	-	1	Enquire
9F838	LR164042	SENSOR - FUEL PRESSURE	LR164042 SENSOR - FUEL PRESSURE Sensor - Fuel Rail Pressure / From: NA208039 / To: NA699999	-	1	Enquire
9F838	LR164042	SENSOR - FUEL PRESSURE	LR164042 SENSOR - FUEL PRESSURE Sensor - Fuel Rail Pressure / From: PA000001	-	1	Enquire
9K022	LR022590	TUBE - LEAK OFF	LR022590 TUBE - LEAK OFF Leak Off, To Fuel Injectors	-	1	Enquire
9S278	LR022587	TUBE - FUEL FEED	LR022587 TUBE - FUEL FEED Feed	-	1	Enquire
9T527	LR033074	KIT - INJECTOR REFIT	LR033074 KIT - INJECTOR REFIT Cylinder No. 8	-	1	Enquire
9T527	LR033075	KIT - INJECTOR REFIT	LR033075 KIT - INJECTOR REFIT Cylinder No. 7	-	1	Enquire
9T527	LR033076	KIT - INJECTOR REFIT	LR033076 KIT - INJECTOR REFIT Cylinder No.6	-	1	Enquire
9T527	LR033077	KIT - INJECTOR REFIT	LR033077 KIT - INJECTOR REFIT Cylinder No.5	-	1	Enquire
9T527	LR033078	KIT - INJECTOR REFIT	LR033078 KIT - INJECTOR REFIT Cylinder No.4	-	1	Enquire
9T527	LR033079	KIT - INJECTOR REFIT	LR033079 KIT - INJECTOR REFIT Cylinder No.3	-	1	Enquire
9T527	LR033080	KIT - INJECTOR REFIT	LR033080 KIT - INJECTOR REFIT Cylinder No.2	-	1	Enquire
9T527	LR033081	KIT - INJECTOR REFIT	LR033081 KIT - INJECTOR REFIT Cylinder No.1	-	1	Enquire
9U550A	LR022923	INSULATOR - FUEL INJECTORS	LR022923 INSULATOR - FUEL INJECTORS Fuel Injectors, LH Lower	-	1	Enquire
9U550A	LR022925	INSULATOR - FUEL INJECTORS	LR022925 INSULATOR - FUEL INJECTORS Fuel Injectors, RH Lower	-	1	Enquire
9U550B	LR035620	INSULATOR - FUEL INJECTORS	LR035620 INSULATOR - FUEL INJECTORS Fuel Injectors, LH Upper	-	1	Enquire
9U550B	LR022930	INSULATOR - FUEL INJECTORS	LR022930 INSULATOR - FUEL INJECTORS Fuel Injectors, RH Upper	-	1	Enquire
11A604	LR013275	GLOW PLUG	LR013275 GLOW PLUG	-	8	Enquire
