Front Door Glass & Window Controls of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Front Door Glass & Window Controls

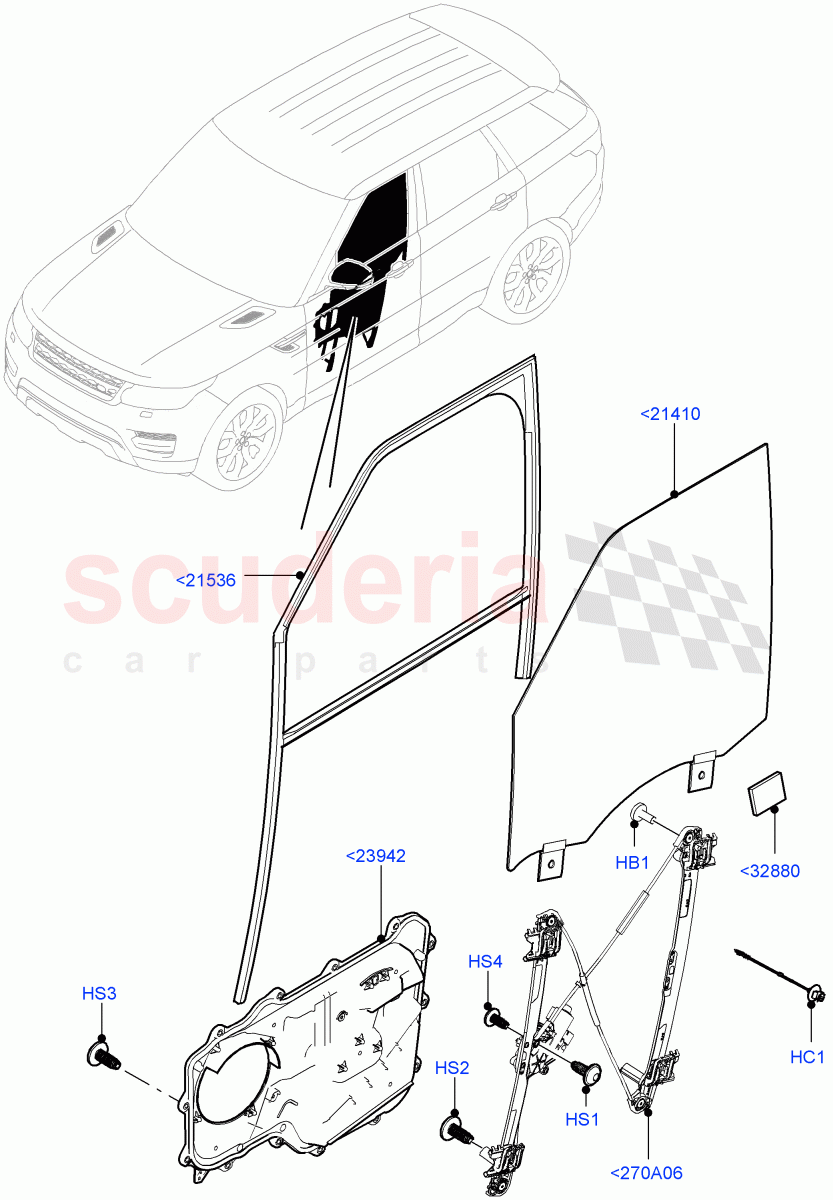

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028083	CLIP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500060	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018267	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033645	SCREW	Enquire	To Order
	LR042471	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500350	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043944	GLASS - DOOR DROP	Enquire	To Order
	LR043946	GLASS - DOOR DROP	Enquire	To Order
	LR043947	GLASS - DOOR DROP	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR043854	RUN - DOOR GLASS	Enquire	To Order
	LR043855	RUN - DOOR GLASS	Enquire	To Order
	LR056335	RUN - DOOR GLASS	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR045817	PANEL - DOOR TRIM	Enquire	To Order
	LR045816	PANEL - DOOR TRIM	Enquire	To Order
	LR110433	PANEL - DOOR TRIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR084524	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043934	REGULATOR - WINDOW	Enquire	To Order
	LR043935	REGULATOR - WINDOW	Enquire	To Order
	LR057338	REGULATOR AND MOTOR - WINDOW	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<270A06	LR043934	REGULATOR - WINDOW	LR043934 REGULATOR - WINDOW RH, Contains Motor Assy / To: EA331883	-	1	Enquire
<270A06	LR043935	REGULATOR - WINDOW	LR043935 REGULATOR - WINDOW LH, Contains Motor Assy / To: EA331883	-	1	Enquire
<270A06	LR057338	REGULATOR AND MOTOR - WINDOW	LR057338 REGULATOR AND MOTOR - WINDOW RH, Contains Motor Assy / From: EA331884 / To: FA539166	-	1	Enquire
<270A06	LR057339	REGULATOR AND MOTOR - WINDOW	LR057339 REGULATOR AND MOTOR - WINDOW LH, Contains Motor Assy / From: EA331884 / To: FA539166	-	1	Enquire
<270A06	LR077816	REGULATOR AND MOTOR - WINDOW	LR077816 REGULATOR AND MOTOR - WINDOW LH, Contains Motor Assy / From: FA539167 / To: MA786827	-	1	Enquire
<270A06	LR077817	REGULATOR AND MOTOR - WINDOW	LR077817 REGULATOR AND MOTOR - WINDOW RH, Contains Motor Assy / From: FA539167 / To: MA786827	-	1	Enquire
<270A06	LR153951	REGULATOR AND MOTOR - WINDOW	LR153951 REGULATOR AND MOTOR - WINDOW RH, Contains Motor Assy / From: MA786828	-	1	Enquire
<270A06	LR153952	REGULATOR AND MOTOR - WINDOW	LR153952 REGULATOR AND MOTOR - WINDOW LH, Contains Motor Assy / From: MA786828	-	1	Enquire
<21410	LR043944	GLASS - DOOR DROP	LR043944 GLASS - DOOR DROP Infra Red Front/Privacy Rear Glass / RH / To: HA999999	-	1	Enquire
<21410	LR043946	GLASS - DOOR DROP	LR043946 GLASS - DOOR DROP Green Tinted Glass All Round / RH / To: HA999999	-	1	Enquire
<21410	LR043947	GLASS - DOOR DROP	LR043947 GLASS - DOOR DROP Infra Red Front/Privacy Rear Glass / LH / To: HA999999	-	1	Enquire
<21410	LR043949	GLASS - DOOR DROP	LR043949 GLASS - DOOR DROP Green Tinted Glass All Round / LH / To: HA999999	-	1	Enquire
<21410	LR043946	GLASS - DOOR DROP	LR043946 GLASS - DOOR DROP Frt/Rr Toughened Glass / RH / From: JA000001 / To: JA999999	-	1	Enquire
<21410	LR043949	GLASS - DOOR DROP	LR043949 GLASS - DOOR DROP Frt/Rr Toughened Glass / LH / From: JA000001 / To: JA999999	-	1	Enquire
<21410	LR100155	GLASS - DOOR DROP	LR100155 GLASS - DOOR DROP Frt Ira Lam Acs/Rr Tough w/Prv Glas / LH / From: JA000001	-	1	Enquire
<21410	LR100156	GLASS - DOOR DROP	LR100156 GLASS - DOOR DROP Frt Infra Lam Acst/Rr Tghnd Glass / RH / From: JA000001 / To: JA999999	-	1	Enquire
<21410	LR100156	GLASS - DOOR DROP	LR100156 GLASS - DOOR DROP Frt Ira Lam Acs/Rr Tough w/Prv Glas / RH / From: JA000001	-	1	Enquire
<21410	LR100155	GLASS - DOOR DROP	LR100155 GLASS - DOOR DROP Frt Infra Lam Acst/Rr Tghnd Glass / LH / From: JA000001 / To: JA999999	-	1	Enquire
<21410	LR043947	GLASS - DOOR DROP	LR043947 GLASS - DOOR DROP Frt Lam Acoustic/Rr Toughened Glass / LH / From: JA000001	-	1	Enquire
<21410	LR043944	GLASS - DOOR DROP	LR043944 GLASS - DOOR DROP Frt Laminated/Rr Tough With Priv Gl / RH / From: JA000001	-	1	Enquire
<21410	LR118392	GLASS - DOOR DROP	LR118392 GLASS - DOOR DROP Frt/Rr Toughened Glass / RH / From: KA000001	-	1	Enquire
<21410	LR118393	GLASS - DOOR DROP	LR118393 GLASS - DOOR DROP Frt Infra Lam Acst/Rr Tghnd Glass / RH / From: KA000001	-	1	Enquire
<21410	LR118394	GLASS - DOOR DROP	LR118394 GLASS - DOOR DROP Frt/Rr Toughened Glass / LH / From: KA000001	-	1	Enquire
<21410	LR118395	GLASS - DOOR DROP	LR118395 GLASS - DOOR DROP Frt Infra Lam Acst/Rr Tghnd Glass / LH / From: KA000001	-	1	Enquire
<21536	LR043854	RUN - DOOR GLASS	LR043854 RUN - DOOR GLASS RH / To: EA315860	-	1	Enquire
<21536	LR043855	RUN - DOOR GLASS	LR043855 RUN - DOOR GLASS LH / To: EA315860	-	1	Enquire
<21536	LR056335	RUN - DOOR GLASS	LR056335 RUN - DOOR GLASS RH / From: EA315861 / To: GA549732	-	1	Enquire
<21536	LR056336	RUN - DOOR GLASS	LR056336 RUN - DOOR GLASS LH / From: EA315861 / To: GA549732	-	1	Enquire
<21536	LR080133	RUN - DOOR GLASS	LR080133 RUN - DOOR GLASS RH / From: GA549733 / To: GA569711	-	1	Enquire
<21536	LR080135	RUN - DOOR GLASS	LR080135 RUN - DOOR GLASS LH / From: GA549733 / To: GA569711	-	1	Enquire
<21536	LR084156	RUN - DOOR GLASS	LR084156 RUN - DOOR GLASS RH / From: GA569712	-	1	Enquire
<21536	LR084157	RUN - DOOR GLASS	LR084157 RUN - DOOR GLASS LH / From: GA569712	-	1	Enquire
<23942	LR045817	PANEL - DOOR TRIM	LR045817 PANEL - DOOR TRIM LH / To: HA180008	-	1	Enquire
<23942	LR045816	PANEL - DOOR TRIM	LR045816 PANEL - DOOR TRIM RH / To: HA180008	-	1	Enquire
<23942	LR110433	PANEL - DOOR TRIM	LR110433 PANEL - DOOR TRIM RH / From: HA180009	-	1	Enquire
<23942	LR110434	PANEL - DOOR TRIM	LR110434 PANEL - DOOR TRIM LH / From: HA180009	-	1	Enquire
<32880	LR084524	PAD	LR084524 PAD Felt Pad - Please Refer To Technical Bulletin LTB00880 For Fitting Details / From: GA577000	-	1	Enquire
HB1	XYG500160	BOLT	XYG500160 BOLT M6 x 12MM, Torx, Window Regulator	-	2	Enquire
HC1	LR028083	CLIP - CABLE	LR028083 CLIP - CABLE Cable Tie, Clip 6 X 6.5 X 1.9 - 2.1	-	1	Enquire
HS1	VYP500060	SCREW	VYP500060 SCREW 4.8 X 16MM, Motor - Window, Torx	-	2	Enquire
HS2	LR018267	SCREW	LR018267 SCREW M6 X 20MM, Torx / To: FA539166	-	2	Enquire
HS3	LR033645	SCREW	LR033645 SCREW Door Trim Panel, M6 X 16MM, Torx	-	13	Enquire
HS3	LR042471	SCREW	LR042471 SCREW Can Be Used If The Current Fixing Is Stripped, M8 X 20MM	-	1	Enquire
HS4	RYP500350	SCREW	RYP500350 SCREW 4.8 X 19MM, Motor - Window, Torx	-	1	Enquire
