Rear Bumper (Non SVR) ((V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Rear Bumper (Non SVR) ((V) TOHA999999)

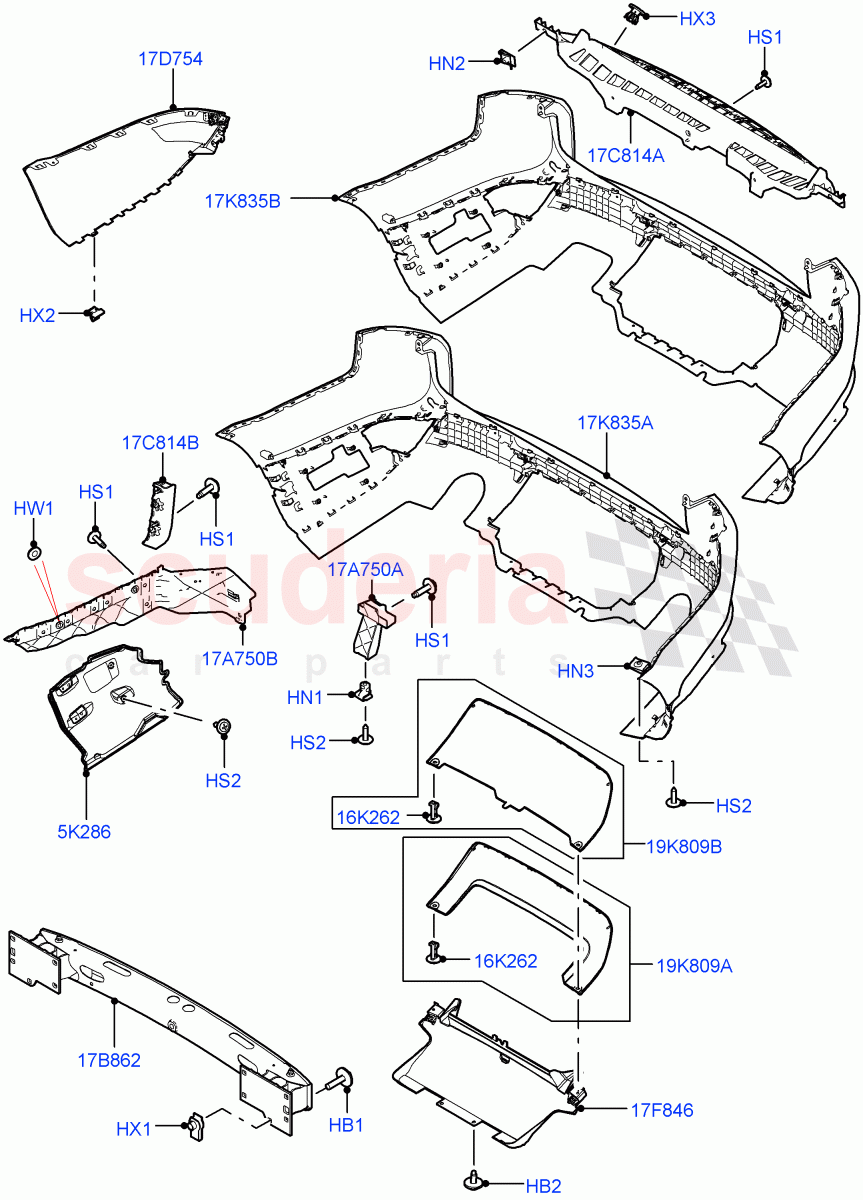

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034249	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR0832229	SCREW AND LOCKWASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165498	NUT - EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027995	NUT	Enquire	To Order
	LR027995	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYH500230	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500320	SCREW	Enquire	To Order
	KYP500320	SCREW	Enquire	To Order
	KYP500320	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106494	SCREW	Enquire	To Order
	LR106494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095074	FOAM BLOCK - BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045228	RETAINER - NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045192	RETAINER - MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005896	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045177	HEAT SHIELD - EXHAUST	Enquire	To Order
	LR045178	HEAT SHIELD - EXHAUST	Enquire	To Order
	LR056349	HEAT SHIELD - EXHAUST	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012844	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043966	REINFORCEMENT - REAR BUMPER	Enquire	To Order
	LR093841	REINFORCEMENT - REAR BUMPER	Enquire	To Order
	LR054330	REINFORCEMENT - REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045184	INSERT - BUMPER	Enquire	To Order
	LR045186	INSERT - BUMPER	Enquire	To Order
	LR045185	INSERT - BUMPER	Enquire	To Order

...and 21 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR045191	UNDERTRAY - TOWBAR	Enquire	To Order
	LR045190	UNDERTRAY - TOWBAR	Enquire	To Order
	LR052990	UNDERTRAY - TOWBAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045179	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045181	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR045182	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR055887	BRACKET - BUMPER MOUNTING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR045180	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045189	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR045188	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR055885	BRACKET - BUMPER MOUNTING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR063195	BUMPER - REAR	Enquire	To Order
	LR063195	BUMPER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087677	BUMPER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045170	COVER - TOWING HOOK OPENING	Enquire	To Order
	LR045171	COVER - TOWING HOOK OPENING	Enquire	To Order
	LR045172	COVER - TOWING HOOK OPENING	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR045175	COVER - TOWING HOOK OPENING	Enquire	To Order
	LR045174	COVER - TOWING HOOK OPENING	Enquire	To Order
	LR045173	COVER - TOWING HOOK OPENING	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR034249	BOLT AND WASHER - HEX.HEAD	LR034249 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 x 37MM	-	10	Enquire
HB2	LR0832229	SCREW AND LOCKWASHER	LR0832229 SCREW AND LOCKWASHER Hexagonal Head, M6 X 13.5MM	-	2	Enquire
HN1	LR165498	NUT - EXPANSION	LR165498 NUT - EXPANSION Plastic, Towing	-	2	Enquire
HN2	LR027995	NUT	LR027995 NUT M6 X 0.7 - 4, Nut "U" Spring, Upper Center	-	2	Enquire
HN2	LR027995	NUT	LR027995 NUT Bracket, M6 X 0.7 - 4, Nut "U" Spring / From: JA000001	-	2	Enquire
HN3	KYH500230	NUT - FLANGED	KYH500230 NUT - FLANGED 4.8MM	-	2	Enquire
HS1	KYP500320	SCREW	KYP500320 SCREW Bolt And Washer, Bracket, M6 x 30MM, Upper Center	-	3	Enquire
HS1	KYP500320	SCREW	KYP500320 SCREW Bolt And Washer, Bracket, M6 x 30MM, Side	-	12	Enquire
HS1	KYP500320	SCREW	KYP500320 SCREW Bolt And Washer, Bracket, M6 x 30MM, Upper Bumper Fixing	-	2	Enquire
HS2	LR106494	SCREW	LR106494 SCREW Heat Shield, M5 x 20MM, Self Tapping	-	4	Enquire
HS2	LR106494	SCREW	LR106494 SCREW Bracket, Lower Centre, M5 x 20MM, Self Tapping	-	1	Enquire
HW1	LR095074	FOAM BLOCK - BUMPER	LR095074 FOAM BLOCK - BUMPER M12	-	4	Enquire
HX1	LR045228	RETAINER - NUT	LR045228 RETAINER - NUT M10, Nut "U" Spring	-	2	Enquire
HX2	LR045192	RETAINER - MOULDING	LR045192 RETAINER - MOULDING Moulding	-	2	Enquire
HX3	LR005896	RETAINER - RIVET	LR005896 RETAINER - RIVET 10 X 4 - 5, Rivet - Push Pin	-	2	Enquire
5K286	LR045177	HEAT SHIELD - EXHAUST	LR045177 HEAT SHIELD - EXHAUST LH / To: EA308674	-	1	Enquire
5K286	LR045178	HEAT SHIELD - EXHAUST	LR045178 HEAT SHIELD - EXHAUST RH / To: EA308674	-	1	Enquire
5K286	LR056349	HEAT SHIELD - EXHAUST	LR056349 HEAT SHIELD - EXHAUST LH / From: EA308675 / To: EA377106	-	1	Enquire
5K286	LR056350	HEAT SHIELD - EXHAUST	LR056350 HEAT SHIELD - EXHAUST RH / From: EA308675 / To: EA377106	-	1	Enquire
5K286	LR065494	HEAT SHIELD	LR065494 HEAT SHIELD 3.0L DOHC GDI SC V6 PETROL / RH, Two Sides Single Exhaust / From: EA377107 / To: HA999999	-	1	Enquire
5K286	LR065493	HEAT SHIELD - EXHAUST	LR065493 HEAT SHIELD - EXHAUST 3.0L DOHC GDI SC V6 PETROL / LH, Two Sides Single Exhaust / From: EA377107 / To: HA999999	-	1	Enquire
5K286	LR065494	HEAT SHIELD	LR065494 HEAT SHIELD 2.0L I4 DSL HIGH DOHC AJ200 / One Side Dual Exhaust, RH Side Only / From: HA000001 / To: HA999999	-	1	Enquire
16K262	LR012844	CLIP - RETAINING	LR012844 CLIP - RETAINING 1/4 Turn Click Type	-	2	Enquire
17A750A	LR045179	BRACKET - BUMPER MOUNTING	LR045179 BRACKET - BUMPER MOUNTING Less Trailer Towing Hitch	-	2	Enquire
17A750B	LR045181	BRACKET - BUMPER MOUNTING	LR045181 BRACKET - BUMPER MOUNTING RH / To: EA308478	-	1	Enquire
17A750B	LR045182	BRACKET - BUMPER MOUNTING	LR045182 BRACKET - BUMPER MOUNTING LH / To: EA308478	-	1	Enquire
17A750B	LR055887	BRACKET - BUMPER MOUNTING	LR055887 BRACKET - BUMPER MOUNTING RH / From: EA308479 / To: GA999999	-	1	Enquire
17A750B	LR055888	BRACKET - BUMPER MOUNTING	LR055888 BRACKET - BUMPER MOUNTING LH / From: EA308479 / To: GA999999	-	1	Enquire
17A750B	LR087705	BRACKET - BUMPER MOUNTING	LR087705 BRACKET - BUMPER MOUNTING RH / From: HA000001	-	1	Enquire
17A750B	LR087706	BRACKET - BUMPER MOUNTING	LR087706 BRACKET - BUMPER MOUNTING LH / From: HA000001	-	1	Enquire
17B862	LR043966	REINFORCEMENT - REAR BUMPER	LR043966 REINFORCEMENT - REAR BUMPER Less Trailer Towing Hitch / To: EA381642	-	1	Enquire
17B862	LR093841	REINFORCEMENT - REAR BUMPER	LR093841 REINFORCEMENT - REAR BUMPER Less Trailer Towing Hitch / From: HA150000	-	1	Enquire
17B862	LR054330	REINFORCEMENT - REAR BUMPER	LR054330 REINFORCEMENT - REAR BUMPER Less Trailer Towing Hitch / From: EA381643 / To: HA149999	-	1	Enquire
17C814A	LR045180	BRACKET - BUMPER MOUNTING	LR045180 BRACKET - BUMPER MOUNTING Upper Center	-	1	Enquire
17C814B	LR045189	BRACKET - BUMPER MOUNTING	LR045189 BRACKET - BUMPER MOUNTING LH, Upper Bumper Fixing / To: EA323258	-	1	Enquire
17C814B	LR045188	BRACKET - BUMPER MOUNTING	LR045188 BRACKET - BUMPER MOUNTING RH, Upper Bumper Fixing / To: EA323258	-	1	Enquire
17C814B	LR055885	BRACKET - BUMPER MOUNTING	LR055885 BRACKET - BUMPER MOUNTING RH, Upper Bumper Fixing / From: EA323259 / To: EA363247	-	1	Enquire
17C814B	LR055886	BRACKET - BUMPER MOUNTING	LR055886 BRACKET - BUMPER MOUNTING LH, Upper Bumper Fixing / From: EA323259 / To: EA363643	-	1	Enquire
17C814B	LR066550	BRACKET - BUMPER MOUNTING	LR066550 BRACKET - BUMPER MOUNTING LH, Upper Bumper Fixing / From: EA363644	-	1	Enquire
17C814B	LR066744	BRACKET - BUMPER MOUNTING	LR066744 BRACKET - BUMPER MOUNTING RH, Upper Bumper Fixing / From: EA363248	-	1	Enquire
17D754	LR045184	INSERT - BUMPER	LR045184 INSERT - BUMPER Less Automated Parking System, Less Park Side Guard, With Rear Bumper Skirt / RH, Black	-	1	Enquire
17D754	LR045186	INSERT - BUMPER	LR045186 INSERT - BUMPER Autom Perpendicular Parking System, With Park Side Flank Guard, With Rear Bumper Skirt / RH, Black	-	1	Enquire
17D754	LR045185	INSERT - BUMPER	LR045185 INSERT - BUMPER Less Automated Parking System, Less Park Side Guard, With Rear Bumper Skirt / LH, Black	-	1	Enquire
17D754	LR045187	INSERT - BUMPER	LR045187 INSERT - BUMPER Autom Perpendicular Parking System, With Park Side Flank Guard, With Rear Bumper Skirt / LH, Black	-	1	Enquire
17D754	LR045263	INSERT - BUMPER	LR045263 INSERT - BUMPER Less Automated Parking System, Rear Bumper Extension - Body Colour / LH, Primed / To: GA999999	-	1	Enquire
17D754	LR045265	INSERT - BUMPER	LR045265 INSERT - BUMPER Autom Perpendicular Parking System, Rear Bumper Extension - Body Colour / LH, Primed / To: GA999999	-	1	Enquire
17D754	LR045259	INSERT - BUMPER	LR045259 INSERT - BUMPER Rear Bumper Lower - R Dynamic, With Automated Parking System / LH, Primed / To: GA123341	-	1	Enquire
17D754	LR045261	INSERT - BUMPER	LR045261 INSERT - BUMPER Autom Perpendicular Parking System, Rear Bumper Lower - R Dynamic / LH, Primed / To: GA123341	-	1	Enquire
17D754	LR045262	INSERT - BUMPER	LR045262 INSERT - BUMPER Less Automated Parking System, Rear Bumper Extension - Body Colour / RH, Primed / To: GA999999	-	1	Enquire
17D754	LR045264	INSERT - BUMPER	LR045264 INSERT - BUMPER Autom Perpendicular Parking System, Rear Bumper Extension - Body Colour / RH, Primed / To: GA999999	-	1	Enquire
17D754	LR045258	INSERT - BUMPER	LR045258 INSERT - BUMPER Rear Bumper Lower - R Dynamic, With Automated Parking System / RH, Primed / To: GA123341	-	1	Enquire
17D754	LR045260	INSERT - BUMPER	LR045260 INSERT - BUMPER Autom Perpendicular Parking System, Rear Bumper Lower - R Dynamic / RH, Primed / To: GA123341	-	1	Enquire
17D754	LR045262	INSERT - BUMPER	LR045262 INSERT - BUMPER Less Automated Parking System, Rr Bmper Extension - Painted Accent / RH, Primed / To: FA627931	-	1	Enquire
17D754	LR045264	INSERT - BUMPER	LR045264 INSERT - BUMPER Autom Perpendicular Parking System, Rr Bmper Extension - Painted Accent / RH, Primed / To: FA627931	-	1	Enquire
17D754	LR045263	INSERT - BUMPER	LR045263 INSERT - BUMPER Less Automated Parking System, Rr Bmper Extension - Painted Accent / LH, Primed / To: FA627931	-	1	Enquire
17D754	LR045265	INSERT - BUMPER	LR045265 INSERT - BUMPER Autom Perpendicular Parking System, Rr Bmper Extension - Painted Accent / LH, Primed / To: FA627931	-	1	Enquire
17D754	LR045260	INSERT - BUMPER	LR045260 INSERT - BUMPER Rear Bumper Lower - R Dynamic, With Park Side Flank Guard / RH, Primed / From: GA123342	-	1	Enquire
17D754	LR045261	INSERT - BUMPER	LR045261 INSERT - BUMPER Rear Bumper Lower - R Dynamic, With Park Side Flank Guard / LH, Primed / From: GA123342	-	1	Enquire
17D754	LR045258	INSERT - BUMPER	LR045258 INSERT - BUMPER Less Park Side Guard, Rear Bumper Lower - R Dynamic / RH, Primed / From: GA123342	-	1	Enquire
17D754	LR045259	INSERT - BUMPER	LR045259 INSERT - BUMPER Less Park Side Guard, Rear Bumper Lower - R Dynamic / LH, Primed / From: GA123342	-	1	Enquire
17D754	LR045265	INSERT - BUMPER	LR045265 INSERT - BUMPER Rear Bumper Extension - Body Colour, With Park Side Flank Guard / LH, Primed / From: HA000001	-	1	Enquire
17D754	LR045264	INSERT - BUMPER	LR045264 INSERT - BUMPER Rear Bumper Extension - Body Colour, With Park Side Flank Guard / RH, Primed / From: HA000001	-	1	Enquire
17D754	LR045262	INSERT - BUMPER	LR045262 INSERT - BUMPER Less Park Side Guard, Rear Bumper Extension - Body Colour / RH, Primed / From: HA000001	-	1	Enquire
17D754	LR045263	INSERT - BUMPER	LR045263 INSERT - BUMPER Less Park Side Guard, Rear Bumper Extension - Body Colour / LH, Primed / From: HA000001	-	1	Enquire
17F846	LR045191	UNDERTRAY - TOWBAR	LR045191 UNDERTRAY - TOWBAR Less Trailer Towing Hitch	-	1	Enquire
17F846	LR045190	UNDERTRAY - TOWBAR	LR045190 UNDERTRAY - TOWBAR Tow Hitch Receiver NAS / To: EA305809	-	1	Enquire
17F846	LR052990	UNDERTRAY - TOWBAR	LR052990 UNDERTRAY - TOWBAR Tow Hitch Receiver NAS / From: EA305810	-	1	Enquire
17K835A	LR063195	BUMPER - REAR	LR063195 BUMPER - REAR Primed, Two Sides Single Exhaust / To: EA360547	-	1	Enquire
17K835A	LR063195	BUMPER - REAR	LR063195 BUMPER - REAR 5.0L OHC SGDI SC V8 Petrol - AJ133 / Primed, Two Sides Single Exhaust / From: EA360548 / To: HA999999	-	1	Enquire
17K835B	LR087677	BUMPER - REAR	LR087677 BUMPER - REAR 2.0L I4 DSL HIGH DOHC AJ200 / One Side Dual Exhaust, Primed / From: HA000001 / To: HA999999	-	1	Enquire
19K809A	LR045170	COVER - TOWING HOOK OPENING	LR045170 COVER - TOWING HOOK OPENING Tow Eye Cover - Self Colour, Tow Hitch Receiver NAS / To: EA332328	-	1	Enquire
19K809A	LR045171	COVER - TOWING HOOK OPENING	LR045171 COVER - TOWING HOOK OPENING Tow Eye Cover - Atlas, Tow Hitch Elec Deployable Swan Neck / Santorini Black / To: EA332328	-	1	Enquire
19K809A	LR045172	COVER - TOWING HOOK OPENING	LR045172 COVER - TOWING HOOK OPENING Tow Eye Cover - Atlas, Tow Hitch Elec Deployable Swan Neck / To: EA332328	-	1	Enquire
19K809A	LR059945	COVER - TOWING HOOK OPENING	LR059945 COVER - TOWING HOOK OPENING Less Extra Pack, Rear Bmp Lower Valance-Indus Silver, Tow Eye Cover - Atlas, Tow Hitch Receiver NAS / From: EA332329 / To: HA999999	-	1	Enquire
19K809A	LR059943	COVER - TOWING HOOK OPENING	LR059943 COVER - TOWING HOOK OPENING Less Extra Pack, Rear Bmp Lwr Valance - Dark Silver, Tow Eye Cover - Self Colour, Tow Hitch Receiver 12 Pin Elec / From: EA332329 / To: HA999999	-	1	Enquire
19K809A	LR059944	COVER - TOWING HOOK OPENING	LR059944 COVER - TOWING HOOK OPENING Less Extra Pack, Tow Eye Cover - Black, Tow Hitch Elec Deployable Swan Neck / From: EA332329 / To: FA999999	-	1	Enquire
19K809A	LR072303	COVER - TOWING HOOK OPENING	LR072303 COVER - TOWING HOOK OPENING Less Extra Pack, Tow Eye Cover - Corris Dynamic, Tow Hitch Receiver 12 Pin Elec / From: GA000001 / To: HA999999	-	1	Enquire
19K809A	LR060318	COVER - TOWING HOOK OPENING	LR060318 COVER - TOWING HOOK OPENING Bumper Lower Valance-Satin Black Wd, Stealth Pack, Tow Eye Cover - Satin Black, Tow Hitch Multi Height Swan Neck / From: FA000001 / To: HA999999	-	1	Enquire
19K809B	LR045175	COVER - TOWING HOOK OPENING	LR045175 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Tow Eye Cover - Atlas / To: EA332328	-	1	Enquire
19K809B	LR045174	COVER - TOWING HOOK OPENING	LR045174 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Tow Eye Cover - Black / To: EA332328	-	1	Enquire
19K809B	LR045173	COVER - TOWING HOOK OPENING	LR045173 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Tow Eye Cover - Self Colour Base / Silver / To: EA332328	-	1	Enquire
19K809B	LR059941	COVER - TOWING HOOK OPENING	LR059941 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Tow Eye Cover - Black / From: EA332329 / To: HA999999	-	1	Enquire
19K809B	LR059942	COVER - TOWING HOOK OPENING	LR059942 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Rear Bmp Lower Valance-Indus Silver, Tow Eye Cover - Atlas / From: EA332329 / To: HA999999	-	1	Enquire
19K809B	LR059946	COVER - TOWING HOOK OPENING	LR059946 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Rear Bmp Lwr Valance - Dark Silver, Tow Eye Cover - Self Colour Base / From: EA332329 / To: HA999999	-	1	Enquire
19K809B	LR060317	COVER - TOWING HOOK OPENING	LR060317 COVER - TOWING HOOK OPENING Bumper Lower Valance-Satin Black Wd, Less Trailer Towing Hitch, Stealth Pack, Tow Eye Cover - Satin Black / From: FA000001 / To: HA999999	-	1	Enquire
19K809B	LR072302	COVER - TOWING HOOK OPENING	LR072302 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Tow Eye Cover - Corris Dynamic / From: GA000001 / To: HA999999	-	1	Enquire
