Engine Mounting (3.0 V6 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Engine Mounting (3.0 V6 Diesel)

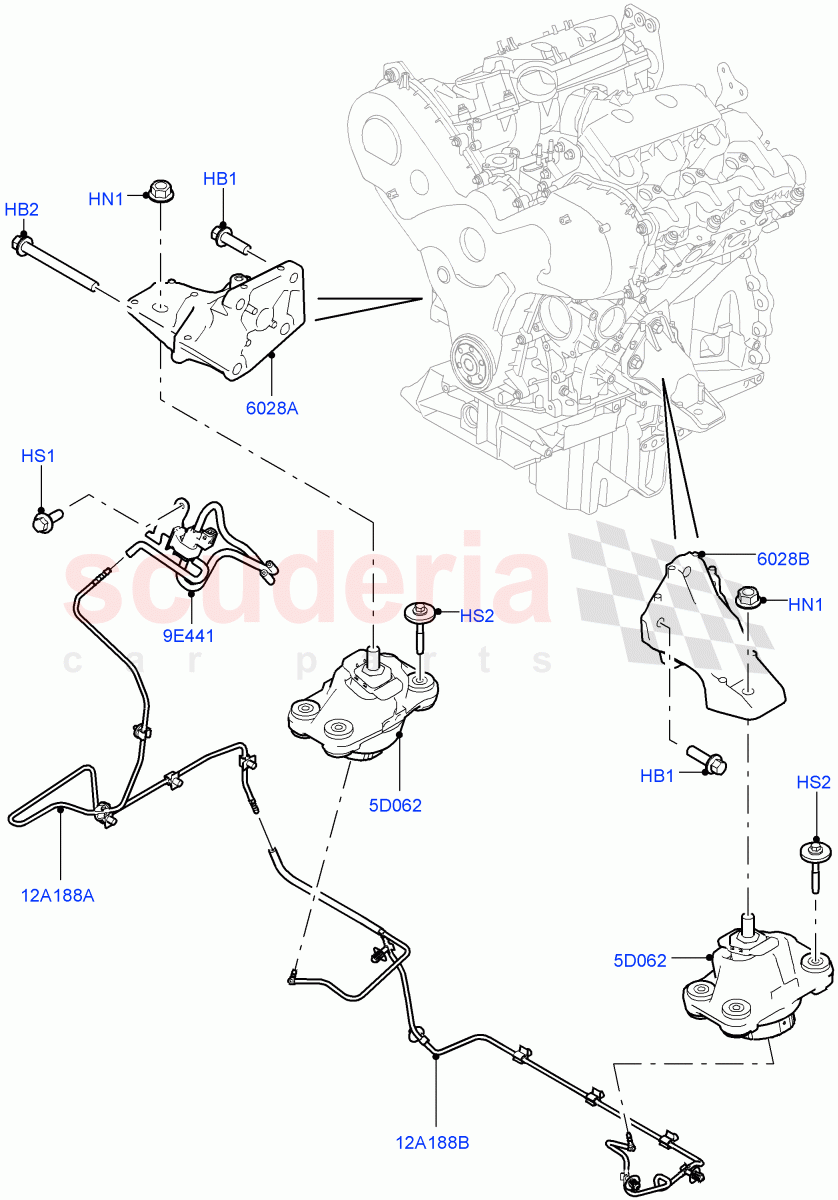

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033199	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033200	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033197	NUT	Enquire	To Order
	LR095134	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033201	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048781	BRACKET - ENGINE MOUNTING	Enquire	To Order
	LR056670	BRACKET - ENGINE MOUNTING	Enquire	To Order
	LR057721	BRACKET - ENGINE MOUNTING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR033181	BRACKET - ENGINE FRONT SUPPORT	Enquire	To Order
	LR122399	BRACKET - ENGINE FRONT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033184	BRACKET - ENGINE FRONT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033194	SOLENOID - VACUUM CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033175	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033167	HOSE - VACUUM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR033199	BOLT	LR033199 BOLT Hexagonal Head, M12 X 42MM	-	6	Enquire
HB2	LR033200	BOLT	LR033200 BOLT Hexagonal Head, M12 x 122MM	-	2	Enquire
HN1	LR033197	NUT	LR033197 NUT M14 / To: HA155354	-	2	Enquire
HN1	LR095134	NUT	LR095134 NUT M14 / From: HA155355	-	2	Enquire
HS1	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM	-	1	Enquire
HS2	LR033201	SCREW	LR033201 SCREW Hexagonal Head, M8 x 60MM	-	8	Enquire
5D062	LR048781	BRACKET - ENGINE MOUNTING	LR048781 BRACKET - ENGINE MOUNTING RH/LH / To: EA312472	-	2	Enquire
5D062	LR056670	BRACKET - ENGINE MOUNTING	LR056670 BRACKET - ENGINE MOUNTING RH/LH / From: EA312473 / To: EA313065	-	2	Enquire
5D062	LR057721	BRACKET - ENGINE MOUNTING	LR057721 BRACKET - ENGINE MOUNTING RH/LH / From: EA313066 / To: EA503853	-	2	Enquire
5D062	LR123907	BRACKET - ENGINE MOUNTING	LR123907 BRACKET - ENGINE MOUNTING RH/LH / From: EA503854 / To: KA421523	-	2	Enquire
5D062	LR123907	BRACKET - ENGINE MOUNTING	LR123907 BRACKET - ENGINE MOUNTING RH/LH / From: KA421524	-	2	Enquire
9E441	LR033194	SOLENOID - VACUUM CONTROL	LR033194 SOLENOID - VACUUM CONTROL	-	1	Enquire
12A188A	LR033175	HOSE - VACUUM	LR033175 HOSE - VACUUM	-	1	Enquire
12A188B	LR033167	HOSE - VACUUM	LR033167 HOSE - VACUUM	-	1	Enquire
6028A	LR033181	BRACKET - ENGINE FRONT SUPPORT	LR033181 BRACKET - ENGINE FRONT SUPPORT RH / To: KA820281	-	1	Enquire
6028A	LR122399	BRACKET - ENGINE FRONT SUPPORT	LR122399 BRACKET - ENGINE FRONT SUPPORT RH / From: KA820282	-	1	Enquire
6028B	LR033184	BRACKET - ENGINE FRONT SUPPORT	LR033184 BRACKET - ENGINE FRONT SUPPORT LH	-	1	Enquire
