Name: Rear Axle (8 Speed Auto Trans ZF 8HP70 HEV 4WD, Torque Vectoring By Braking (TVBB)) ((V) FROMEA000001)
Rating: 5.0 (1 reviews)

Rear Axle (8 Speed Auto Trans ZF 8HP70 HEV 4WD, Torque Vectoring By Braking (TVBB)) ((V) FROMEA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Rear Axle (8 Speed Auto Trans ZF 8HP70 HEV 4WD, Torque Vectoring By Braking (TVBB)) ((V)...

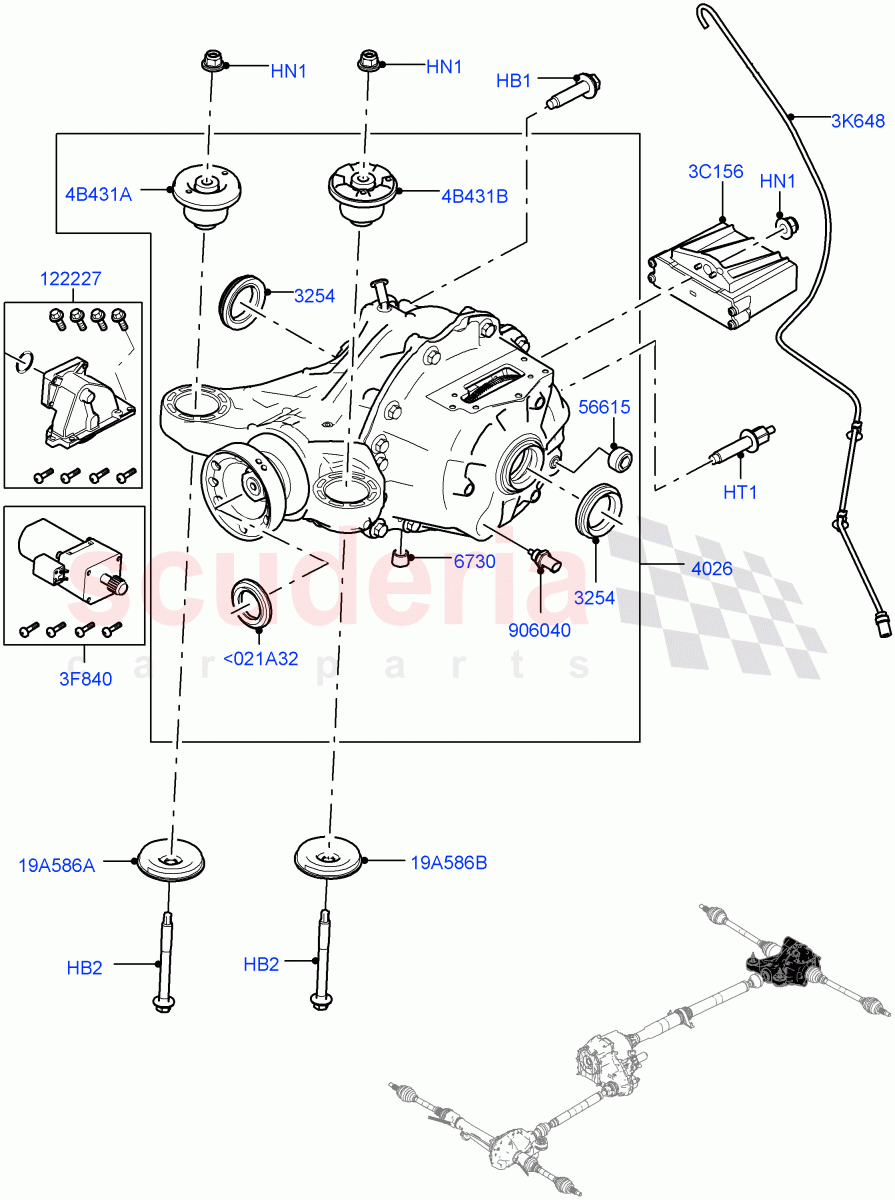

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033214	BOLT	$4.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR024747	BOLT	$3.24	To Order
	LR085983	BOLT	$6.29	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500510	NUT - HEX.	$3.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053501	STUD - THREADED	$8.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158113	SEAL - OIL	$21.80	To Order
	LR158113	SEAL - OIL	$21.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052906	DIFFERENTIAL - REAR	$2,015.76	To Order
	LR052907	DIFFERENTIAL - REAR	$1,813.70	To Order

Photo	Part No	Description	Price (each)	Stock
	TYB500110	PLUG - OIL DRAIN	$4.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058291	DAMPER - DAMPING MASS	$273.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR041966	MOTOR - REAR DIFFERENTIAL	$677.01	To Order
	LR137482	MOTOR - REAR DIFFERENTIAL	$462.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034527	TUBE - BREATHER	$29.62	To Order

Photo	Part No	Description	Price (each)	Stock
	TYB500060	PLUG - FILLER	$3.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043121	HOUSING-DIFFERENTIAL LOCKING MOTOR	$349.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033261	INSULATOR - BUSH TYPE	$22.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033262	INSULATOR - BUSH TYPE	$22.38	To Order

Photo	Part No	Description	Price (each)	Stock
	NSC500590	SENSOR - TRANS. FLUID TEMP. - TFT	$63.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174475	SEAL - OIL	$20.80	To Order
	LR174475	SEAL - OIL	$20.80	To Order
	LR174475	SEAL - OIL	$20.80	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR033211	PLATE - DIFFERENTAL MOUNTING	$34.91	To Order
	LR055252	PLATE - DIFFERENTAL MOUNTING	$33.28	To Order
	LR072608	PLATE - DIFFERENTAL MOUNTING	$28.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033213	PLATE - DIFFERENTAL MOUNTING	$34.91	To Order
	LR055253	PLATE - DIFFERENTAL MOUNTING	$33.28	To Order
	LR072607	PLATE - DIFFERENTAL MOUNTING	$28.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<021A32	LR174475	SEAL - OIL	LR174475 SEAL - OIL Pinion Seal kit / From: EA000001 / To: MA999999	$20.80	1
<021A32	LR174475	SEAL - OIL	LR174475 SEAL - OIL Pinion Seal kit / From: NA700000 / To: NA799999	$20.80	1
<021A32	LR174475	SEAL - OIL	LR174475 SEAL - OIL Pinion Seal kit / From: NA200000 / To: NA206553	$20.80	1
<021A32	LR161976	SEAL - OIL	LR161976 SEAL - OIL Pinion Seal kit / From: NA206554 / To: NA699999	$31.63	1
<021A32	LR161976	SEAL - OIL	LR161976 SEAL - OIL Pinion Seal kit / From: PA000001	$31.63	1
HB1	LR033214	BOLT IN STOCK	LR033214 BOLT Bolt And Washer, Hexagonal Head, M14 X 55MM / From: EA000001 IN STOCK	$4.27	1
HB2	LR024747	BOLT	LR024747 BOLT Hexagonal Head, M12 X 112 / From: EA000001 / To: GA999999	$3.24	2
HB2	LR085983	BOLT	LR085983 BOLT Hexagonal Head, M12 X 114,5 / From: HA000001	$6.29	2
HN1	RYH500510	NUT - HEX.	RYH500510 NUT - HEX. M12, Nut And Washer / From: EA000001	$3.62	3
HT1	LR053501	STUD - THREADED	LR053501 STUD - THREADED M14 X 55 + M8 X 21 / From: EA000001	$8.29	1
3C156	LR058291	DAMPER - DAMPING MASS IN STOCK	LR058291 DAMPER - DAMPING MASS IN STOCK	$273.67	1
3F840	LR041966	MOTOR - REAR DIFFERENTIAL	LR041966 MOTOR - REAR DIFFERENTIAL New Part - Please Check For Remanufactured Version, Service Kit - Motor, Fixing And O-ring / From: EA000001	$677.01	1
3F840	LR137482	MOTOR - REAR DIFFERENTIAL	LR137482 MOTOR - REAR DIFFERENTIAL Remanufactured Part, Service Kit - Motor, Fixing And O-ring / From: EA000001	$462.71	1
3K648	LR034527	TUBE - BREATHER	LR034527 TUBE - BREATHER From: EA000001	$29.62	1
4B431A	LR033261	INSULATOR - BUSH TYPE	LR033261 INSULATOR - BUSH TYPE RH / From: EA000001	$22.38	1
4B431B	LR033262	INSULATOR - BUSH TYPE	LR033262 INSULATOR - BUSH TYPE LH / From: EA000001	$22.38	1
19A586A	LR033211	PLATE - DIFFERENTAL MOUNTING	LR033211 PLATE - DIFFERENTAL MOUNTING RH / To: FA522909	$34.91	1
19A586A	LR055252	PLATE - DIFFERENTAL MOUNTING	LR055252 PLATE - DIFFERENTAL MOUNTING RH / From: FA522910 / To: GA552394	$33.28	1
19A586A	LR072608	PLATE - DIFFERENTAL MOUNTING	LR072608 PLATE - DIFFERENTAL MOUNTING RH / From: GA552395	$28.53	1
19A586B	LR033213	PLATE - DIFFERENTAL MOUNTING	LR033213 PLATE - DIFFERENTAL MOUNTING LH / To: FA522909	$34.91	1
19A586B	LR055253	PLATE - DIFFERENTAL MOUNTING	LR055253 PLATE - DIFFERENTAL MOUNTING LH / From: FA522910 / To: GA552394	$33.28	1
19A586B	LR072607	PLATE - DIFFERENTAL MOUNTING	LR072607 PLATE - DIFFERENTAL MOUNTING LH / From: GA552395	$28.53	1
3254	LR158113	SEAL - OIL	LR158113 SEAL - OIL Driveshaft / From: EA000001 / To: LA999999	$21.80	2
3254	LR158113	SEAL - OIL	LR158113 SEAL - OIL Driveshaft / From: MA000001	$21.80	2
4026	LR052906	DIFFERENTIAL - REAR	LR052906 DIFFERENTIAL - REAR Less Motor And Motor Housing, New Part-Please Check For Reman Version, With Electronic Torque Managed (ETM) Actuator Motor / From: EA000001	$2,015.76	1
4026	LR052907	DIFFERENTIAL - REAR	LR052907 DIFFERENTIAL - REAR Less Motor And Motor Housing, Remanufactured Part, With Electronic Torque Managed (ETM) Actuator Motor / From: EA000001	$1,813.70	1
6730	TYB500110	PLUG - OIL DRAIN	TYB500110 PLUG - OIL DRAIN Drain Plug, Plug - Oil Drain / From: EA000001	$4.31	1
56615	TYB500060	PLUG - FILLER	TYB500060 PLUG - FILLER Filler Plug / From: EA000001	$3.35	1
122227	LR043121	HOUSING-DIFFERENTIAL LOCKING MOTOR	LR043121 HOUSING-DIFFERENTIAL LOCKING MOTOR Service Kit - Reduction Gear Housing, Fixing And O-ring / From: EA000001	$349.78	1
906040	NSC500590	SENSOR - TRANS. FLUID TEMP. - TFT	NSC500590 SENSOR - TRANS. FLUID TEMP. - TFT Sensor - Oil Temperature / From: EA000001	$63.89	1
