Air Suspension Compressor And Lines (Compressor Assy) (With 7 Seat Configuration) ((V) Toha999999)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Air Suspension Compressor And Lines (Compressor Assy) (With 7 Seat Configuration) ((V) TOHA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 Enquire To Order
Photo Part No Description Price (each) Stock
LR038634 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR048340 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
RYH500840 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR035842 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR034035 SCREW - PAN - TORX Enquire To Order
Photo Part No Description Price (each) Stock
LR052964 CONNECTOR - PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR046829 TUBE - AIR SUSPENSION Enquire To Order
Photo Part No Description Price (each) Stock
LR055953 KIT - COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR045734 COMPRESSOR - SUSPENSION LEVELLING Enquire To Order
LR052301 COMPRESSOR - SUSPENSION LEVELLING Enquire To Order
LR069692 Compressor - Suspension Levelling Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR088859 COMPRESSOR - SUSPENSION LEVELLING Enquire To Order
Photo Part No Description Price (each) Stock
LR075759 VALVE - SOLENOID Enquire To Order
Photo Part No Description Price (each) Stock
LR045837 BRACKET - COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR045919 SILENCER - SUSPENSION COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR088858 SILENCER - SUSPENSION COMPRESSOR Enquire To Order
View All

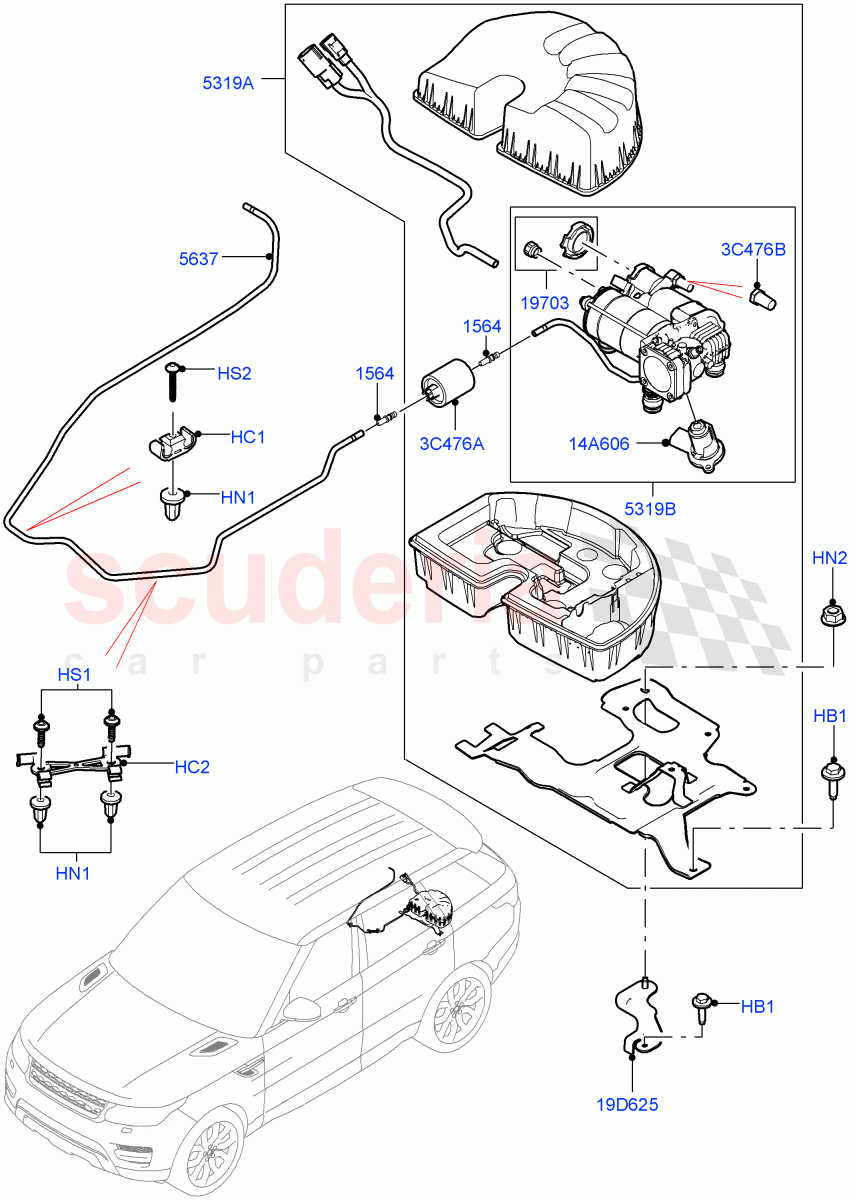

Air Suspension Compressor And Lines (Compressor Assy) (With 7 Seat Configuration) ((V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, HEX Flange, Hexagonal Head, M6 X 24MM 		- 2 Enquire
HC1 LR038634
CLIP - DOUBLE
Double 		- 1 Enquire
HC2 LR048340
CLIP - SPECIAL
Double 		- 1 Enquire
HN1 RYH500840
NUT
M4, Plastic Nut 		- 3 Enquire
HN2 FN108046
NUT - HEX.
Hexagonal Head, M8 		- 1 Enquire
HS1 LR035842
SCREW
4 X 16MM, Torx 		- 2 Enquire
HS2 LR034035
SCREW - PAN - TORX
M4 x 30MM, Torx 		- 1 Enquire
3C476A LR045919
SILENCER - SUSPENSION COMPRESSOR
Air Suspension Lines 		- 1 Enquire
3C476B LR088858
SILENCER - SUSPENSION COMPRESSOR
Compressor Assy 		- 1 Enquire
14A606 LR075759
VALVE - SOLENOID
Solenoid - Air Suspension / From: FA000001 		- 1 Enquire
19D625 LR045837
BRACKET - COMPRESSOR 		- 1 Enquire
1564 LR052964
CONNECTOR - PIPE
Air Suspension Lines 		- 2 Enquire
5319A LR045734
COMPRESSOR - SUSPENSION LEVELLING
To: EA190812 		- 1 Enquire
5319A LR052301
COMPRESSOR - SUSPENSION LEVELLING
From: EA190813 / To: EA396707 		- 1 Enquire
5319A LR069692
Compressor - Suspension Levelling
From: EA396708 / To: FA505127 		- 1 Enquire
5319A LR069693
COMPRESSOR - SUSPENSION LEVELLING
From: FA505128 / To: HA165581 		- 1 Enquire
5319A LR108985
COMPRESSOR - SUSPENSION LEVELLING
From: HA165582 		- 1 Enquire
5319B LR088859
COMPRESSOR - SUSPENSION LEVELLING 		- 1 Enquire
5637 LR046829
TUBE - AIR SUSPENSION
Air Compressor To Valve Block 		- 1 Enquire
19703 LR055953
KIT - COMPRESSOR 		- 1 Enquire
