Air Suspension Compressor And Lines (Air Suspension Lines) (With Four Corner Air Suspension, With Performance Suspension) ((V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Air Suspension Compressor And Lines (Air Suspension Lines) (With Four Corner Air Suspension, With...

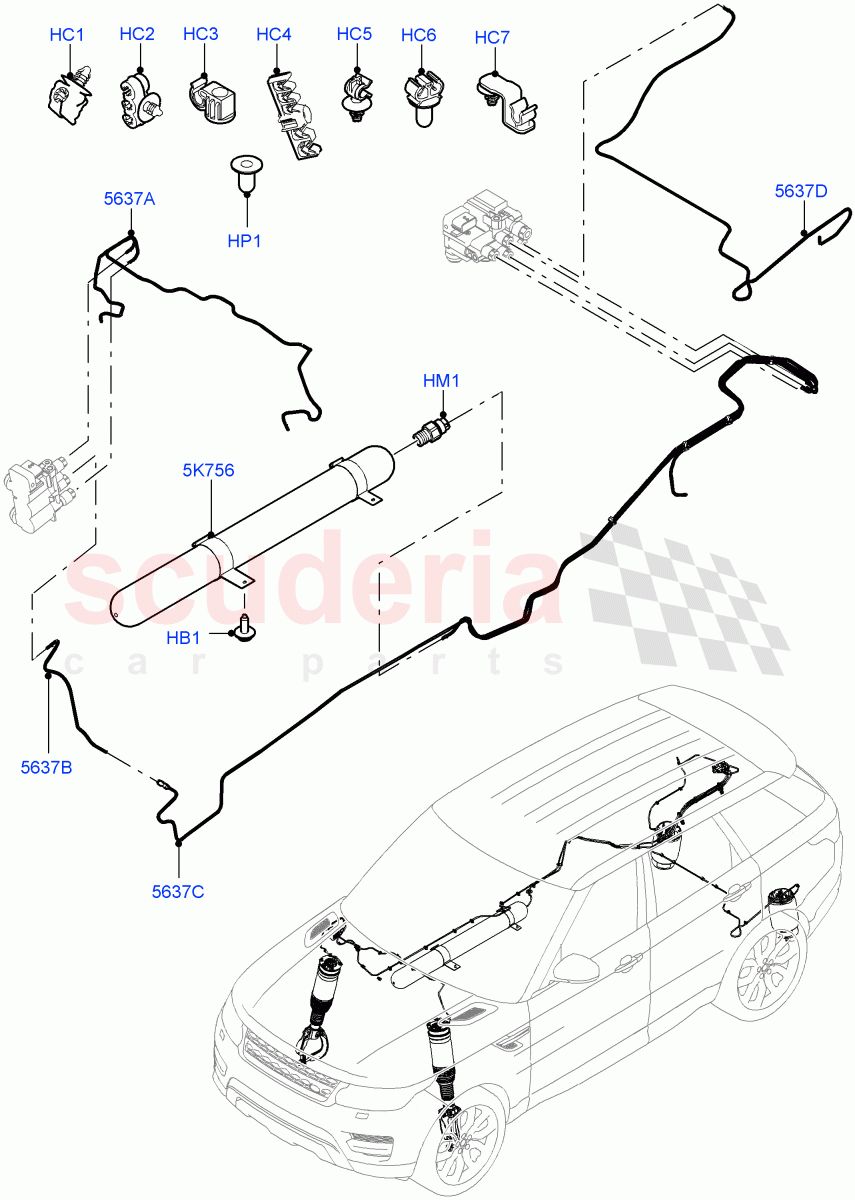

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047326	CLIP - SINGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033442	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035615	CLIP - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047325	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037084	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037085	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039112	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044836	CONNECTOR - VALVE BLOCK TO PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037086	PLUG - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037074	TUBE - AIR SUSPENSION	Enquire	To Order
	LR061613	TUBE - AIR SUSPENSION	Enquire	To Order
	LR083998	TUBE - AIR SUSPENSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR045737	AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045736	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045738	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045311	TANK - AIR SUSPENSION	Enquire	To Order
	LR087513	TANK - AIR SUSPENSION	Enquire	To Order
	LR087513	TANK - AIR SUSPENSION	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM	-	4	Enquire
HC1	LR047326	CLIP - SINGLE	LR047326 CLIP - SINGLE Single	-	3	Enquire
HC2	LR033442	CLIP - SPECIAL	LR033442 CLIP - SPECIAL 5MM, Triple	-	3	Enquire
HC3	LR035615	CLIP - PIPE	LR035615 CLIP - PIPE 6MM, Single	-	4	Enquire
HC4	LR047325	CLIP - SPECIAL	LR047325 CLIP - SPECIAL 5 Way	-	2	Enquire
HC5	LR037084	CLIP - HOSE	LR037084 CLIP - HOSE 6MM, Single	-	9	Enquire
HC6	LR037085	CLIP - DOUBLE	LR037085 CLIP - DOUBLE 6MM, Double	-	2	Enquire
HC7	LR039112	CLIP	LR039112 CLIP Single	-	1	Enquire
HM1	LR044836	CONNECTOR - VALVE BLOCK TO PIPE	LR044836 CONNECTOR - VALVE BLOCK TO PIPE 6MM, Air Tube Connector	-	1	Enquire
HP1	LR037086	PLUG - SPECIAL	LR037086 PLUG - SPECIAL 8.5MM	-	1	Enquire
5K756	LR045311	TANK - AIR SUSPENSION	LR045311 TANK - AIR SUSPENSION Air Suspension, Includes Air Tube Connector, With Bracket / To: EA311895	-	1	Enquire
5K756	LR087513	TANK - AIR SUSPENSION	LR087513 TANK - AIR SUSPENSION Air Suspension, Includes Air Tube Connector, With Bracket / From: EA311896 / To: GA102539	-	1	Enquire
5K756	LR087513	TANK - AIR SUSPENSION	LR087513 TANK - AIR SUSPENSION 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Air Suspension, Includes Air Tube Connector, With Bracket / From: GA102540 / To: GA123320	-	1	Enquire
5K756	LR084040	TANK - AIR SUSPENSION	LR084040 TANK - AIR SUSPENSION 8 Speed Auto Trans ZF 8HP70 4WD / Air Suspension, Includes Air Tube Connector, With Bracket / From: GA102540	-	1	Enquire
5K756	LR087513	TANK - AIR SUSPENSION	LR087513 TANK - AIR SUSPENSION 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Air Suspension, Includes Air Tube Connector, With Bracket / From: GA123321	-	1	Enquire
5637A	LR037074	TUBE - AIR SUSPENSION	LR037074 TUBE - AIR SUSPENSION Axle Valve To Front LH Spring, Axle Valve To Front RH Spring, Set Of 2 Pieces / To: EA375451	-	1	Enquire
5637A	LR061613	TUBE - AIR SUSPENSION	LR061613 TUBE - AIR SUSPENSION Axle Valve To Front LH Spring, Axle Valve To Front RH Spring, Set Of 2 Pieces / From: EA375452 / To: GA999999	-	1	Enquire
5637A	LR083998	TUBE - AIR SUSPENSION	LR083998 TUBE - AIR SUSPENSION Axle Valve To Front LH Spring, Axle Valve To Front RH Spring, Set Of 2 Pieces / From: HA000001 / To: HA134182	-	1	Enquire
5637A	LR101732	TUBE - AIR SUSPENSION	LR101732 TUBE - AIR SUSPENSION Axle Valve To Front LH Spring, Axle Valve To Front RH Spring, Set Of 2 Pieces / From: HA134183	-	1	Enquire
5637B	LR045737	AIR SUSPENSION	LR045737 AIR SUSPENSION Rear Axle Valve To Front Axle Valve	-	1	Enquire
5637C	LR045736	TUBE - AIR SUSPENSION	LR045736 TUBE - AIR SUSPENSION Axle Valve To Rear RH Spring, Axle Valve To Reservoir Tank, Rear Axle Valve To Front Axle Valve, Set Of 3 Pieces	-	1	Enquire
5637D	LR045738	TUBE - AIR SUSPENSION	LR045738 TUBE - AIR SUSPENSION Axle Valve To Rear LH Spring	-	1	Enquire
