Vacuum Control And Air Injection (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Vacuum Control And Air Injection (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
LR110501 PUMP - OIL & VACUUM $575.83 To Order
Photo Part No Description Price (each) Stock
LR081604 GROMMET - BRAKE PIPE $5.73 To Order
Photo Part No Description Price (each) Stock
LR100932 HOSE - VACUUM CONTROL HARNESS $228.02 To Order
LR112113 HOSE - VACUUM CONTROL HARNESS $218.73 To Order
Photo Part No Description Price (each) Stock
LR138047 BRACKET - HOSE $44.87 To Order
Photo Part No Description Price (each) Stock
LR137621 CAP - BLANKING $22.11 To Order
Photo Part No Description Price (each) Stock
LR100574 CONNECTOR - VACUUM TUBE $27.47 To Order
LR148201 CONNECTOR - VACUUM TUBE $51.53 To Order
View All

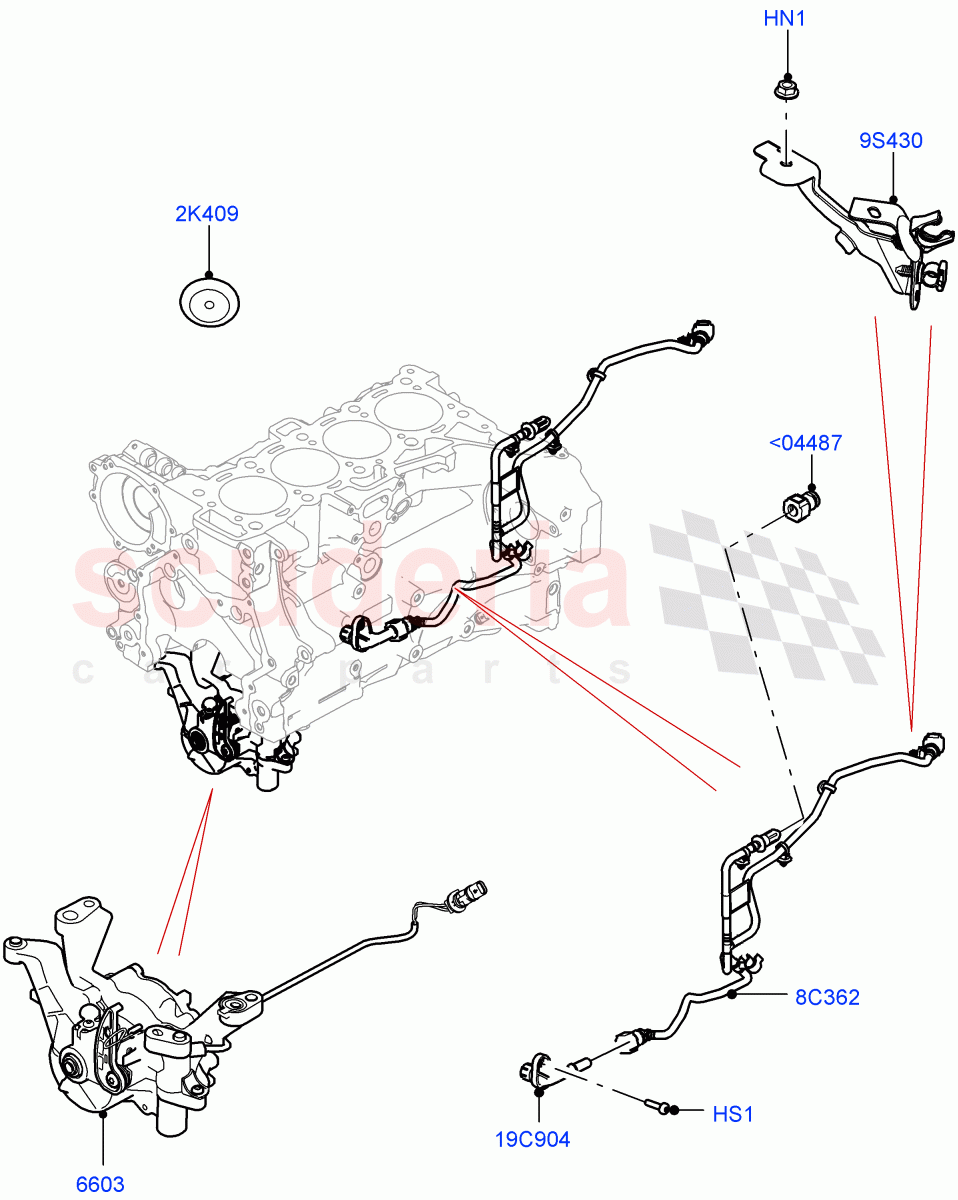

Vacuum Control And Air Injection (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<04487 LR137621
CAP - BLANKING
From: JA000001 		$22.11 1
HN1 FN106046
NUT - HEX.
Bracket, Hexagonal Head, M6 / From: JA000001
IN STOCK 		$1.45 1
HS1 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: JA000001 		$1.36 1
2K409 LR081604
GROMMET - BRAKE PIPE
From: JA000001 		$5.73 1
8C362 LR100932
HOSE - VACUUM CONTROL HARNESS
To Vacuum Pump / From: JA000001 / To: JA189720 		$228.02 1
8C362 LR112113
HOSE - VACUUM CONTROL HARNESS
To Vacuum Pump / From: JA189721 		$218.73 1
9S430 LR138047
BRACKET - HOSE
From: JA000001 		$44.87 1
19C904 LR100574
CONNECTOR - VACUUM TUBE
From: JA000001 / To: MA759114 		$27.47 1
19C904 LR148201
CONNECTOR - VACUUM TUBE
From: MA759115 		$51.53 1
6603 LR110501
PUMP - OIL & VACUUM
From: JA000001 		$575.83 1
