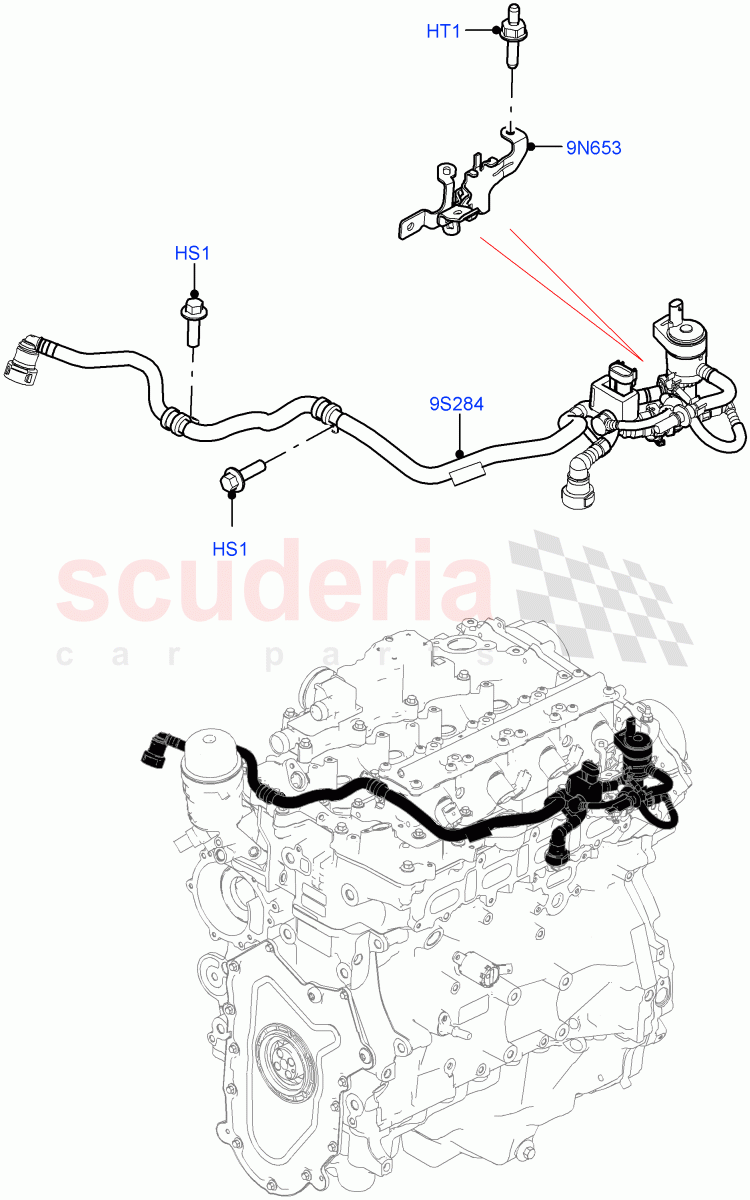

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126845	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: MA000001	-	2	Enquire
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm / From: MA000001	-	1	Enquire
9N653	LR126845	BRACKET - FUEL TUBE SUPPORT	LR126845 BRACKET - FUEL TUBE SUPPORT From: MA000001	-	1	Enquire
9S284	LR127869	TUBE - FUEL VAPOUR	LR127869 TUBE - FUEL VAPOUR From: MA000001 / To: MA999999	-	1	Enquire
9S284	LR127869	TUBE - FUEL VAPOUR	LR127869 TUBE - FUEL VAPOUR From: NA700000 / To: NA799999	-	1	Enquire
9S284	LR127869	TUBE - FUEL VAPOUR	LR127869 TUBE - FUEL VAPOUR From: NA200000 / To: NA207380	-	1	Enquire
9S284	LR162696	TUBE - FUEL VAPOUR	LR162696 TUBE - FUEL VAPOUR From: NA207381 / To: NA699999	-	1	Enquire
9S284	LR162696	TUBE - FUEL VAPOUR	LR162696 TUBE - FUEL VAPOUR From: PA000001	-	1	Enquire
