Name: Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, LHD) ((V) FROMJA000001)
Rating: 4.5 (1 reviews)

Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, LHD) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, LHD) ((V)...

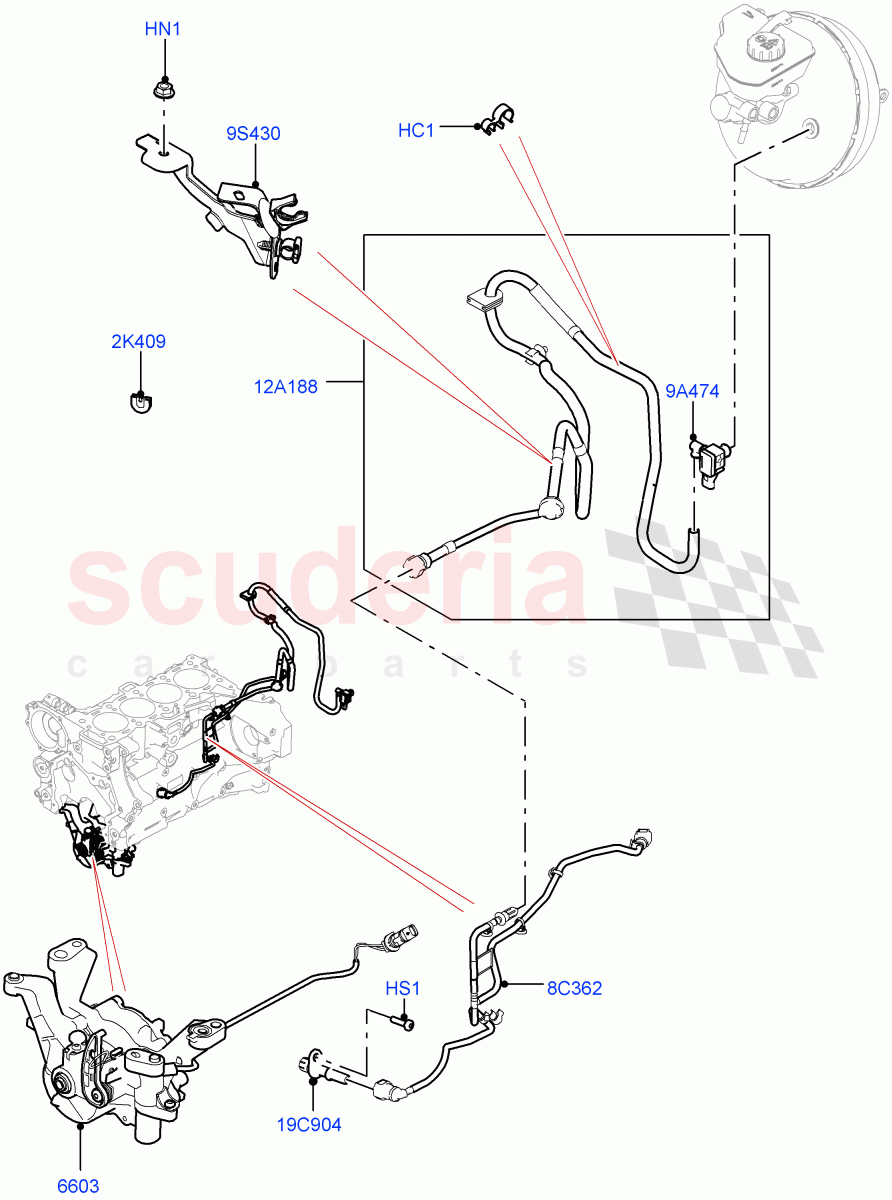

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR049402	CLIP - DOUBLE	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110501	PUMP - OIL & VACUUM	$575.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081604	GROMMET - BRAKE PIPE	$5.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100577	HOSE - VACUUM CONTROL HARNESS	$224.74	To Order
	LR112246	HOSE - VACUUM CONTROL HARNESS	$224.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081631	SENSOR - VACUUM	$85.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138047	BRACKET - HOSE	$44.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099160	HOSE - VACUUM	$183.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073665	CONNECTOR - VACUUM TUBE	$12.16	To Order
	LR148195	CONNECTOR - VACUUM TUBE	$26.47	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR049402	CLIP - DOUBLE	LR049402 CLIP - DOUBLE Double / From: JA000001	$2.63	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Bracket, Hexagonal Head, M6 / From: JA000001 IN STOCK	$1.45	1
HS1	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: JA000001	$1.36	1
2K409	LR081604	GROMMET - BRAKE PIPE	LR081604 GROMMET - BRAKE PIPE From: JA000001	$5.73	1
8C362	LR100577	HOSE - VACUUM CONTROL HARNESS	LR100577 HOSE - VACUUM CONTROL HARNESS To Vacuum Pump / From: JA000001 / To: JA999999	$224.74	1
8C362	LR112246	HOSE - VACUUM CONTROL HARNESS	LR112246 HOSE - VACUUM CONTROL HARNESS To Vacuum Pump / From: KA000001	$224.74	1
9A474	LR081631	SENSOR - VACUUM	LR081631 SENSOR - VACUUM From: JA000001	$85.39	1
9S430	LR138047	BRACKET - HOSE	LR138047 BRACKET - HOSE From: JA000001	$44.87	1
12A188	LR099160	HOSE - VACUUM	LR099160 HOSE - VACUUM To Brake Booster / From: JA000001	$183.77	1
19C904	LR073665	CONNECTOR - VACUUM TUBE	LR073665 CONNECTOR - VACUUM TUBE Cylinder Block, Pump - Vacuum / From: JA000001 / To: MA759114	$12.16	1
19C904	LR148195	CONNECTOR - VACUUM TUBE	LR148195 CONNECTOR - VACUUM TUBE Cylinder Block, Pump - Vacuum / From: MA759115	$26.47	1
6603	LR110501	PUMP - OIL & VACUUM	LR110501 PUMP - OIL & VACUUM From: JA000001	$575.83	1
