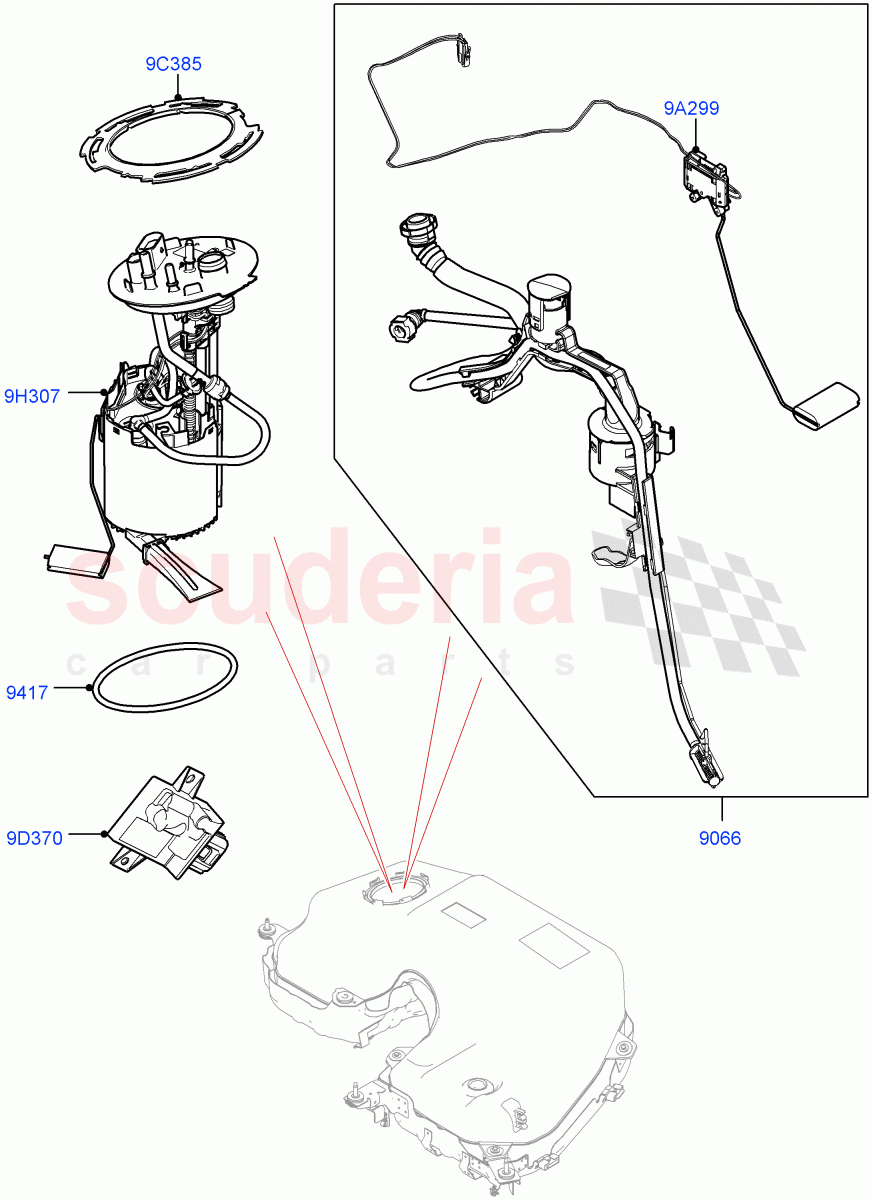

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088560	SENSOR - FUEL LEVEL	$332.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.05	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	LR086518	SENDER - FUEL TANK	$141.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082729	RING - RETAINING	$25.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088562	SENDER AND PUMP	$600.62	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
9A299	LR086518	SENDER - FUEL TANK	LR086518 SENDER - FUEL TANK From: HA000001	$141.93	1
9C385	LR082729	RING - RETAINING	LR082729 RING - RETAINING From: HA000001	$25.88	1
9D370	LR172880	CONTROL - FUEL PUMP DRIVE	LR172880 CONTROL - FUEL PUMP DRIVE From: HA000001 / To: MA787852	$222.55	1
9D370	LR153984	CONTROL - FUEL PUMP DRIVE	LR153984 CONTROL - FUEL PUMP DRIVE From: MA787853	$215.03	1
9H307	LR088562	SENDER AND PUMP	LR088562 SENDER AND PUMP From: HA000001	$600.62	1
9066	LR088560	SENSOR - FUEL LEVEL	LR088560 SENSOR - FUEL LEVEL From: HA000001	$332.66	1
9417	LR117476	GASKET ARRIVING SOON	LR117476 GASKET O-Ring / From: HA000001 ARRIVING SOON	$10.05	1
