Fuel Injectors And Pipes (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Fuel Injectors And Pipes (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC...

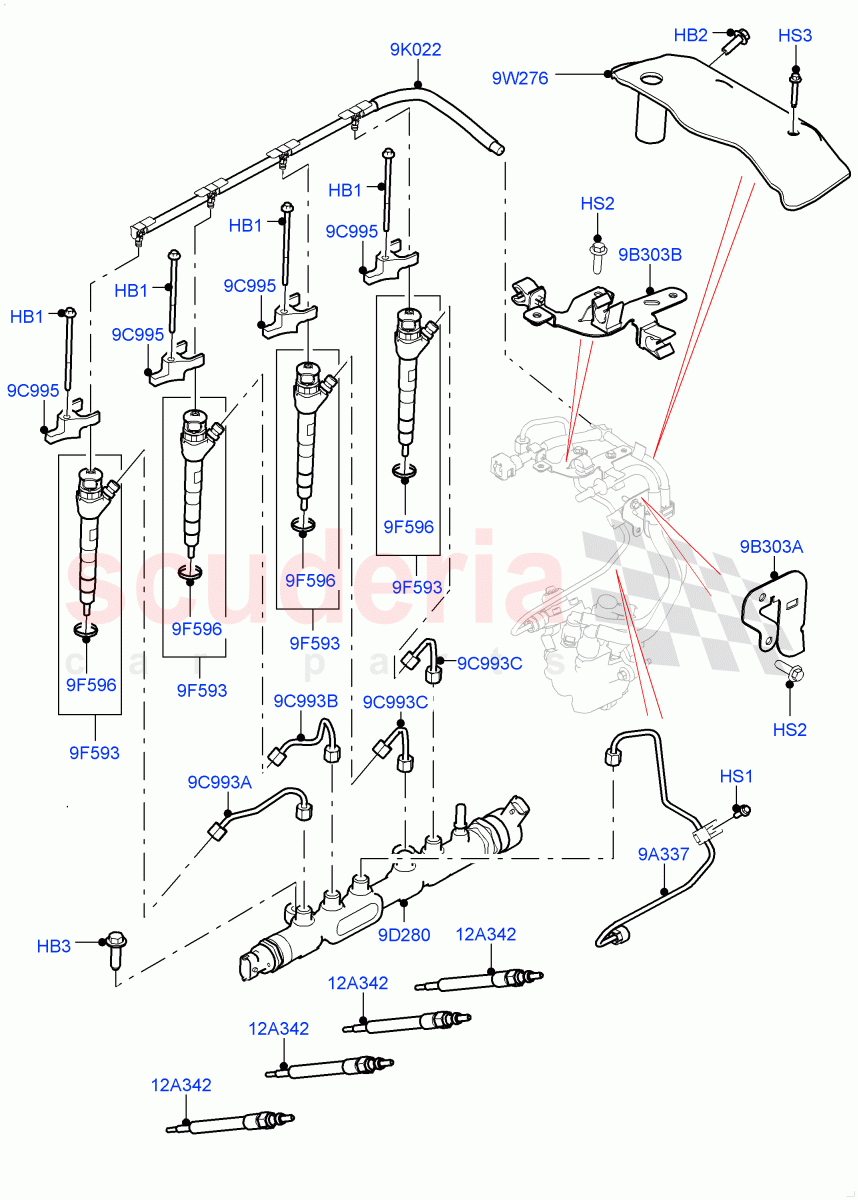

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073719	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074133	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082282	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500310	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073707	TUBE - FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073696	CLAMP - FUEL INJECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082273	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082276	INJECTOR - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093848	WASHER - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082275	TUBE - LEAK OFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082281	SHIELD - FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073727	GLOW PLUG	Enquire	To Order
	LR116117	GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082265	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087239	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073702	PIPE - FUEL INJECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073703	PIPE - FUEL INJECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073704	PIPE - FUEL INJECTION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR073719	BOLT	LR073719 BOLT M6 X 115 / From: HA000001	-	4	Enquire
HB2	LR074133	BOLT	LR074133 BOLT M10 X 30MM, Shield / From: HA000001	-	1	Enquire
HB3	LR082282	BOLT	LR082282 BOLT Fuel Rail, M8 x 35mm / From: HA000001	-	2	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: HA000001	-	1	Enquire
HS2	LR071774	SCREW	LR071774 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: HA000001	-	3	Enquire
HS3	RYG500310	SCREW	RYG500310 SCREW M6 x 35MM, Shield / From: HA000001	-	1	Enquire
9A337	LR073707	TUBE - FUEL PUMP	LR073707 TUBE - FUEL PUMP From: HA000001	-	1	Enquire
9B303A	LR082265	BRACKET - FUEL TUBE SUPPORT	LR082265 BRACKET - FUEL TUBE SUPPORT For Fuel Tube / From: HA000001	-	1	Enquire
9B303B	LR087239	BRACKET - FUEL TUBE SUPPORT	LR087239 BRACKET - FUEL TUBE SUPPORT For Fuel Tube / From: HA000001	-	1	Enquire
9C993A	LR073702	PIPE - FUEL INJECTION	LR073702 PIPE - FUEL INJECTION Cylinder No.1 / From: HA000001	-	1	Enquire
9C993B	LR073703	PIPE - FUEL INJECTION	LR073703 PIPE - FUEL INJECTION Cylinder No.2 / From: HA000001	-	1	Enquire
9C993C	LR073704	PIPE - FUEL INJECTION	LR073704 PIPE - FUEL INJECTION Cylinder No.3, Cylinder No.4 / From: HA000001	-	2	Enquire
9C995	LR073696	CLAMP - FUEL INJECTION	LR073696 CLAMP - FUEL INJECTION From: HA000001	-	4	Enquire
9D280	LR082273	MANIFOLD - FUEL SUPPLY	LR082273 MANIFOLD - FUEL SUPPLY 2.0L I4 DSL HIGH DOHC AJ200 / From: HA000001	-	1	Enquire
9F593	LR082276	INJECTOR - FUEL	LR082276 INJECTOR - FUEL 2.0L I4 DSL HIGH DOHC AJ200 / From: HA000001	-	4	Enquire
9F596	LR093848	WASHER - SEALING	LR093848 WASHER - SEALING From: HA000001	-	4	Enquire
9K022	LR082275	TUBE - LEAK OFF	LR082275 TUBE - LEAK OFF 2.0L I4 DSL HIGH DOHC AJ200 / Leak Off / From: HA000001	-	1	Enquire
9W276	LR082281	SHIELD - FUEL PUMP	LR082281 SHIELD - FUEL PUMP Heat Shield / From: HA000001	-	1	Enquire
12A342	LR073727	GLOW PLUG	LR073727 GLOW PLUG From: HA000001 / To: JA187904	-	4	Enquire
12A342	LR116117	GLOW PLUG	LR116117 GLOW PLUG From: JA187905	-	4	Enquire
