Front Susp.Arms/Stabilizer/X-Member (Less Roll Stability Control, Less ACE Suspension) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

View All

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Front Susp.Arms/Stabilizer/X-Member (Less Roll Stability Control, Less ACE Suspension) ((V)...

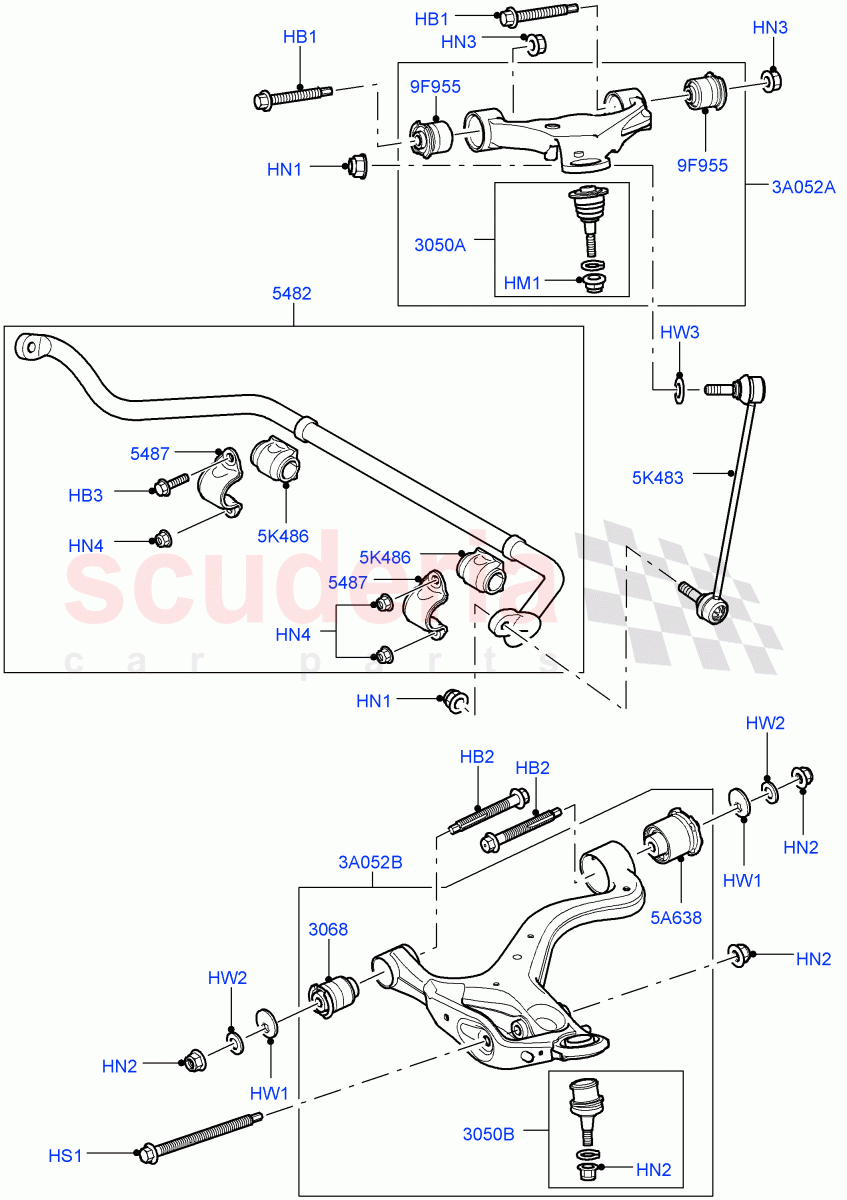

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG000420	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RDI000032	BOLT	Enquire	To Order
	RDI000034	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order
	FY112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX116057	NUT - FLANGED	Enquire	To Order
	FX116056	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX114057	NUT	Enquire	To Order
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG000440	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF000202	WASHER	Enquire	To Order
	RYF000203	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA116101	Washer	Enquire	To Order
	WA116106	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF500120	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBX500432	BUSH - FRONT SUSPENSION ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBL500660	BAR - ROLL	Enquire	To Order
	RBL500740	BAR - ROLL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBU000271	CLAMP	Enquire	To Order
	RBU500100	CLAMP - RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBK500170	JOINT - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBK500180	JOINT - BALL	Enquire	To Order
	RBK500240	JOINT - BALL	Enquire	To Order
	RBK500300	JOINT - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055291	BUSH - FRONT SUSPENSION ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBM500140	LINK	Enquire	To Order
	RBM500150	LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBX500280	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051625	BUSH - SUSPENSION ARM	Enquire	To Order
	LR051625	BUSH - SUSPENSION ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBJ500840	ARM - FRONT SUSPENSION	Enquire	To Order
	RBJ500850	ARM - FRONT SUSPENSION	Enquire	To Order
	LR026095	ARM - FRONT SUSPENSION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RBJ501390	ARM - FRONT SUSPENSION	Enquire	To Order
	RBJ500446	ARM - FRONT SUSPENSION	Enquire	To Order
	RBJ500456	ARM - FRONT SUSPENSION	Enquire	To Order

...and 11 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG000420	BOLT	RYG000420 BOLT M14 X 80MM	-	4	Enquire
HB2	RDI000032	BOLT	RDI000032 BOLT M16 / To: 5A909232	-	4	Enquire
HB2	RDI000034	BOLT	RDI000034 BOLT M16 X 120MM / From: 5A909233	-	4	Enquire
HB3	RYP501080	BOLT	RYP501080 BOLT M12 x 25MM	-	1	Enquire
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12 X 1.75MM / To: 7A108443	-	2	Enquire
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12 / From: 7A108444	-	2	Enquire
HN1	FY114056	NUT - HEX.	FY114056 NUT - HEX. M14	-	4	Enquire
HN2	FX116057	NUT - FLANGED	FX116057 NUT - FLANGED M16 / To: 7A108443	-	6	Enquire
HN2	FX116056	NUT - FLANGED	FX116056 NUT - FLANGED M16 / From: 7A108444	-	6	Enquire
HN3	FX114057	NUT	FX114057 NUT M14 / To: 7A108443	-	4	Enquire
HN3	FY114056	NUT - HEX.	FY114056 NUT - HEX. Hexagonal Head, M14 / From: 7A108444	-	4	Enquire
HN4	FX112056	NUT - HEX.	FX112056 NUT - HEX. HEX Flange, M12	-	3	Enquire
HS1	RYG000440	BOLT	RYG000440 BOLT M16 X 200MM	-	2	Enquire
HW1	RYF000202	WASHER	RYF000202 WASHER Adjusting / To: 6A999999	-	4	Enquire
HW1	RYF000203	WASHER	RYF000203 WASHER Adjusting / From: 7A000001	-	4	Enquire
HW2	WA116101	Washer	WA116101 Washer 17 X 30 X 3 / To: 7A108443	-	4	Enquire
HW2	WA116106	WASHER	WA116106 WASHER 17 X 30 X 3 / From: 7A108444	-	4	Enquire
HW3	RYF500120	WASHER	RYF500120 WASHER 14.2 X 24 X 2.3	-	4	Enquire
3A052A	RBJ500840	ARM - FRONT SUSPENSION	RBJ500840 ARM - FRONT SUSPENSION RH / From: 9A000001 / To: 9A001000	-	1	Enquire
3A052A	RBJ500850	ARM - FRONT SUSPENSION	RBJ500850 ARM - FRONT SUSPENSION LH / To: 8A999999	-	1	Enquire
3A052A	LR026095	ARM - FRONT SUSPENSION	LR026095 ARM - FRONT SUSPENSION RH / To: 8A999999	-	1	Enquire
3A052A	LR051617	ARM - FRONT SUSPENSION	LR051617 ARM - FRONT SUSPENSION RH / From: 9A001001	-	1	Enquire
3A052A	LR051618	ARM - FRONT SUSPENSION	LR051618 ARM - FRONT SUSPENSION LH / From: 9A000001 / To: 9A001000	-	1	Enquire
3A052A	LR074838	ARM - FRONT SUSPENSION	LR074838 ARM - FRONT SUSPENSION LH / From: 9A001001	-	1	Enquire
3A052B	RBJ501390	ARM - FRONT SUSPENSION	RBJ501390 ARM - FRONT SUSPENSION AJ Petrol 4.4 V8 EFI (220KW) / LH / From: 8A135963 / To: 9A199376	-	1	Enquire
3A052B	RBJ500446	ARM - FRONT SUSPENSION	RBJ500446 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / RH / To: 6A999999	-	1	Enquire
3A052B	RBJ500456	ARM - FRONT SUSPENSION	RBJ500456 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / LH / To: 6A999999	-	1	Enquire
3A052B	RBJ501280	ARM - FRONT SUSPENSION	RBJ501280 ARM - FRONT SUSPENSION AJ Petrol 4.4 V8 EFI (220KW) / RH / From: 7A000001 / To: 8A135962	-	1	Enquire
3A052B	RBJ501380	ARM - FRONT SUSPENSION	RBJ501380 ARM - FRONT SUSPENSION AJ Petrol 4.4 V8 EFI (220KW) / RH / From: 8A135963 / To: 9A199376	-	1	Enquire
3A052B	RBJ501290	ARM - FRONT SUSPENSION	RBJ501290 ARM - FRONT SUSPENSION AJ Petrol 4.4 V8 EFI (220KW) / LH / From: 7A000001 / To: 8A135962	-	1	Enquire
3A052B	RBJ501600	ARM - FRONT SUSPENSION	RBJ501600 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / RH, For Use With 35MM Joint Assy Ball Only / From: 9A208831 / To: 9A213352	-	1	Enquire
3A052B	RBJ501610	ARM - FRONT SUSPENSION	RBJ501610 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / LH, For Use With 35MM Joint Assy Ball Only / From: 9A208831 / To: 9A213352	-	1	Enquire
3A052B	RBJ501500	ARM - FRONT SUSPENSION	RBJ501500 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / RH, For Use With 35MM Joint Assy Ball Only / From: 9A199377 / To: 9A208830	-	1	Enquire
3A052B	RBJ501510	ARM - FRONT SUSPENSION	RBJ501510 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / LH, For Use With 35MM Joint Assy Ball Only / From: 9A199377 / To: 9A208830	-	1	Enquire
3A052B	LR029304	ARM - FRONT SUSPENSION	LR029304 ARM - FRONT SUSPENSION Lion Diesel 2.7 V6 (140KW) / RH, For Use With 35MM Joint Assy Ball Only / From: 9A214160	-	1	Enquire
3A052B	LR029306	ARM - FRONT SUSPENSION	LR029306 ARM - FRONT SUSPENSION Lion Diesel 2.7 V6 (140KW) / LH, For Use With 35MM Joint Assy Ball Only / From: 9A214160	-	1	Enquire
3A052B	LR028252	ARM - FRONT SUSPENSION	LR028252 ARM - FRONT SUSPENSION Lion Diesel 2.7 V6 (140KW) / LH, For Use With 35MM Joint Assy Ball Only / From: 9A213353 / To: 9A214159	-	1	Enquire
3A052B	LR028248	ARM - FRONT SUSPENSION	LR028248 ARM - FRONT SUSPENSION Lion Diesel 2.7 V6 (140KW) / RH, For Use With 35MM Joint Assy Ball Only / From: 9A213353 / To: 9A214159	-	1	Enquire
5A638	LR055291	BUSH - FRONT SUSPENSION ARM	LR055291 BUSH - FRONT SUSPENSION ARM Hydrabush, Lower, Rear	-	2	Enquire
5K483	RBM500140	LINK	RBM500140 LINK RH	-	1	Enquire
5K483	RBM500150	LINK	RBM500150 LINK LH	-	1	Enquire
5K486	RBX500280	BUSH	RBX500280 BUSH Front stabilizer	-	2	Enquire
9F955	LR051625	BUSH - SUSPENSION ARM	LR051625 BUSH - SUSPENSION ARM Front / Rear, Upper / To: 8A999999	-	4	Enquire
9F955	LR051625	BUSH - SUSPENSION ARM	LR051625 BUSH - SUSPENSION ARM Front / Rear, Upper / From: 9A000001	-	4	Enquire
3050A	RBK500170	JOINT - BALL	RBK500170 JOINT - BALL Includes Circlip, Upper	-	2	Enquire
3050B	RBK500180	JOINT - BALL	RBK500180 JOINT - BALL Includes Circlip, Lower / To: 9A199376	-	2	Enquire
3050B	RBK500240	JOINT - BALL	RBK500240 JOINT - BALL 35MM Joint Assy - Ball, Includes Circlip, Lower / From: 9A199377 / To: 9A208830	-	1	Enquire
3050B	RBK500300	JOINT - BALL	RBK500300 JOINT - BALL 35MM Joint Assy - Ball, Includes Circlip, Lower / From: 9A208831	-	1	Enquire
3068	RBX500432	BUSH - FRONT SUSPENSION ARM	RBX500432 BUSH - FRONT SUSPENSION ARM Front, Lower	-	2	Enquire
5482	RBL500660	BAR - ROLL	RBL500660 BAR - ROLL To: 5A909232	-	1	Enquire
5482	RBL500740	BAR - ROLL	RBL500740 BAR - ROLL From: 5A909233	-	1	Enquire
5487	RBU000271	CLAMP	RBU000271 CLAMP To: 5A909232	-	2	Enquire
5487	RBU500100	CLAMP - RUBBER BUSH	RBU500100 CLAMP - RUBBER BUSH From: 5A909233	-	2	Enquire
