Active Anti-Roll Bar System (Rear, Stabilizer Bar) (With Roll Stability Control, With ACE Suspension) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

View All

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Active Anti-Roll Bar System (Rear, Stabilizer Bar) (With Roll Stability Control, With ACE...

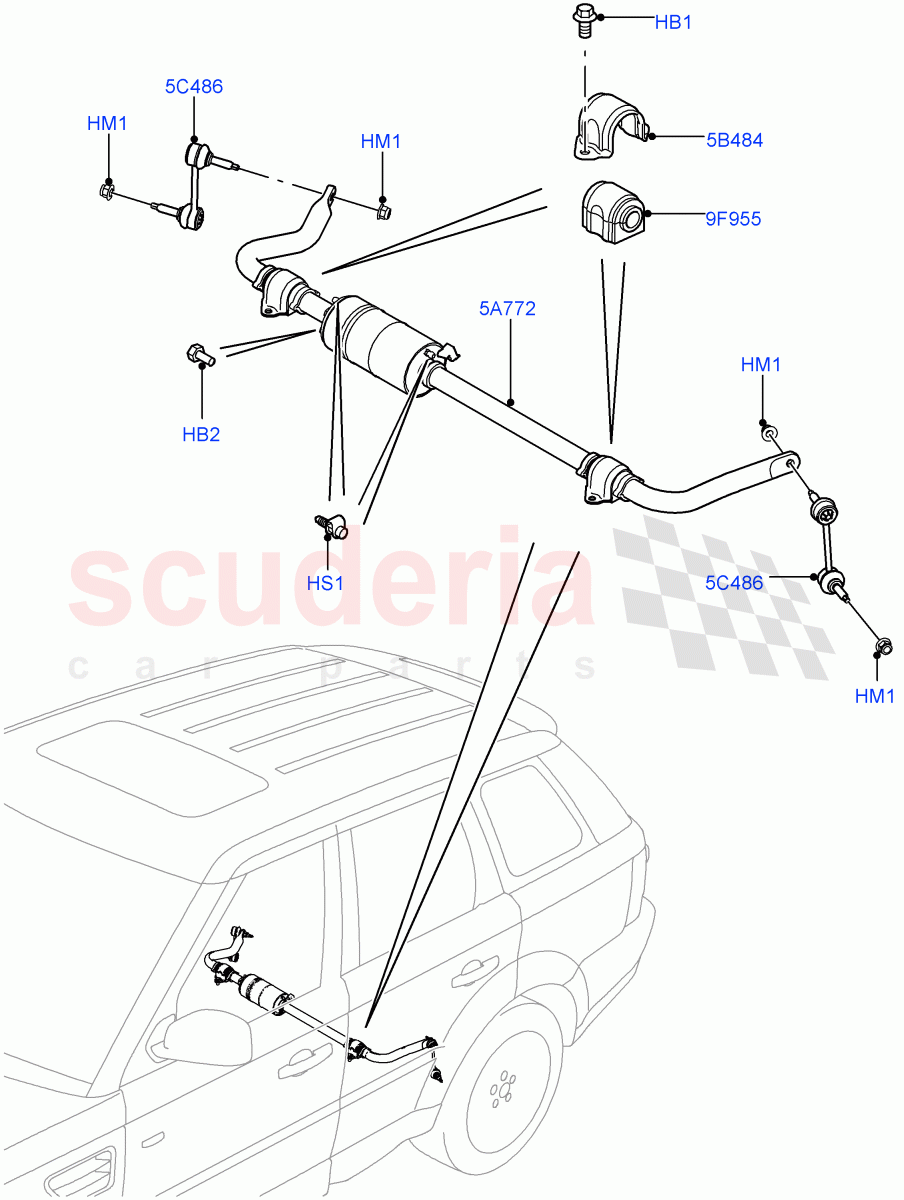

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FT110207	BOLT	Enquire	To Order
	FT110206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500090	BOLT (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500030	SCREW (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQK500081	BAR - STABILIZER	Enquire	To Order
	RQK500082	BAR - ROLL	Enquire	To Order
	RQK500083	BAR - ROLL	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RBU000281	CLAMP - RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RGD500140	LINK - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RVU000022	BUSH (NON HAZ)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FT110207	BOLT	FT110207 BOLT M10 X 20MM / To: 7A108443	-	4	Enquire
HB1	FT110206	BOLT	FT110206 BOLT M10 X 20MM / From: 7A108444	-	4	Enquire
HB2	RYG500090	BOLT (NON HAZ)	RYG500090 BOLT (NON HAZ) HEX Flange, M12	-	6	Enquire
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12 X 1.75MM	-	4	Enquire
HS1	RYP500030	SCREW (NON HAZ)	RYP500030 SCREW (NON HAZ) Bleeder Screw	-	2	Enquire
5A772	RQK500081	BAR - STABILIZER	RQK500081 BAR - STABILIZER AJ Petrol 4.2 V8 Supercharged / Includes Insulators And Clamps / To: 6A919815	-	1	Enquire
5A772	RQK500082	BAR - ROLL	RQK500082 BAR - ROLL AJ Petrol 4.4 V8 EFI (220KW) / Includes Insulators And Clamps / From: 6A919816 / To: 6A968686	-	1	Enquire
5A772	RQK500083	BAR - ROLL	RQK500083 BAR - ROLL AJ Petrol 4.4 V8 EFI (220KW) / Includes Insulators And Clamps / From: 6A968687 / To: 9A194475	-	1	Enquire
5A772	RQK500130	BAR - ROLL	RQK500130 BAR - ROLL AJ Petrol 4.2 V8 Supercharged / Includes Insulators And Clamps / From: 9A194476 / To: 9A215614	-	1	Enquire
5A772	LR018309	BAR - ROLL	LR018309 BAR - ROLL AJ Petrol 4.2 V8 Supercharged / Includes Insulators And Clamps / From: 9A215615	-	1	Enquire
5A772	LR018310	BAR - ROLL	LR018310 BAR - ROLL 3.6L V8 32V DOHC EFi Diesel Lion / Includes Insulators And Clamps / From: 9A215615	-	1	Enquire
5A772	RQK500100	BAR - REAR STABILIZER	RQK500100 BAR - REAR STABILIZER 3.6L V8 32V DOHC EFi Diesel Lion / Includes Insulators And Clamps / To: 6A964493	-	1	Enquire
5A772	RQK500120	ACTUATOR	RQK500120 ACTUATOR 3.6L V8 32V DOHC EFi Diesel Lion / Includes Insulators And Clamps / From: 6A964494 / To: 9A194475	-	1	Enquire
5A772	RQK500160	BAR - ROLL	RQK500160 BAR - ROLL 3.6L V8 32V DOHC EFi Diesel Lion / Includes Insulators And Clamps / From: 9A194476 / To: 9A215614	-	1	Enquire
5B484	RBU000281	CLAMP - RUBBER BUSH	RBU000281 CLAMP - RUBBER BUSH Stabilizer Bar	-	2	Enquire
5C486	RGD500140	LINK - STABILIZER BAR	RGD500140 LINK - STABILIZER BAR	-	2	Enquire
9F955	RVU000022	BUSH (NON HAZ)	RVU000022 BUSH (NON HAZ) Stabilizer Bar	-	2	Enquire
