Front Susp.Arms/Stabilizer/X-Member (With Roll Stability Control, With ACE Suspension) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

View All

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Front Susp.Arms/Stabilizer/X-Member (With Roll Stability Control, With ACE Suspension) ((V)...

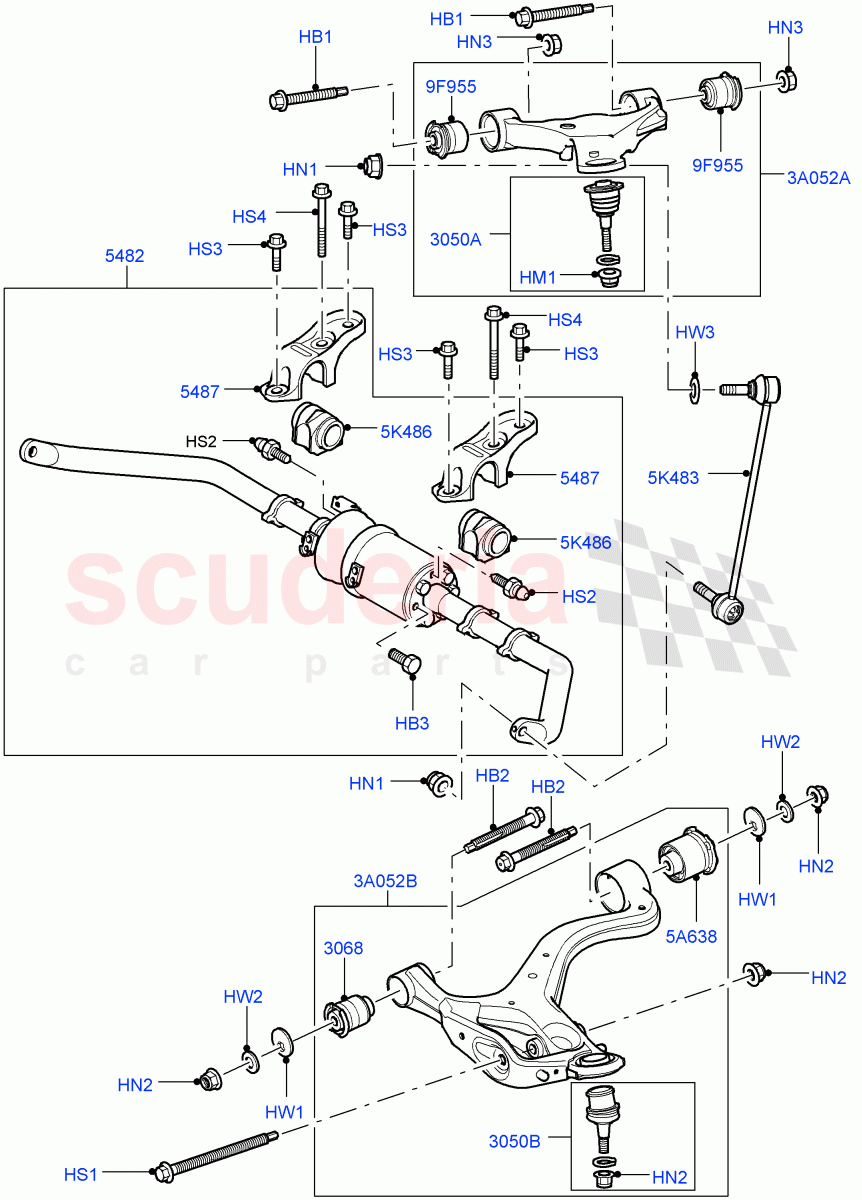

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG000420	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RDI000032	BOLT	Enquire	To Order
	RDI000034	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500090	BOLT (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order
	FY112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX116057	NUT - FLANGED	Enquire	To Order
	FX116056	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX114057	NUT	Enquire	To Order
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG000440	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500030	SCREW (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501120	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501110	SCREW	Enquire	To Order
	RYP501110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF000202	WASHER	Enquire	To Order
	RYF000203	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA116101	Washer	Enquire	To Order
	WA116106	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF500120	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBX500432	BUSH - FRONT SUSPENSION ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQK500090	BAR - ROLL	Enquire	To Order
	RQK500091	BAR ASSY - ROLL	Enquire	To Order
	RQK500110	ACTUATOR	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RBU500041	BRACKET	Enquire	To Order
	RBU500042	BRACKET - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBK500170	JOINT - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBK500180	JOINT - BALL	Enquire	To Order
	RBK500240	JOINT - BALL	Enquire	To Order
	RBK500300	JOINT - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055291	BUSH - FRONT SUSPENSION ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBM500140	LINK	Enquire	To Order
	RBM500150	LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RVU500010	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051625	BUSH - SUSPENSION ARM	Enquire	To Order
	LR051625	BUSH - SUSPENSION ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBJ500840	ARM - FRONT SUSPENSION	Enquire	To Order
	RBJ500850	ARM - FRONT SUSPENSION	Enquire	To Order
	LR026095	ARM - FRONT SUSPENSION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RBJ500446	ARM - FRONT SUSPENSION	Enquire	To Order
	RBJ500456	ARM - FRONT SUSPENSION	Enquire	To Order
	RBJ501000	ARM - FRONT SUSPENSION	Enquire	To Order

...and 23 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG000420	BOLT	RYG000420 BOLT M14 X 80MM	-	4	Enquire
HB2	RDI000032	BOLT	RDI000032 BOLT M16 / To: 5A909232	-	4	Enquire
HB2	RDI000034	BOLT	RDI000034 BOLT M16 X 120MM / From: 5A909233	-	4	Enquire
HB3	RYG500090	BOLT (NON HAZ)	RYG500090 BOLT (NON HAZ) HEX Flange, M12	-	12	Enquire
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12 X 1.75MM / To: 7A108443	-	2	Enquire
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12 / From: 7A108444	-	2	Enquire
HN1	FY114056	NUT - HEX.	FY114056 NUT - HEX. M14	-	4	Enquire
HN2	FX116057	NUT - FLANGED	FX116057 NUT - FLANGED M16 / To: 7A108443	-	6	Enquire
HN2	FX116056	NUT - FLANGED	FX116056 NUT - FLANGED M16 / From: 7A108444	-	6	Enquire
HN3	FX114057	NUT	FX114057 NUT M14 / To: 7A108443	-	4	Enquire
HN3	FY114056	NUT - HEX.	FY114056 NUT - HEX. Hexagonal Head, M14 / From: 7A108444	-	4	Enquire
HS1	RYG000440	BOLT	RYG000440 BOLT M16 X 200MM	-	2	Enquire
HS2	RYP500030	SCREW (NON HAZ)	RYP500030 SCREW (NON HAZ) Bleeder Screw	-	2	Enquire
HS3	RYP501120	SCREW	RYP501120 SCREW M12 x 40MM	-	4	Enquire
HS4	RYP501110	SCREW	RYP501110 SCREW M12 x 80MM / To: 6A999999	-	2	Enquire
HS4	RYP501110	SCREW	RYP501110 SCREW M12, M12 x 85MM / From: 7A000001	-	2	Enquire
HW1	RYF000202	WASHER	RYF000202 WASHER Adjusting / To: 6A999999	-	4	Enquire
HW1	RYF000203	WASHER	RYF000203 WASHER Adjusting / From: 7A000001	-	4	Enquire
HW2	WA116101	Washer	WA116101 Washer 17 X 30 X 3 / To: 7A108443	-	4	Enquire
HW2	WA116106	WASHER	WA116106 WASHER 17 X 30 X 3 / From: 7A108444	-	4	Enquire
HW3	RYF500120	WASHER	RYF500120 WASHER 14.2 X 24 X 2.3	-	4	Enquire
3A052A	RBJ500840	ARM - FRONT SUSPENSION	RBJ500840 ARM - FRONT SUSPENSION RH / From: 9A000001 / To: 9A001000	-	1	Enquire
3A052A	RBJ500850	ARM - FRONT SUSPENSION	RBJ500850 ARM - FRONT SUSPENSION LH / To: 8A999999	-	1	Enquire
3A052A	LR026095	ARM - FRONT SUSPENSION	LR026095 ARM - FRONT SUSPENSION RH / To: 8A999999	-	1	Enquire
3A052A	LR051617	ARM - FRONT SUSPENSION	LR051617 ARM - FRONT SUSPENSION RH / From: 9A001001	-	1	Enquire
3A052A	LR051618	ARM - FRONT SUSPENSION	LR051618 ARM - FRONT SUSPENSION LH / From: 9A000001 / To: 9A001000	-	1	Enquire
3A052A	LR074838	ARM - FRONT SUSPENSION	LR074838 ARM - FRONT SUSPENSION LH / From: 9A001001	-	1	Enquire
3A052B	RBJ500446	ARM - FRONT SUSPENSION	RBJ500446 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / RH / To: 6A999999	-	1	Enquire
3A052B	RBJ500456	ARM - FRONT SUSPENSION	RBJ500456 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / LH / To: 6A999999	-	1	Enquire
3A052B	RBJ501000	ARM - FRONT SUSPENSION	RBJ501000 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / RH / From: 7A000001 / To: 8A144114	-	1	Enquire
3A052B	RBJ501010	ARM - FRONT SUSPENSION	RBJ501010 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / LH / From: 7A000001 / To: 8A144114	-	1	Enquire
3A052B	RBJ501410	ARM - FRONT SUSPENSION	RBJ501410 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / LH / From: 8A144115 / To: 9A199404	-	1	Enquire
3A052B	RBJ501390	ARM - FRONT SUSPENSION	RBJ501390 ARM - FRONT SUSPENSION AJ Petrol 4.4 V8 EFI (220KW) / LH / From: 8A135963 / To: 9A199376	-	1	Enquire
3A052B	RBJ501400	ARM - FRONT SUSPENSION	RBJ501400 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / RH / From: 8A144115 / To: 9A199404	-	1	Enquire
3A052B	RBJ501280	ARM - FRONT SUSPENSION	RBJ501280 ARM - FRONT SUSPENSION AJ Petrol 4.4 V8 EFI (220KW) / RH / From: 7A000001 / To: 8A135962	-	1	Enquire
3A052B	RBJ501380	ARM - FRONT SUSPENSION	RBJ501380 ARM - FRONT SUSPENSION AJ Petrol 4.4 V8 EFI (220KW) / RH / From: 8A135963 / To: 9A199376	-	1	Enquire
3A052B	RBJ501290	ARM - FRONT SUSPENSION	RBJ501290 ARM - FRONT SUSPENSION AJ Petrol 4.4 V8 EFI (220KW) / LH / From: 7A000001 / To: 8A135962	-	1	Enquire
3A052B	RBJ501590	ARM - FRONT SUSPENSION	RBJ501590 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / LH, For Use With 35MM Joint Assy Ball Only / From: 9A208831 / To: 9A213352	-	1	Enquire
3A052B	RBJ501580	ARM - FRONT SUSPENSION	RBJ501580 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / RH, For Use With 35MM Joint Assy Ball Only / From: 9A208831 / To: 9A213352	-	1	Enquire
3A052B	RBJ501600	ARM - FRONT SUSPENSION	RBJ501600 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / RH, For Use With 35MM Joint Assy Ball Only / From: 9A208831 / To: 9A213352	-	1	Enquire
3A052B	RBJ501610	ARM - FRONT SUSPENSION	RBJ501610 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / LH, For Use With 35MM Joint Assy Ball Only / From: 9A208831 / To: 9A213352	-	1	Enquire
3A052B	RBJ501520	ARM - FRONT SUSPENSION	RBJ501520 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / RH, For Use With 35MM Joint Assy Ball Only / From: 9A199405 / To: 9A208830	-	1	Enquire
3A052B	RBJ501500	ARM - FRONT SUSPENSION	RBJ501500 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / RH, For Use With 35MM Joint Assy Ball Only / From: 9A199377 / To: 9A208830	-	1	Enquire
3A052B	RBJ501530	ARM - FRONT SUSPENSION	RBJ501530 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / LH, For Use With 35MM Joint Assy Ball Only / From: 9A199405 / To: 9A208830	-	1	Enquire
3A052B	RBJ501510	ARM - FRONT SUSPENSION	RBJ501510 ARM - FRONT SUSPENSION AJ Petrol 4.2 V8 Supercharged / LH, For Use With 35MM Joint Assy Ball Only / From: 9A199377 / To: 9A208830	-	1	Enquire
3A052B	LR028247	ARM - FRONT SUSPENSION	LR028247 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / RH, For Use With 35MM Joint Assy Ball Only / From: 9A213353 / To: 9A214159	-	1	Enquire
3A052B	LR028248	ARM - FRONT SUSPENSION	LR028248 ARM - FRONT SUSPENSION Lion Diesel 2.7 V6 (140KW) / RH, For Use With 35MM Joint Assy Ball Only / From: 9A213353 / To: 9A214159	-	1	Enquire
3A052B	LR029305	ARM - FRONT SUSPENSION	LR029305 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / LH, For Use With 35MM Joint Assy Ball Only / From: 9A213353 / To: 9A214159	-	1	Enquire
3A052B	LR028252	ARM - FRONT SUSPENSION	LR028252 ARM - FRONT SUSPENSION Lion Diesel 2.7 V6 (140KW) / LH, For Use With 35MM Joint Assy Ball Only / From: 9A213353 / To: 9A214159	-	1	Enquire
3A052B	LR029303	ARM - FRONT SUSPENSION	LR029303 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / RH, For Use With 35MM Joint Assy Ball Only / From: 9A214160	-	1	Enquire
3A052B	LR029304	ARM - FRONT SUSPENSION	LR029304 ARM - FRONT SUSPENSION Lion Diesel 2.7 V6 (140KW) / RH, For Use With 35MM Joint Assy Ball Only / From: 9A214160	-	1	Enquire
3A052B	LR029305	ARM - FRONT SUSPENSION	LR029305 ARM - FRONT SUSPENSION 3.6L V8 32V DOHC EFi Diesel Lion / LH, For Use With 35MM Joint Assy Ball Only / From: 9A214160	-	1	Enquire
3A052B	LR029306	ARM - FRONT SUSPENSION	LR029306 ARM - FRONT SUSPENSION Lion Diesel 2.7 V6 (140KW) / LH, For Use With 35MM Joint Assy Ball Only / From: 9A214160	-	1	Enquire
5A638	LR055291	BUSH - FRONT SUSPENSION ARM	LR055291 BUSH - FRONT SUSPENSION ARM Hydrabush, Lower, Rear	-	2	Enquire
5K483	RBM500140	LINK	RBM500140 LINK RH	-	1	Enquire
5K483	RBM500150	LINK	RBM500150 LINK LH	-	1	Enquire
5K486	RVU500010	BUSH	RVU500010 BUSH	-	2	Enquire
9F955	LR051625	BUSH - SUSPENSION ARM	LR051625 BUSH - SUSPENSION ARM Front / Rear, Upper / To: 8A999999	-	4	Enquire
9F955	LR051625	BUSH - SUSPENSION ARM	LR051625 BUSH - SUSPENSION ARM Front / Rear, Upper / From: 9A000001	-	4	Enquire
3050A	RBK500170	JOINT - BALL	RBK500170 JOINT - BALL Includes Circlip, Upper	-	2	Enquire
3050B	RBK500180	JOINT - BALL	RBK500180 JOINT - BALL Includes Circlip, Lower / To: 9A199376	-	2	Enquire
3050B	RBK500240	JOINT - BALL	RBK500240 JOINT - BALL 35MM Joint Assy - Ball, Includes Circlip, Lower / From: 9A199377 / To: 9A208830	-	1	Enquire
3050B	RBK500300	JOINT - BALL	RBK500300 JOINT - BALL 35MM Joint Assy - Ball, Includes Circlip, Lower / From: 9A208831	-	1	Enquire
3068	RBX500432	BUSH - FRONT SUSPENSION ARM	RBX500432 BUSH - FRONT SUSPENSION ARM Front, Lower	-	2	Enquire
5482	RQK500090	BAR - ROLL	RQK500090 BAR - ROLL To: 5A900495	-	1	Enquire
5482	RQK500091	BAR ASSY - ROLL	RQK500091 BAR ASSY - ROLL From: 5A900496 / To: 5A905047	-	1	Enquire
5482	RQK500110	ACTUATOR	RQK500110 ACTUATOR From: 7A000001 / To: 9A194475	-	1	Enquire
5482	RQK500092	ACTUATOR	RQK500092 ACTUATOR From: 5A905048 / To: 5A999999	-	1	Enquire
5482	RQK500140	BAR - FRONT STABILIZER	RQK500140 BAR - FRONT STABILIZER From: 6A000001 / To: 6A919281	-	1	Enquire
5482	RQK500150	BAR - FRONT STABILIZER	RQK500150 BAR - FRONT STABILIZER From: 9A194476	-	1	Enquire
5482	LR018375	BAR - FRONT STABILIZER	LR018375 BAR - FRONT STABILIZER New Part-Please Check For Reman Version / From: 6A937359 / To: 6A954039	-	1	Enquire
5482	LR017272	BAR - FRONT STABILIZER	LR017272 BAR - FRONT STABILIZER From: 6A919282 / To: 6A937358	-	1	Enquire
5482	LR019932	BAR - FRONT STABILIZER	LR019932 BAR - FRONT STABILIZER From: 6A954040 / To: 6A974366	-	1	Enquire
5482	LR020591	ACTUATOR	LR020591 ACTUATOR Remanufactured Part / From: 6A937359 / To: 6A954039	-	1	Enquire
5482	LR024095	BAR - FRONT STABILIZER	LR024095 BAR - FRONT STABILIZER From: 6A974367 / To: 6A984366	-	1	Enquire
5482	LR032958	BAR - FRONT STABILIZER (NON HAZ)	LR032958 BAR - FRONT STABILIZER (NON HAZ) From: 6A984367 / To: 6A999999	-	1	Enquire
5487	RBU500041	BRACKET	RBU500041 BRACKET To: 6A936799	-	2	Enquire
5487	RBU500042	BRACKET - STABILIZER BAR	RBU500042 BRACKET - STABILIZER BAR From: 6A936800	-	2	Enquire
