Rear Knuckle And Suspension Arms ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Rear Knuckle And Suspension Arms ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FC114207 BOLT $3.54 To Order
Photo Part No Description Price (each) Stock
RYG000383 BOLT $7.17 To Order
RYG000384 BOLT $13.98 To Order
Photo Part No Description Price (each) Stock
KYG000240 BOLT $9.62 To Order
Photo Part No Description Price (each) Stock
FC116217 BOLT $4.40 To Order
FC116216 BOLT $13.33 To Order
Photo Part No Description Price (each) Stock
KYG500270 BOLT $14.25 To Order
Photo Part No Description Price (each) Stock
SYG000013 BOLT $3.38 IN STOCK
Photo Part No Description Price (each) Stock
RLG000010 CLIP $3.85 To Order
Photo Part No Description Price (each) Stock
SKZ500012 CLIP $7.15 To Order
Photo Part No Description Price (each) Stock
RYV000010 CIRCLIP $4.24 IN STOCK
Photo Part No Description Price (each) Stock
RYH500130 NUT $7.39 To Order
RYH501060 NUT - FLANGED $7.06 To Order
Photo Part No Description Price (each) Stock
FX116057 NUT - FLANGED $4.61 To Order
FX116056 NUT - FLANGED $5.89 IN STOCK
Photo Part No Description Price (each) Stock
RYH500052 NUT $5.79 To Order
Photo Part No Description Price (each) Stock
RFD500020 NUT - HEX. $9.00 To Order
LR024151 NUT AND WASHER - HEX. $9.59 IN STOCK
Photo Part No Description Price (each) Stock
RYH500191 NUT $9.67 To Order
Photo Part No Description Price (each) Stock
KYH500050 NUT - CAGE $3.69 To Order
RYH500280 NUT $10.06 To Order
Photo Part No Description Price (each) Stock
RYG000461 BOLT $17.75 To Order
Photo Part No Description Price (each) Stock
RYF000182 WASHER - SPECIAL $8.27 To Order
RYF000183 WASHER $1.09 To Order
Photo Part No Description Price (each) Stock
RUC000074 HUB - WHEEL $210.57 To Order
RUC500120 HUB - WHEEL $967.34 To Order
Photo Part No Description Price (each) Stock
RFM500020 BEARING - REAR WHEEL $165.43 To Order
Photo Part No Description Price (each) Stock
RGG500303 ARM - REAR SUSPENSION $272.28 To Order
RGG500313 ARM - REAR SUSPENSION $272.28 To Order
RGG500304 ARM - REAR SUSPENSION $298.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RGG500282 ARM - REAR SUSPENSION $273.58 To Order
RGG500292 ARM - REAR SUSPENSION $295.45 To Order
RGG500283 ARM - REAR SUSPENSION $260.96 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RLH500120 KNUCKLE AND HUB $470.28 To Order
RLH500130 KNUCKLE AND HUB $447.92 To Order
RLH500020 KNUCKLE AND HUB $370.65 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RHF500031 BUSH - REAR SUSPENSION $40.93 To Order
RHF500100 BUSH - REAR SUSPENSION $84.00 To Order
Photo Part No Description Price (each) Stock
RBK500014 BUSH - REAR SUSPENSION $44.28 To Order
RBK500012 BUSH - REAR SUSPENSION $42.03 To Order
RBK500220 BUSH - REAR SUSPENSION $49.97 To Order
Photo Part No Description Price (each) Stock
RHF500061 BUSH - REAR SUSPENSION $79.00 To Order
RHF500130 BUSH - REAR SUSPENSION $106.24 To Order
Photo Part No Description Price (each) Stock
RGX500201 BUSH $23.22 To Order
LR063744 BUSH $22.19 To Order
Photo Part No Description Price (each) Stock
RGX500211 BUSH - REAR SUSPENSION $23.22 To Order
Photo Part No Description Price (each) Stock
RGX500111 BUSH $18.26 To Order
View All

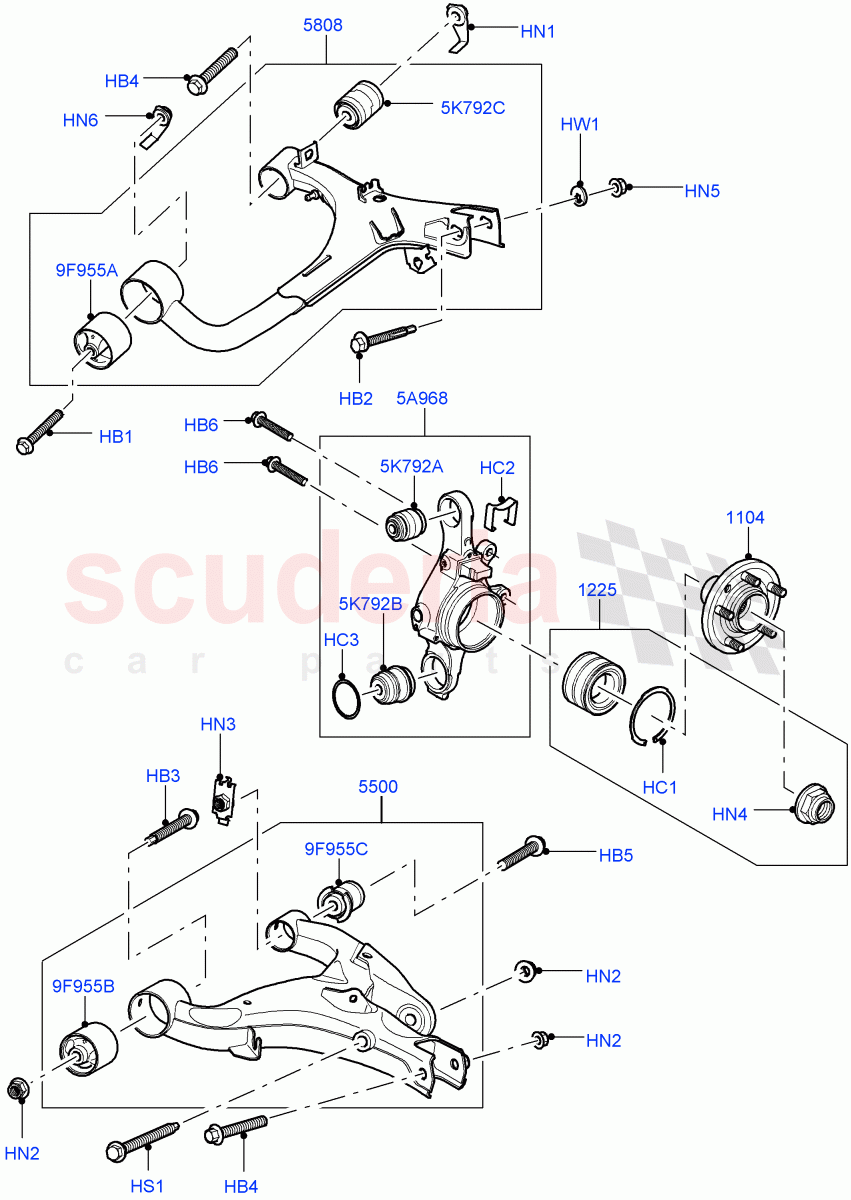

Rear Knuckle And Suspension Arms ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FC114207
BOLT
M14 x 100MM 		$3.54 4
HB2 RYG000383
BOLT
M13 / To: 5A906506 		$7.17 2
HB2 RYG000384
BOLT
M13 / From: 5A906507 		$13.98 2
HB3 KYG000240
BOLT
M16 X 120MM 		$9.62 2
HB4 FC116217
BOLT
M16 X 105MM / To: 7A108443 		$4.40 2
HB4 FC116216
BOLT
M16 X 105MM / From: 7A108444 		$13.33 2
HB5 KYG500270
BOLT
M16 x 115MM 		$14.25 2
HB6 SYG000013
BOLT
External Torx Head, M12 X 35MM
IN STOCK 		$3.38 4
HC1 RLG000010
CLIP
Bearing 		$3.85 2
HC2 SKZ500012
CLIP
Drum - Brake 		$7.15 2
HC3 RYV000010
CIRCLIP
Lower Bush Rear Knuckle
IN STOCK 		$4.24 2
HN1 RYH500130
NUT
M16 / To: 7A108443 		$7.39 2
HN1 RYH501060
NUT - FLANGED
M16 / From: 7A108444 		$7.06 2
HN2 FX116057
NUT - FLANGED
M16 / To: 7A108443 		$4.61 6
HN2 FX116056
NUT - FLANGED
M16 / From: 7A108444
IN STOCK 		$5.89 4
HN3 RYH500052
NUT
M16 		$5.79 2
HN4 RFD500020
NUT - HEX.
Hex Nut Type, Inspect The Thread Lead Before Ordering, M24 X 1.5MM 		$9.00 2
HN4 LR024151
NUT AND WASHER - HEX.
Inspect The Thread Lead Before Ordering, M24X2.0
IN STOCK 		$9.59 1
HN5 RYH500191
NUT
M13 		$9.67 2
HN6 KYH500050
NUT - CAGE
M16 / To: 6A916889 		$3.69 2
HN6 RYH500280
NUT
M14 / From: 6A916890 		$10.06 1
HS1 RYG000461
BOLT
225MM, M16 		$17.75 2
HW1 RYF000182
WASHER - SPECIAL
Adjusting / From: 7A000001 		$8.27 2
HW1 RYF000183
WASHER
Adjusting / To: 6A999999 		$1.09 2
5A968 RLH500120
KNUCKLE AND HUB
With 19" Frt Vented & 18" Rr Vented / RH / From: 7A000001 / To: 9A999999 		$470.28 1
5A968 RLH500130
KNUCKLE AND HUB
With 19" Frt Vented & 18" Rr Vented / LH / From: 7A000001 / To: 9A999999 		$447.92 1
5A968 RLH500020
KNUCKLE AND HUB
RH / To: 6A999999 		$370.65 1
5A968 RLH500020
KNUCKLE AND HUB
With 17" Front Vented & Rear Vented / RH / From: 7A000001 / To: 8A999999 		$370.65 1
5A968 RLH500030
KNUCKLE AND HUB
LH / To: 6A999999 		$370.65 1
5A968 RLH500030
KNUCKLE AND HUB
With 17" Front Vented & Rear Vented / LH / From: 7A000001 / To: 9A999999 		$370.65 1
5A968 LR045822
KNUCKLE - REAR WHEEL
With 18" Front And Rear Vented / RH / From: 9A000001 		$356.66 1
5K792A RHF500031
BUSH - REAR SUSPENSION
Upper / To: 6A999999 		$40.93 2
5K792A RHF500100
BUSH - REAR SUSPENSION
Upper / From: 7A000001 		$84.00 2
5K792B RBK500014
BUSH - REAR SUSPENSION
Lower Bush Rear Knuckle / From: 7A000001 / To: 7A996598 		$44.28 2
5K792B RBK500012
BUSH - REAR SUSPENSION
Lower Bush Rear Knuckle / To: 6A999999 		$42.03 2
5K792B RBK500220
BUSH - REAR SUSPENSION
Lower Bush Rear Knuckle / From: 7A996599 		$49.97 2
5K792C RHF500061
BUSH - REAR SUSPENSION
Rear Bush, Upper Arm / To: 8A162287 		$79.00 2
5K792C RHF500130
BUSH - REAR SUSPENSION
Rear Bush, Upper Arm / From: 8A162288 		$106.24 2
9F955A RGX500201
BUSH
Front Bush, Upper Arm / To: 9A500000 		$23.22 2
9F955A LR063744
BUSH
Front Bush, Upper Arm / From: 9A500001 / To: 9A999999 		$22.19 2
9F955B RGX500211
BUSH - REAR SUSPENSION
Front Bush, Lower Arm 		$23.22 2
9F955C RGX500111
BUSH
Lower Arm, Rear Bush 		$18.26 2
1104 RUC000074
HUB - WHEEL
To: 8A173424 		$210.57 2
1104 RUC500120
HUB - WHEEL
From: 8A173425 		$967.34 2
1225 RFM500020
BEARING - REAR WHEEL 		$165.43 2
5500 RGG500303
ARM - REAR SUSPENSION
RH / To: 6A961982 		$272.28 1
5500 RGG500313
ARM - REAR SUSPENSION
LH / To: 6A961982 		$272.28 1
5500 RGG500304
ARM - REAR SUSPENSION
RH / From: 6A961983 		$298.32 1
5500 RGG500314
ARM - REAR SUSPENSION
LH / From: 6A961983 		$298.32 1
5808 RGG500282
ARM - REAR SUSPENSION
RH / To: 5A906506 		$273.58 1
5808 RGG500292
ARM - REAR SUSPENSION
LH / To: 5A906506 		$295.45 1
5808 RGG500283
ARM - REAR SUSPENSION
RH / From: 5A906507 / To: 8A162287 		$260.96 1
5808 RGG500293
ARM - REAR SUSPENSION
LH / From: 5A906507 / To: 8A162287 		$260.96 1
5808 RGG500510
ARM - REAR SUSPENSION
LH / From: 8A162288 / To: 9A205811 		$294.20 1
5808 RGG500500
ARM - REAR SUSPENSION
RH / From: 8A162288 / To: 9A205811 		$262.21 1
5808 LR010526
ARM - REAR SUSPENSION
RH / From: 9A205812 / To: 9A206811 		$282.55 1
5808 LR010527
ARM - REAR SUSPENSION
LH / From: 9A205812 / To: 9A206811 		$317.75 1
5808 LR063719
ARM - REAR SUSPENSION
RH / From: 9A206812 		$455.92 1
5808 LR063718
ARM - REAR SUSPENSION
LH / From: 9A206812 		$455.92 1
