Air Suspension Compressor And Lines (Air Suspension Lines) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Air Suspension Compressor And Lines (Air Suspension Lines) ((V) TO9A999999)

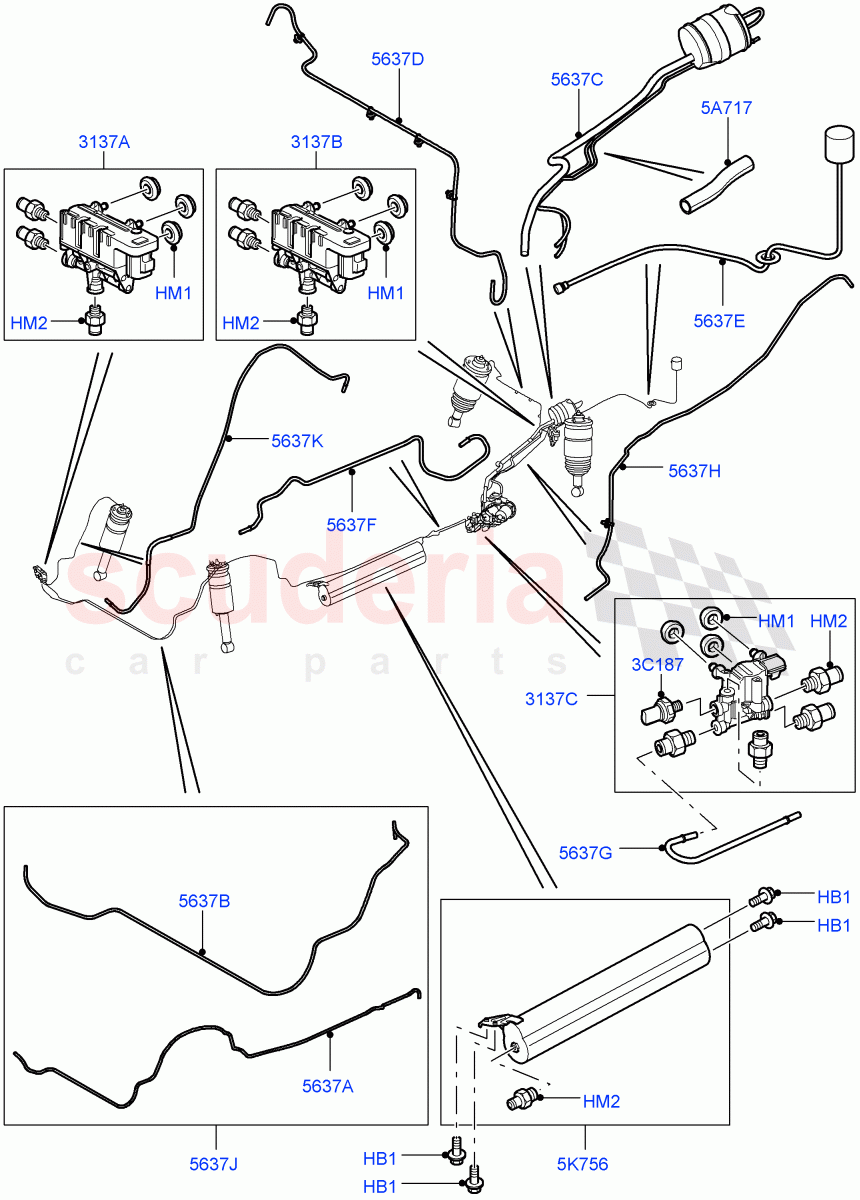

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108167	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KVV500040	GROMMET - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044836	CONNECTOR - VALVE BLOCK TO PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RVH000095	VALVE - LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RVH000055	VALVE - LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RVH000046	VALVE - LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQH500011	SENSOR - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB500246	PIPE	Enquire	To Order
	RQB500247	PIPE	Enquire	To Order
	RQB501150	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB500970	PIPE	Enquire	To Order
	RQB501160	Tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB500742	PIPE	Enquire	To Order
	RQB501210	TUBE - AIR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB000493	TUBE	Enquire	To Order
	RQB000484	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB000418	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB500252	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB000423	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB500782	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB501130	PIPE - AIR INLET	Enquire	To Order
	RQB501200	PIPE - AIR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB000464	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RPR500030	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQN500070	RESERVOIR - COMPRESSED AIR	Enquire	To Order
	RQN500070	RESERVOIR - COMPRESSED AIR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108167	SCREW	FS108167 SCREW M8 X 16MM	-	4	Enquire
HM1	KVV500040	GROMMET - VALVE	KVV500040 GROMMET - VALVE Grommet	-	3	Enquire
HM2	LR044836	CONNECTOR - VALVE BLOCK TO PIPE	LR044836 CONNECTOR - VALVE BLOCK TO PIPE 6MM, Air Tube Connector	-	-	Enquire
3C187	RQH500011	SENSOR - AIR SUSPENSION	RQH500011 SENSOR - AIR SUSPENSION Pressure	-	1	Enquire
5A717	RPR500030	SLEEVE	RPR500030 SLEEVE (+)"GCC"	-	1	Enquire
5K756	RQN500070	RESERVOIR - COMPRESSED AIR	RQN500070 RESERVOIR - COMPRESSED AIR To: 8A149839	-	1	Enquire
5K756	RQN500070	RESERVOIR - COMPRESSED AIR	RQN500070 RESERVOIR - COMPRESSED AIR From: 8A149840	-	1	Enquire
3137A	RVH000095	VALVE - LEVELLING	RVH000095 VALVE - LEVELLING Front Axle	-	1	Enquire
3137B	RVH000055	VALVE - LEVELLING	RVH000055 VALVE - LEVELLING Rear Axle	-	1	Enquire
3137C	RVH000046	VALVE - LEVELLING	RVH000046 VALVE - LEVELLING Reservoir	-	1	Enquire
5637A	RQB500246	PIPE	RQB500246 PIPE Reservoir Valve To Front Axle Valve / To: 5A905842	-	1	Enquire
5637A	RQB500247	PIPE	RQB500247 PIPE Reservoir Valve To Front Axle Valve / From: 5A905843 / To: 6A999999	-	1	Enquire
5637A	RQB501150	TUBE	RQB501150 TUBE Reservoir Valve To Front Axle Valve / From: 7A000001	-	1	Enquire
5637B	RQB500970	PIPE	RQB500970 PIPE Axle Valve To Front LH Spring / To: 6A999999	-	1	Enquire
5637B	RQB501160	Tube	RQB501160 Tube Axle Valve To Front LH Spring / From: 7A000001	-	1	Enquire
5637C	RQB500742	PIPE	RQB500742 PIPE Air Inlet / Exhaust Silencer / To: 8A142900	-	1	Enquire
5637C	RQB501210	TUBE - AIR INLET	RQB501210 TUBE - AIR INLET Air Inlet / Exhaust Silencer / From: 8A142901	-	1	Enquire
5637D	RQB000493	TUBE	RQB000493 TUBE Axle Valve To Rear RH Spring	-	1	Enquire
5637D	RQB000484	TUBE	RQB000484 TUBE Axle Valve To Rear LH Spring	-	1	Enquire
5637E	RQB000418	TUBE	RQB000418 TUBE Main Inlet Air Suspension	-	1	Enquire
5637F	RQB500252	PIPE	RQB500252 PIPE Reservoir Valve To Reservoir	-	1	Enquire
5637G	RQB000423	TUBE	RQB000423 TUBE Supply Unit To Reservoir Valve Block	-	1	Enquire
5637H	RQB500782	TUBE	RQB500782 TUBE Reservoir Valve To Rear Axle Valve	-	1	Enquire
5637J	RQB501130	PIPE - AIR INLET	RQB501130 PIPE - AIR INLET Axle Valve To Front LH Spring, Reservoir Valve To Front Axle Valve, Tube Assembly / From: 7A000001 / To: 7A999999	-	1	Enquire
5637J	RQB501200	PIPE - AIR INLET	RQB501200 PIPE - AIR INLET Axle Valve To Front LH Spring, Reservoir Valve To Front Axle Valve, Tube Assembly / From: 8A000001	-	1	Enquire
5637K	RQB000464	TUBE	RQB000464 TUBE Axle Valve To Front RH Spring	-	1	Enquire
