Air Suspension Controls/Electrics ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Air Suspension Controls/Electrics ((V) TO9A999999)

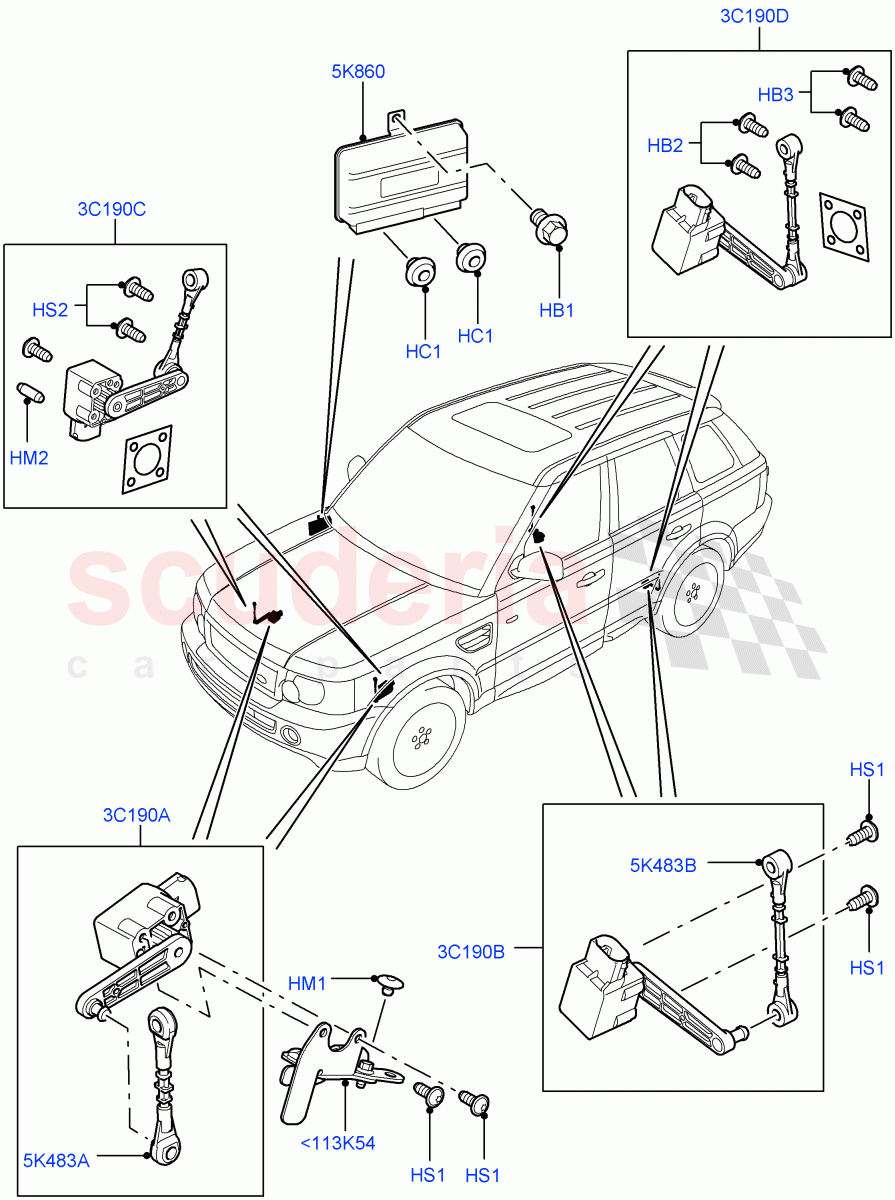

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108167	SCREW	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020059	BOLT	$3.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009676	BOLT	$2.17	To Order

Photo	Part No	Description	Price (each)	Stock
	RYC500010	CLIP	$1.49	To Order

Photo	Part No	Description	Price (each)	Stock
	DYQ500050	RIVET	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020475	PIN	$7.21	To Order
	LR020477	PIN	$7.66	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500020	SCREW	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020061	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQT500160	CONTROL	$929.49	To Order

Photo	Part No	Description	Price (each)	Stock
	RQH500570	SENSOR	$42.56	To Order

Photo	Part No	Description	Price (each)	Stock
	RQH500041	SENSOR	$36.89	To Order
	RQH500051	SENSOR	$36.89	To Order
	LR020161	KIT - SENSOR ATTACHMENT	$166.78	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR020473	KIT - SENSOR ATTACHMENT	$121.16	To Order
	LR020474	KIT - SENSOR ATTACHMENT	$121.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020159	KIT - SENSOR ATTACHMENT	$166.78	To Order
	LR020161	KIT - SENSOR ATTACHMENT	$166.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020473	KIT - SENSOR ATTACHMENT	$121.16	To Order

Photo	Part No	Description	Price (each)	Stock
	RVF500021	LINK	$1.90	To Order

Photo	Part No	Description	Price (each)	Stock
	RQU500601	BRACKET - SUPPORT	$17.94	To Order
	RQU500611	BRACKET - SUPPORT	$43.10	To Order
	RQU500602	BRACKET - SUPPORT	$65.66	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<113K54	RQU500601	BRACKET - SUPPORT	RQU500601 BRACKET - SUPPORT RH / To: 5A908644	$17.94	1
<113K54	RQU500611	BRACKET - SUPPORT	RQU500611 BRACKET - SUPPORT LH / To: 5A908644	$43.10	1
<113K54	RQU500602	BRACKET - SUPPORT	RQU500602 BRACKET - SUPPORT RH / From: 5A908645	$65.66	1
<113K54	RQU500612	BRACKET - SUPPORT	RQU500612 BRACKET - SUPPORT LH / From: 5A908645	$153.49	1
HB1	FS108167	SCREW	FS108167 SCREW M8 X 16MM	$0.74	1
HB2	LR020059	BOLT	LR020059 BOLT M5 x 6.5MM / From: 9A213085	$3.20	4
HB3	LR009676	BOLT	LR009676 BOLT M5 X 10MM / From: 9A213085	$2.17	8
HC1	RYC500010	CLIP	RYC500010 CLIP Push Pin	$1.49	2
HM1	DYQ500050	RIVET	DYQ500050 RIVET Rivet	$0.74	4
HM2	LR020475	PIN	LR020475 PIN LH, Pin / From: 9A213085	$7.21	1
HM2	LR020477	PIN	LR020477 PIN RH, Pin / From: 9A213085	$7.66	1
HS1	RYP500020	SCREW	RYP500020 SCREW M5 X 12MM	$0.50	8
HS2	LR020061	Screw	LR020061 Screw M6 x 10mm / From: 9A213085	-	2	Enquire
3C190A	RQH500570	SENSOR	RQH500570 SENSOR Front / To: 9A213084	$42.56	2
3C190B	RQH500041	SENSOR	RQH500041 SENSOR RH, Rear / To: 6A953886	$36.89	1
3C190B	RQH500051	SENSOR	RQH500051 SENSOR LH, Rear / To: 6A953886	$36.89	1
3C190B	LR020161	KIT - SENSOR ATTACHMENT	LR020161 KIT - SENSOR ATTACHMENT RH, Rear / From: 6A953887 / To: 8A999999	$166.78	1
3C190B	LR020159	KIT - SENSOR ATTACHMENT	LR020159 KIT - SENSOR ATTACHMENT LH, Rear / From: 6A953887 / To: 8A999999	$166.78	1
3C190B	RQH500043	SENSOR	RQH500043 SENSOR RH, Rear / From: 9A000001 / To: 9A213084	$43.11	1
3C190B	RQH500053	SENSOR	RQH500053 SENSOR LH, Rear / From: 9A000001 / To: 9A213084	$43.11	1
3C190C	LR020473	KIT - SENSOR ATTACHMENT	LR020473 KIT - SENSOR ATTACHMENT LH, 10MY Type Height Sensor Adapted To Previous Condition, Front, The New 3-Pin Plug Is Fully Compatible With The Previous 6-Pin / From: 9A213085	$121.16	1
3C190C	LR020474	KIT - SENSOR ATTACHMENT	LR020474 KIT - SENSOR ATTACHMENT RH, 10MY Type Height Sensor Adapted To Previous Condition, Front, The New 3-Pin Plug Is Fully Compatible With The Previous 6-Pin / From: 9A213085	$121.16	1
3C190D	LR020159	KIT - SENSOR ATTACHMENT	LR020159 KIT - SENSOR ATTACHMENT LH, 10MY Type Height Sensor Adapted To Previous Condition, Rear, The New 3-Pin Plug Is Fully Compatible With The Previous 6-Pin / From: 9A213085	$166.78	1
3C190D	LR020161	KIT - SENSOR ATTACHMENT	LR020161 KIT - SENSOR ATTACHMENT RH, 10MY Type Height Sensor Adapted To Previous Condition, Rear, The New 3-Pin Plug Is Fully Compatible With The Previous 6-Pin / From: 9A213085	$166.78	1
5K483A	LR020473	KIT - SENSOR ATTACHMENT	LR020473 KIT - SENSOR ATTACHMENT Front	$121.16	2
5K483B	RVF500021	LINK	RVF500021 LINK Rear / To: 6A953886	$1.90	2
5K860	RQT500160	CONTROL	RQT500160 CONTROL	$929.49	1
