Find Your Part

View All

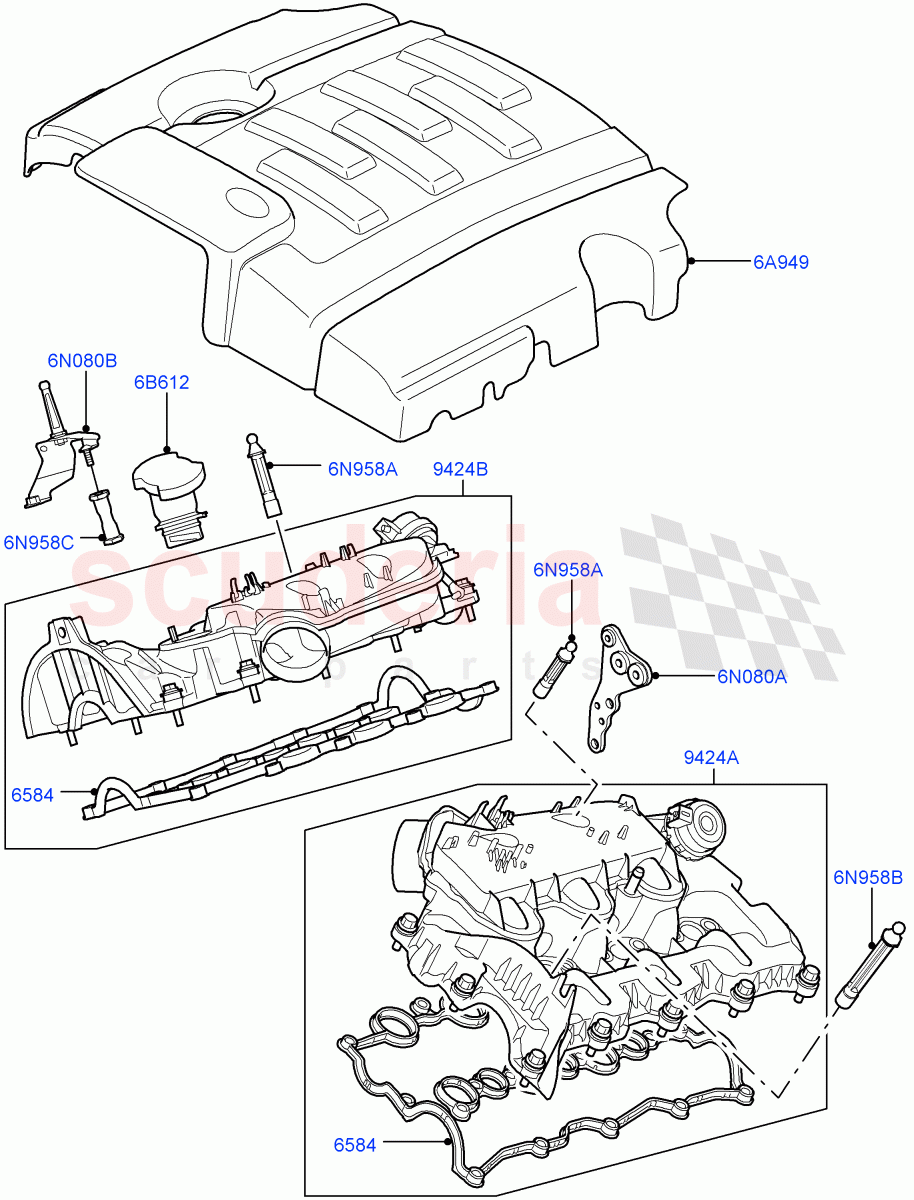

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR166341	GASKET - CAMSHAFT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LBH000182	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order
	LBH500290	COVERING - PROTECTIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1336599	PIPE AND CAP - OIL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1346479	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4611567	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LBG500030	STUD - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016839	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4611570	STUD - ENGINE COVER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
6A949	LBH000182	INSULATOR - ENGINE COMPARTMENT	LBH000182 INSULATOR - ENGINE COMPARTMENT To: 6A999999	-	1	Enquire
6A949	LBH500290	COVERING - PROTECTIVE	LBH500290 COVERING - PROTECTIVE From: 7A000001	-	1	Enquire
6B612	1336599	PIPE AND CAP - OIL FILLER	1336599 PIPE AND CAP - OIL FILLER	-	1	Enquire
6N080A	1346479	BRACKET	1346479 BRACKET	-	1	Enquire
6N080B	4611567	BRACKET	4611567 BRACKET	-	1	Enquire
6N958A	LBG500030	STUD - ENGINE COVER	LBG500030 STUD - ENGINE COVER Short	-	2	Enquire
6N958B	LR016839	STUD - BALL	LR016839 STUD - BALL	-	1	Enquire
6N958C	4611570	STUD - ENGINE COVER	4611570 STUD - ENGINE COVER	-	1	Enquire
6584	LR166341	GASKET - CAMSHAFT COVER	LR166341 GASKET - CAMSHAFT COVER	-	2	Enquire
9424A	1354247	MANIFOLD - INLET	1354247 MANIFOLD - INLET LH / To: 6A948269	-	1	Enquire
9424A	LR003692	MANIFOLD - INLET	LR003692 MANIFOLD - INLET LH / From: 6A948270 / To: 6A999999	-	1	Enquire
9424A	LR005495	MANIFOLD - INLET	LR005495 MANIFOLD - INLET LH / From: 7A000001	-	1	Enquire
9424B	1354248	MANIFOLD - INLET	1354248 MANIFOLD - INLET RH / To: 6A999999	-	1	Enquire
9424B	LR005496	MANIFOLD - INLET	LR005496 MANIFOLD - INLET RH / From: 7A000001	-	1	Enquire
