Name: Cylinder Block And Plugs (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)
Rating: 5.0 (1 reviews)

Cylinder Block And Plugs (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Cylinder Block And Plugs (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

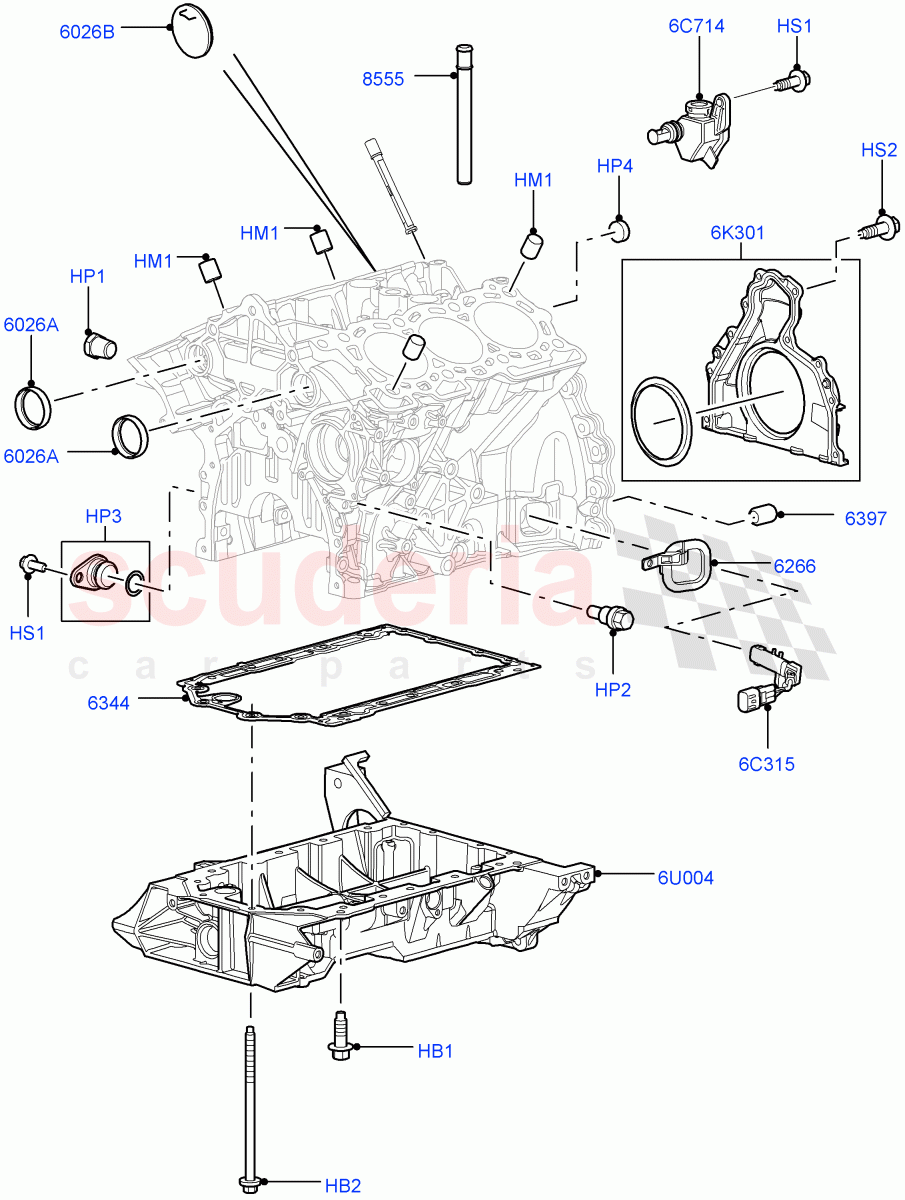

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1305834	BOLT	$2.19	To Order

Photo	Part No	Description	Price (each)	Stock
	1225745	BOLT AND WASHER - HEX.HEAD	$2.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3026220	PIN	$6.02	To Order

Photo	Part No	Description	Price (each)	Stock
	1100035	PLUG	$0.74	To Order
	LR003517	PLUG - ENGINE	$8.01	To Order

Photo	Part No	Description	Price (each)	Stock
	1663851	PLUG - THREADED	$3.48	To Order
	LR000376	PLUG - THREADED	$9.33	To Order

Photo	Part No	Description	Price (each)	Stock
	1316062	PLUG - ENGINE	$5.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000263	PLUG	$0.58	To Order
	LR000375	PLUG	$4.00	To Order

Photo	Part No	Description	Price (each)	Stock
	6729404	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	6726224	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	1331302	COVER - ACCESS HOLE	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	1311311	GASKET	$19.77	To Order
	LR002816	GASKET	$17.42	To Order
	LR005994	GASKET - OIL PAN	$37.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4603182	DOWEL	$27.62	To Order

Photo	Part No	Description	Price (each)	Stock
	1311291	TUBE	$54.61	To Order

Photo	Part No	Description	Price (each)	Stock
	3932421	PLUG - ENGINE	$7.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LCM500010	PLUG - ENGINE	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	1354249	SENSOR - CRANKSHAFT POSITION - CPS	$45.06	To Order
	LR009793	SENSOR - CRANKSHAFT POSITION - CPS	$176.02	To Order

Photo	Part No	Description	Price (each)	Stock
	1311310	RESERVOIR	$13.36	To Order

Photo	Part No	Description	Price (each)	Stock
	1316115	RETAINER AND SEAL - CRANKSHAFT	$61.96	To Order
	LR032930	RETAINER - CRANKSHAFT OIL SEAL	$69.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011693	STIFFENER	$362.52	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1305834	BOLT	1305834 BOLT M8 X 20MM	$2.19	6
HB2	1225745	BOLT AND WASHER - HEX.HEAD IN STOCK	1225745 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M6 X 105MM IN STOCK	$2.90	12
HM1	3026220	PIN	3026220 PIN 4 Per Package, Hollow Type, M16 x 19MM, Straight Dowel	$6.02	4
HP1	1100035	PLUG	1100035 PLUG 1/4" x 18 NPSF / To: 6A999999	$0.74	1
HP1	LR003517	PLUG - ENGINE	LR003517 PLUG - ENGINE 1/4" x 18 NPSF / From: 7A000001	$8.01	1
HP2	1663851	PLUG - THREADED	1663851 PLUG - THREADED M10 / To: 5A999999	$3.48	1
HP2	LR000376	PLUG - THREADED	LR000376 PLUG - THREADED M10 X 11.5, Threaded Timing Plug / From: 6A000001	$9.33	1
HP3	1316062	PLUG - ENGINE	1316062 PLUG - ENGINE Engine	$5.94	2
HP4	LR000263	PLUG	LR000263 PLUG	$0.58	1
HP4	LR000375	PLUG	LR000375 PLUG	$4.00	1
HS1	6729404	SCREW	6729404 SCREW M6 X 20MM	$0.73	1
HS2	6726224	SCREW	6726224 SCREW M6 X 16MM	$0.61	2
6C315	1354249	SENSOR - CRANKSHAFT POSITION - CPS	1354249 SENSOR - CRANKSHAFT POSITION - CPS To: 8A176137	$45.06	1
6C315	LR009793	SENSOR - CRANKSHAFT POSITION - CPS	LR009793 SENSOR - CRANKSHAFT POSITION - CPS From: 8A176138	$176.02	1
6C714	1311310	RESERVOIR	1311310 RESERVOIR	$13.36	1
6K301	1316115	RETAINER AND SEAL - CRANKSHAFT	1316115 RETAINER AND SEAL - CRANKSHAFT To: 8A999999	$61.96	1
6K301	LR032930	RETAINER - CRANKSHAFT OIL SEAL	LR032930 RETAINER - CRANKSHAFT OIL SEAL Rear / From: 9A000001	$69.22	1
6U004	LR011693	STIFFENER	LR011693 STIFFENER	$362.52	1
6026A	3932421	PLUG - ENGINE	3932421 PLUG - ENGINE Cup Type, OD=33.6MM, Service Only Oversize	$7.79	2
6026B	LCM500010	PLUG - ENGINE	LCM500010 PLUG - ENGINE Converter Access Plug	$1.74	1
6266	1331302	COVER - ACCESS HOLE	1331302 COVER - ACCESS HOLE Sensor - Crankshaft Position - CPS	$1.04	1
6344	1311311	GASKET	1311311 GASKET To: 6A952658	$19.77	1
6344	LR002816	GASKET	LR002816 GASKET From: 6A952659 / To: 7A116938	$17.42	1
6344	LR005994	GASKET - OIL PAN	LR005994 GASKET - OIL PAN Oil Pan / From: 7A116939	$37.28	1
6397	4603182	DOWEL	4603182 DOWEL 15.7MM, Pin - Dowell	$27.62	2
8555	1311291	TUBE	1311291 TUBE	$54.61	1
