Cylinder Head (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

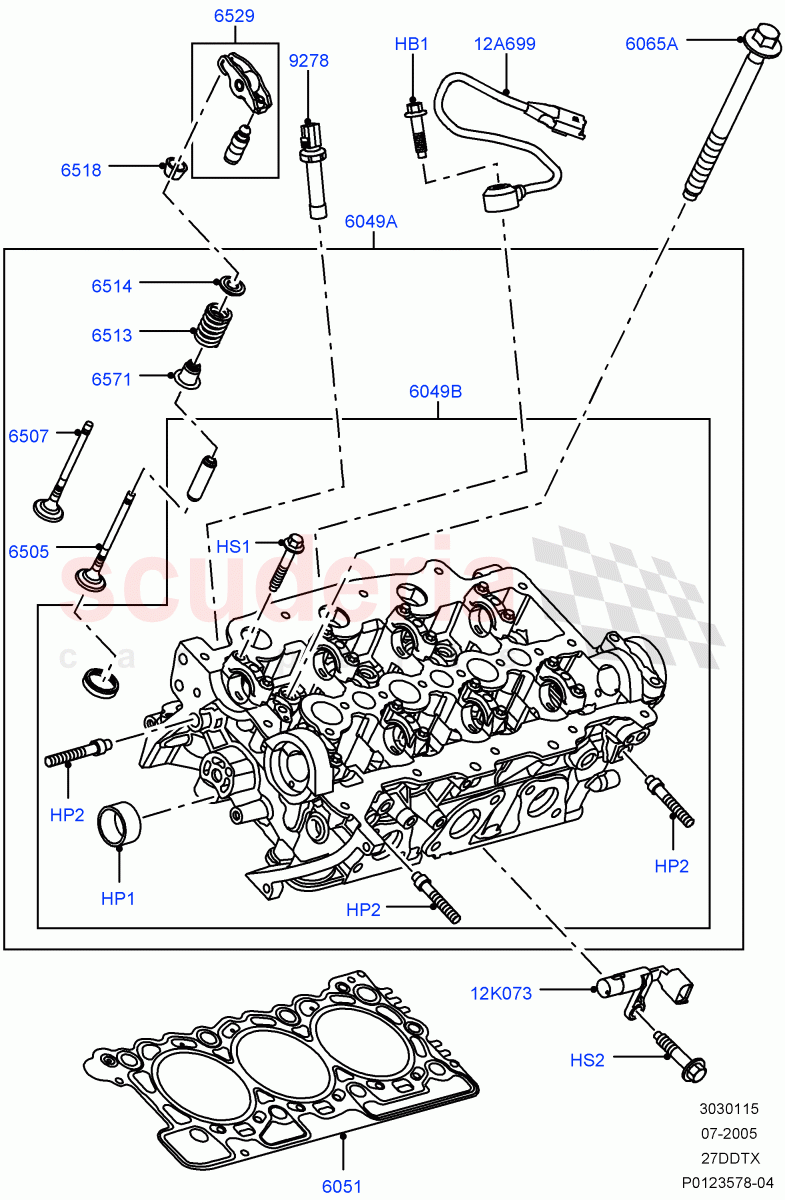

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Cylinder Head (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	6746838	BOLT - HEX.HEAD	6746838 BOLT - HEX.HEAD M8 x 30MM	-	2	Enquire
HP1	1102774	PLUG - ENGINE	1102774 PLUG - ENGINE 22MM	-	4	Enquire
HP2	4185951	PLUG - EXPANSION	4185951 PLUG - EXPANSION O = 10MM / To: 9A666665	-	7	Enquire
HP2	1331356	PLUG - EXPANSION	1331356 PLUG - EXPANSION	-	-	Enquire
HP2	LR029603	PLUG - EXPANSION	LR029603 PLUG - EXPANSION O = 10MM / From: 9A666666	-	7	Enquire
HS1	7062845	SCREW	7062845 SCREW M6 x 35MM	-	36	Enquire
HS2	6729404	SCREW	6729404 SCREW M6 X 20MM	-	1	Enquire
12A699	LR007808	SENSOR - ENGINE KNOCK	LR007808 SENSOR - ENGINE KNOCK To: 6A999999	-	2	Enquire
12A699	LR007808	SENSOR - ENGINE KNOCK	LR007808 SENSOR - ENGINE KNOCK Euro Consolidated Directive 3 / From: 7A000001	-	2	Enquire
12K073	1331346	SENSOR - CAMSHAFT POSITION	1331346 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / To: 6A999999	-	2	Enquire
12K073	LR005252	SENSOR - CAMSHAFT POSITION	LR005252 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: 7A000001	-	2	Enquire
6049A	1311302	CYLINDER HEAD	1311302 CYLINDER HEAD RH, With Valves	-	1	Enquire
6049A	1311303	CYLINDER HEAD	1311303 CYLINDER HEAD LH, With Valves	-	1	Enquire
6049B	1357023	CYLINDER HEAD	1357023 CYLINDER HEAD RH / To: 6A999999	-	1	Enquire
6049B	1357030	CYLINDER HEAD	1357030 CYLINDER HEAD LH / To: 6A999999	-	1	Enquire
6049B	LR004062	CYLINDER HEAD	LR004062 CYLINDER HEAD RH / From: 7A000001 / To: 9A194475	-	1	Enquire
6049B	LR004063	CYLINDER HEAD	LR004063 CYLINDER HEAD LH / From: 7A000001 / To: 9A194475	-	1	Enquire
6049B	LR012732	CYLINDER HEAD	LR012732 CYLINDER HEAD RH, Less Valves / From: 9A194476	-	1	Enquire
6049B	LR012733	CYLINDER HEAD	LR012733 CYLINDER HEAD LH, Less Valves / From: 9A194476	-	1	Enquire
6051	1348677	GASKET-CYLINDER HEAD	1348677 GASKET-CYLINDER HEAD Grade 1 / To: 9A190673	-	-	Enquire
6051	1348681	GASKET-CYLINDER HEAD	1348681 GASKET-CYLINDER HEAD Grade 2 / To: 9A190673	-	-	Enquire
6051	1348683	GASKET-CYLINDER HEAD	1348683 GASKET-CYLINDER HEAD Grade 3 / To: 9A190673	-	-	Enquire
6051	1348686	GASKET-CYLINDER HEAD	1348686 GASKET-CYLINDER HEAD Grade 4 / To: 9A190673	-	-	Enquire
6051	1348688	GASKET-CYLINDER HEAD	1348688 GASKET-CYLINDER HEAD Grade 5 / To: 9A190673	-	-	Enquire
6051	LR009719	GASKET - CYLINDER HEAD	LR009719 GASKET - CYLINDER HEAD Grade 2 / From: 9A190674	-	-	Enquire
6051	LR009721	GASKET - CYLINDER HEAD	LR009721 GASKET - CYLINDER HEAD Grade 3 / From: 9A190674	-	-	Enquire
6051	LR009722	GASKET - CYLINDER HEAD	LR009722 GASKET - CYLINDER HEAD Grade 4 / From: 9A190674	-	-	Enquire
6051	LR009723	GASKET-CYLINDER HEAD	LR009723 GASKET-CYLINDER HEAD Grade 5 / From: 9A190674	-	-	Enquire
6065A	1331316	BOLT - CYLINDER HEAD	1331316 BOLT - CYLINDER HEAD M13 X 155	-	16	Enquire
6505	1316137	VALVE - EXHAUST	1316137 VALVE - EXHAUST To: 8A149462	-	12	Enquire
6505	LR008130	VALVE - EXHAUST	LR008130 VALVE - EXHAUST From: 8A149463	-	12	Enquire
6507	1311281	VALVE - INLET	1311281 VALVE - INLET	-	12	Enquire
6513	1311282	SPRING - VALVE	1311282 SPRING - VALVE To: 8A136253	-	24	Enquire
6513	LR006720	SPRING - VALVE	LR006720 SPRING - VALVE From: 8A136254	-	24	Enquire
6514	1311283	RETAINER - VALVE SPRING	1311283 RETAINER - VALVE SPRING	-	24	Enquire
6518	1072051	COLLET - VALVE SPRING RETAINER	1072051 COLLET - VALVE SPRING RETAINER	-	48	Enquire
6529	1336545	ARM - FOLLOWER	1336545 ARM - FOLLOWER	-	12	Enquire
6571	1311285	SEAL - VALVE STEM	1311285 SEAL - VALVE STEM	-	24	Enquire
9278	1316119	SWITCH - OIL PRESSURE	1316119 SWITCH - OIL PRESSURE From: 6A000001	-	1	Enquire
9278	LR000281	SWITCH - OIL PRESSURE	LR000281 SWITCH - OIL PRESSURE To: 5A999999	-	1	Enquire
