Name: Turbocharger (Lubrication And Cooling) (2.0L AJ20P4 Petrol Mid PTA, Changsu (China))
Rating: 5.0 (1 reviews)

View All

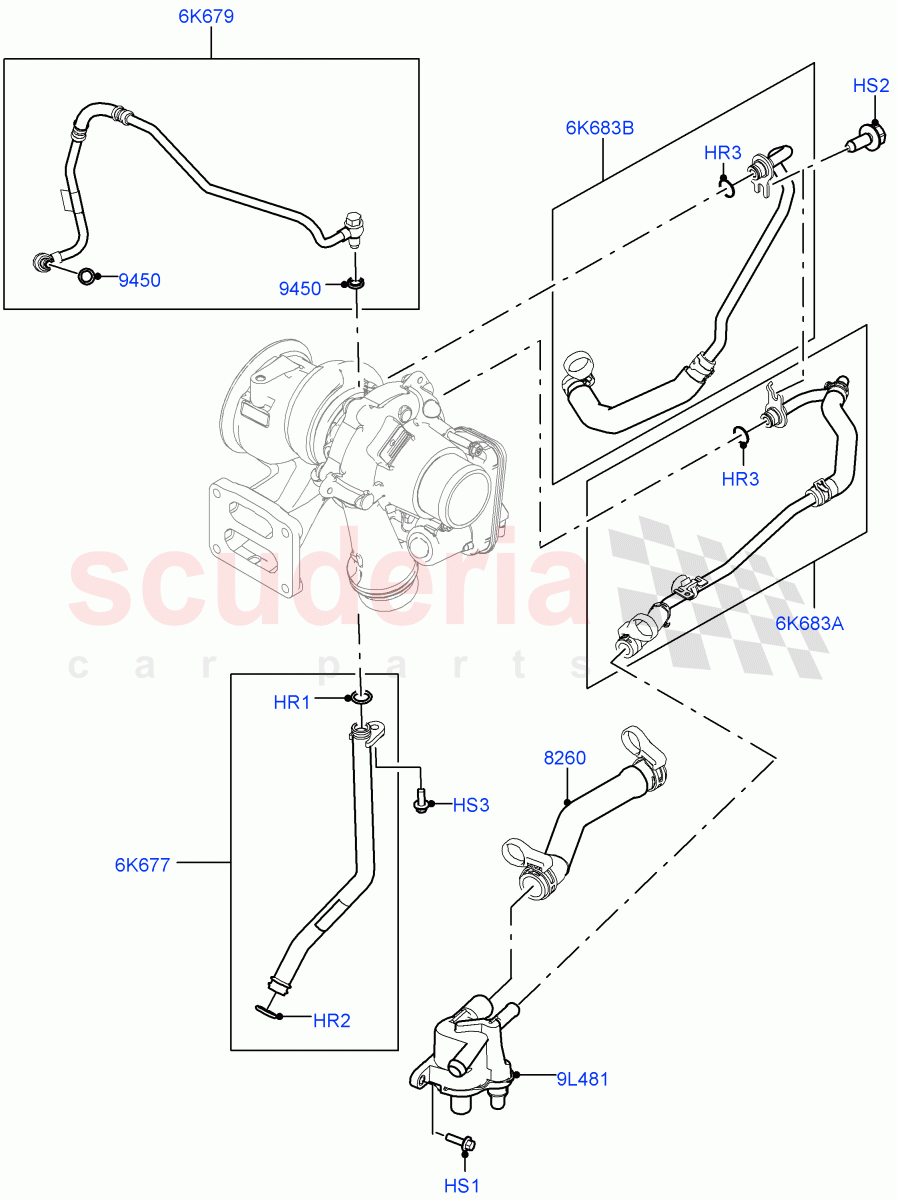

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR136779	RING - SEALING	$4.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$3.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR123818	O-RING	$3.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122683	SCREW	$1.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094426	HOSE - WATER	$33.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR118385	PIPE - OIL FEED	$62.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093489	SEPARATOR - COOLANT DEGAS	$89.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094406	HOSE - INTERCOOLER	$45.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094410	HOSE - COOLING SYSTEM	$45.84	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR136779	RING - SEALING IN STOCK	LR136779 RING - SEALING 13.8 x 2.5, Drain, Upper IN STOCK	$4.63	1
HR2	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Drain, Lower IN STOCK	$3.81	1
HR3	LR123818	O-RING	LR123818 O-RING Cooling For Turbocharger,	$3.01	2
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$1.54	3
HS2	LR122683	SCREW IN STOCK	LR122683 SCREW M6 X 16MM IN STOCK	$1.81	1
HS3	LR073686	SCREW	LR073686 SCREW M6 X 16MM	$2.38	1
6K677	LR094437	HOSE - OIL RETURN	LR094437 HOSE - OIL RETURN To: MG575834	$19.00	1
6K677	LR159867	HOSE - OIL RETURN	LR159867 HOSE - OIL RETURN From: MG575835	$45.17	1
6K679	LR118385	PIPE - OIL FEED	LR118385 PIPE - OIL FEED	$62.37	1
6K683A	LR094406	HOSE - INTERCOOLER	LR094406 HOSE - INTERCOOLER Cooling For Turbocharger, Feed	$45.84	1
6K683B	LR094410	HOSE - COOLING SYSTEM	LR094410 HOSE - COOLING SYSTEM Cooling For Turbocharger, Return	$45.84	1
9L481	LR093489	SEPARATOR - COOLANT DEGAS	LR093489 SEPARATOR - COOLANT DEGAS	$89.83	1
8260	LR094426	HOSE - WATER	LR094426 HOSE - WATER Tube Water By-Pass	$33.01	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt, Turbocharger Oil Feed IN STOCK	$4.48	4

Turbocharger (Lubrication And Cooling) (2.0L Aj20P4 Petrol Mid Pta, Changsu (China))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]
