Name: Turbocharger (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol Mid PTA)
Rating: 4.8 (1 reviews)

Turbocharger (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol Mid PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Turbocharger (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4...

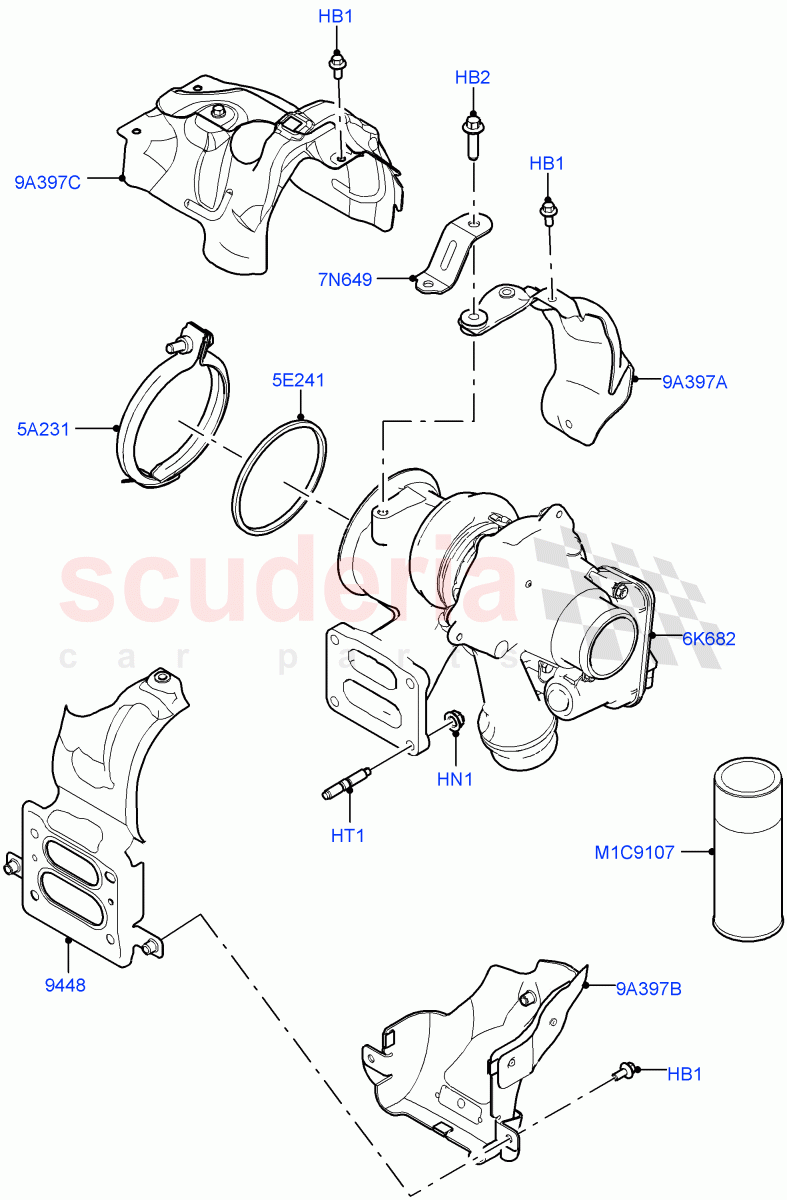

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094452	BOLT - HEX.HEAD	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092112	NUT	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092114	STUD	$3.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094404	GASKET - EXHAUST MANIFOLD	$28.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106799	CLAMP - EXHAUST	$37.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	$19.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113873	TURBOCHARGER	$2,344.20	To Order
	LR112021	TURBOCHARGER	$2,440.92	To Order
	LR115435	TURBOCHARGER	$1,917.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167164	BRACKET - TURBOCHARGER	$30.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107290	HEAT SHIELD - TURBOCHARGER	$25.34	To Order
	LR161654	HEAT SHIELD - TURBOCHARGER	$31.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094413	HEAT SHIELD - TURBOCHARGER	$32.28	To Order
	LR174060	HEAT SHIELD - TURBOCHARGER	$28.46	To Order
	LR161656	HEAT SHIELD - TURBOCHARGER	$41.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094088	HEAT SHIELD - TURBOCHARGER	$50.30	To Order
	LR143405	HEAT SHIELD - TURBOCHARGER	$45.98	To Order
	LR171968	HEAT SHIELD - TURBOCHARGER	$42.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164809	GREASE - HIGH TEMPERATURE	$76.00	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield	$2.65	6
HB2	LR094452	BOLT - HEX.HEAD	LR094452 BOLT - HEX.HEAD Hi temp, M8 x 30MM	$2.36	2
HN1	LR092112	NUT	LR092112 NUT M8, Turbocharger	$2.07	4
HT1	LR092114	STUD	LR092114 STUD M8 X 17.5 + M8 X 20, Turbocharger	$3.43	4
M1C9107	LR164809	GREASE - HIGH TEMPERATURE	LR164809 GREASE - HIGH TEMPERATURE High Temperature, Wastegate Rod	$76.00	1
5A231	LR106799	CLAMP - EXHAUST	LR106799 CLAMP - EXHAUST	$37.05	1
5E241	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER	$19.81	1
6K682	LR113873	TURBOCHARGER	LR113873 TURBOCHARGER 2.0L AJ20P4 Petrol Mid PTA	$2,344.20	1
6K682	LR112021	TURBOCHARGER	LR112021 TURBOCHARGER 2.0L AJ20P4 Petrol E100 PTA	$2,440.92	1
6K682	LR115435	TURBOCHARGER	LR115435 TURBOCHARGER 2.0L AJ20P4 Petrol High PTA	$1,917.94	1
7N649	LR167164	BRACKET - TURBOCHARGER	LR167164 BRACKET - TURBOCHARGER	$30.15	1
9A397A	LR107290	HEAT SHIELD - TURBOCHARGER	LR107290 HEAT SHIELD - TURBOCHARGER Top / To: MH153998	$25.34	1
9A397A	LR161654	HEAT SHIELD - TURBOCHARGER	LR161654 HEAT SHIELD - TURBOCHARGER Top / From: MH153999	$31.55	1
9A397B	LR094413	HEAT SHIELD - TURBOCHARGER	LR094413 HEAT SHIELD - TURBOCHARGER Lower / To: MH153240	$32.28	1
9A397B	LR174060	HEAT SHIELD - TURBOCHARGER	LR174060 HEAT SHIELD - TURBOCHARGER Lower / From: MH153241 / To: MH153998	$28.46	1
9A397B	LR161656	HEAT SHIELD - TURBOCHARGER	LR161656 HEAT SHIELD - TURBOCHARGER Lower / From: MH153999	$41.97	1
9A397C	LR094088	HEAT SHIELD - TURBOCHARGER	LR094088 HEAT SHIELD - TURBOCHARGER EXHAUST SIDE, Top / To: LH999999	$50.30	1
9A397C	LR143405	HEAT SHIELD - TURBOCHARGER	LR143405 HEAT SHIELD - TURBOCHARGER EXHAUST SIDE, Top / From: MH000001 / To: NH176745	$45.98	1
9A397C	LR171968	HEAT SHIELD - TURBOCHARGER	LR171968 HEAT SHIELD - TURBOCHARGER EXHAUST SIDE, Top / From: NH176746	$42.72	1
9448	LR094404	GASKET - EXHAUST MANIFOLD	LR094404 GASKET - EXHAUST MANIFOLD With Heatshield	$28.77	1
