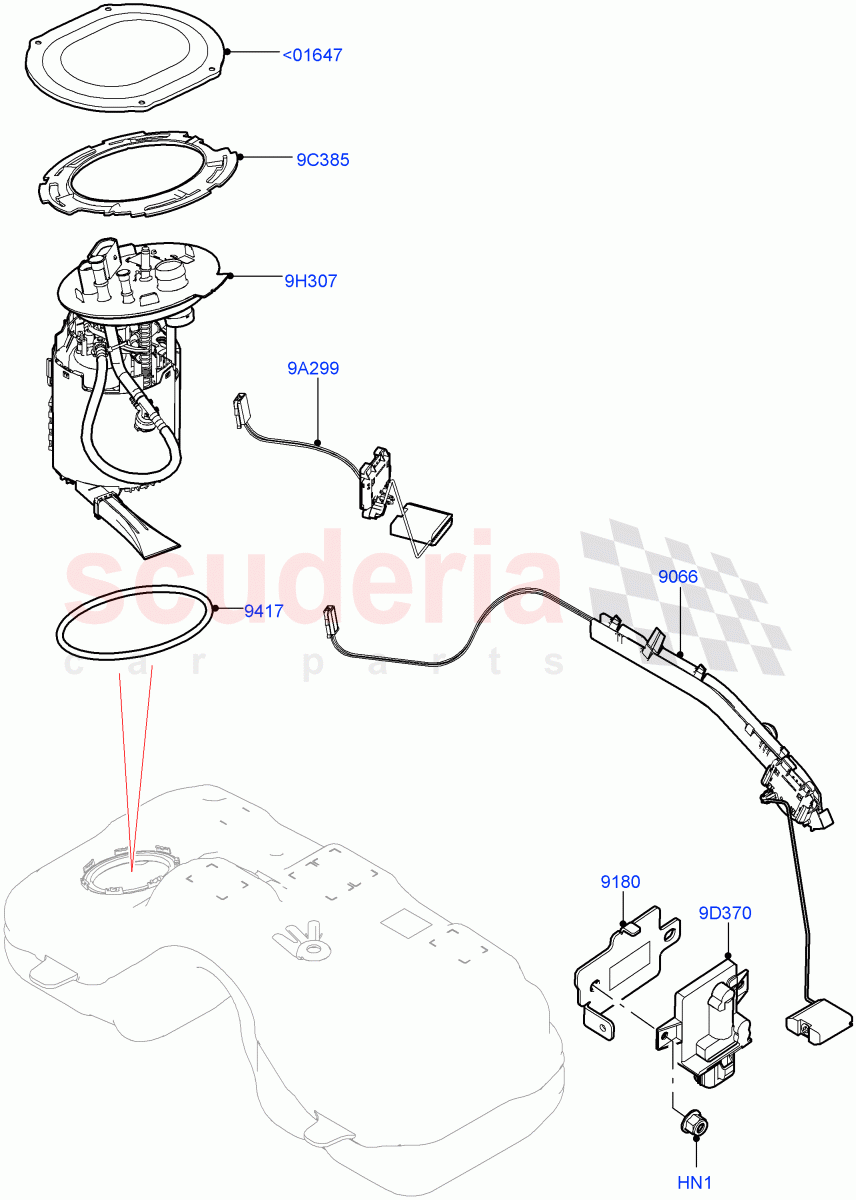

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153415	SENSOR - FUEL LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135237	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133660	SENDER - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082729	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097220	CONTROL - FUEL PUMP DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127415	PUMP - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124972	PLUG - FLOOR PAN	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<01647	LR124972	PLUG - FLOOR PAN	LR124972 PLUG - FLOOR PAN	-	1	Enquire
HN1	FY106046	NUT - HEX.	FY106046 NUT - HEX. Hexagonal Head, M6	-	2	Enquire
9A299	LR133660	SENDER - FUEL TANK	LR133660 SENDER - FUEL TANK RH	-	1	Enquire
9C385	LR082729	RING - RETAINING	LR082729 RING - RETAINING	-	1	Enquire
9D370	LR097220	CONTROL - FUEL PUMP DRIVE	LR097220 CONTROL - FUEL PUMP DRIVE	-	1	Enquire
9H307	LR127415	PUMP - FUEL	LR127415 PUMP - FUEL	-	1	Enquire
9066	LR153415	SENSOR - FUEL LEVEL	LR153415 SENSOR - FUEL LEVEL LH, With Bracket	-	1	Enquire
9180	LR135237	BRACKET	LR135237 BRACKET	-	1	Enquire
9417	LR117476	GASKET	LR117476 GASKET O-Ring	-	1	Enquire
