Thermostat/Housing & Related Parts (2.0L Aj20P4 Petrol Mid Pta, Changsu (China))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Thermostat/Housing & Related Parts (2.0L AJ20P4 Petrol Mid PTA, Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR096839 O-RING $5.82 To Order
Photo Part No Description Price (each) Stock
LR096840 O-RING $12.09 To Order
Photo Part No Description Price (each) Stock
LR096841 O-RING $5.67 To Order
Photo Part No Description Price (each) Stock
LR073689 SCREW $2.27 To Order
Photo Part No Description Price (each) Stock
VYP500080 BOLT AND WASHER - HEX.HEAD $0.69 IN STOCK
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.23 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.55 IN STOCK
Photo Part No Description Price (each) Stock
LR117682 SUPPORT - ENGINE MOUNTING - FRONT $169.37 To Order
LR140267 SUPPORT - ENGINE MOUNTING - FRONT $169.37 To Order
Photo Part No Description Price (each) Stock
LR105592 SEAL - THERMOSTAT $8.28 IN STOCK
Photo Part No Description Price (each) Stock
LR184620 TUBE $88.20 To Order
Photo Part No Description Price (each) Stock
LR115275 THERMOSTAT $136.01 To Order
Photo Part No Description Price (each) Stock
LR118386 TUBE - CONNECTING $51.76 To Order
Photo Part No Description Price (each) Stock
LR092095 HOSE - WATER BY-PASS $42.03 To Order
Photo Part No Description Price (each) Stock
LR105595 SENSOR - ENGINE COOLANT TEMPERATURE $34.73 To Order
Photo Part No Description Price (each) Stock
LR105610 RETAINER - SENSOR CLIP $4.50 To Order
Photo Part No Description Price (each) Stock
LR169925 TUBE - BY-PASS $52.53 To Order
Photo Part No Description Price (each) Stock
LR122716 HOSE - WATER BY-PASS $65.80 To Order
Photo Part No Description Price (each) Stock
LR115276 TUBE - BY-PASS $50.88 To Order
Photo Part No Description Price (each) Stock
LR115232 HOSE - BY-PASS $41.68 To Order
Photo Part No Description Price (each) Stock
LR093484 HOSE - BYPASS VALVE $58.27 To Order
View All

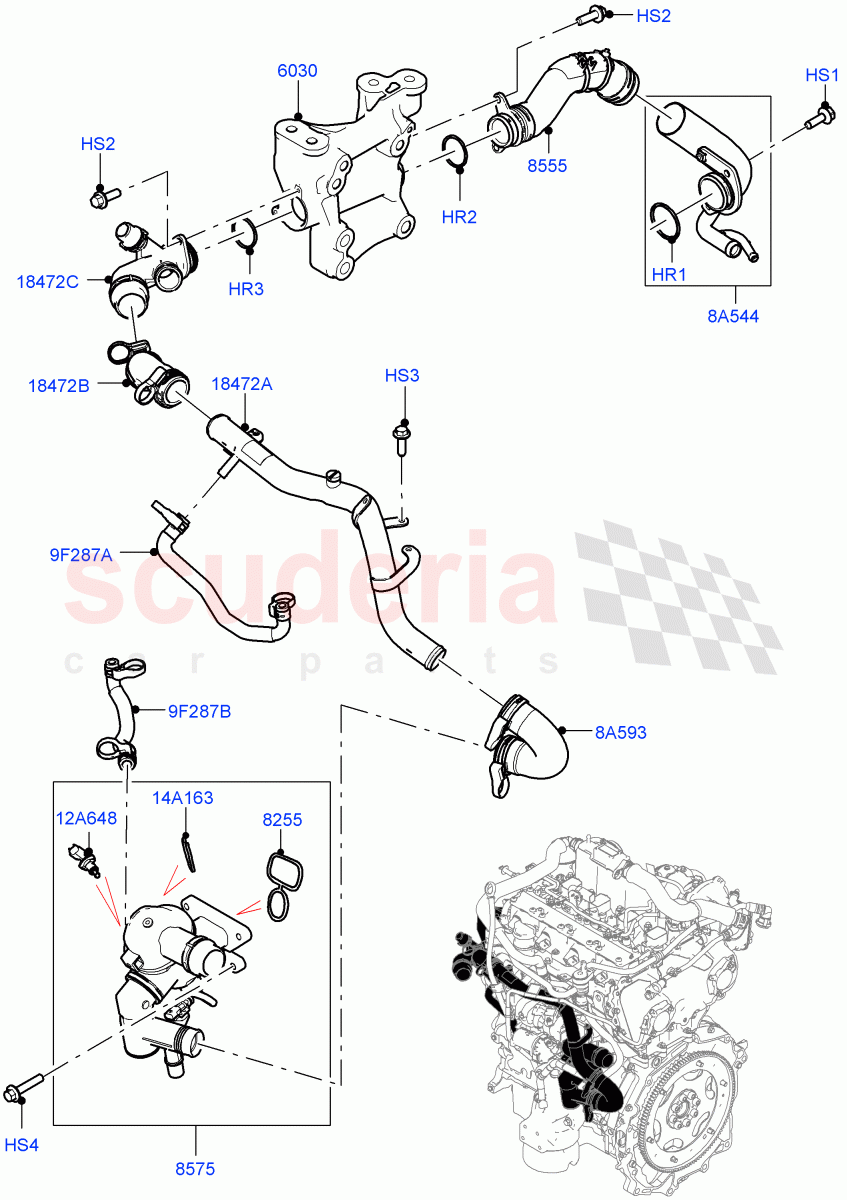

Thermostat/Housing & Related Parts (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR096839
O-RING
Elbow Connector, 		$5.82 1
HR2 LR096840
O-RING 		$12.09 1
HR3 LR096841
O-RING 		$5.67 1
HS1 LR073689
SCREW
Hexagonal Head, M6 X 20MM 		$2.27 2
HS2 VYP500080
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.69 4
HS3 LR071774
SCREW
Hexagonal Head, M6 X 20MM 		$2.23 3
HS4 LR073648
SCREW
Hexagonal Head, M6 x 30MM
IN STOCK 		$2.55 4
8A544 LR118386
TUBE - CONNECTING
Inlet, Water Pump 		$51.76 1
8A593 LR092095
HOSE - WATER BY-PASS
Outlet 		$42.03 1
9F287A LR115232
HOSE - BY-PASS
Outlet, Throttle Air By - Pass 		$41.68 1
9F287B LR093484
HOSE - BYPASS VALVE
Inlet, Throttle Air By - Pass 		$58.27 1
12A648 LR105595
SENSOR - ENGINE COOLANT TEMPERATURE 		$34.73 1
14A163 LR105610
RETAINER - SENSOR CLIP 		$4.50 1
6030 LR117682
SUPPORT - ENGINE MOUNTING - FRONT
Engine Cooling System / To: MG575834 		$169.37 1
6030 LR140267
SUPPORT - ENGINE MOUNTING - FRONT
Engine Cooling System / From: MG575835 		$169.37 1
8255 LR105592
SEAL - THERMOSTAT
Thermostat And Housing Assy
IN STOCK 		$8.28 1
8555 LR184620
TUBE
Rear, To Engine 		$88.20 1
8575 LR115275
THERMOSTAT 		$136.01 1
18472A LR169925
TUBE - BY-PASS
Main 		$52.53 1
18472B LR122716
HOSE - WATER BY-PASS
Middle 		$65.80 1
18472C LR115276
TUBE - BY-PASS
EGR Cooler 		$50.88 1
