Thermostat/Housing & Related Parts (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol Mid PTA, 2.0L AJ20P4 Petrol E100 PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Thermostat/Housing & Related Parts (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol...

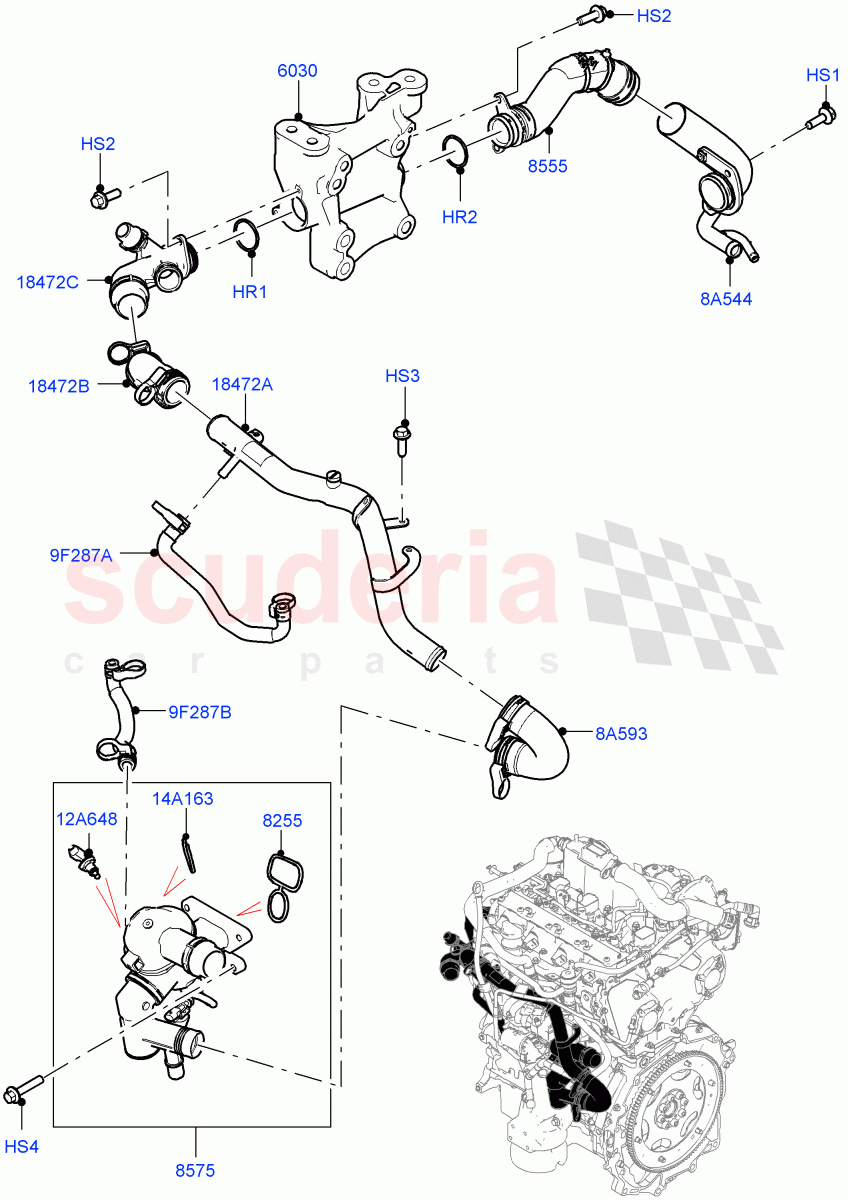

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR096841	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096840	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117682	SUPPORT - ENGINE MOUNTING - FRONT	Enquire	To Order
	LR140267	SUPPORT - ENGINE MOUNTING - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105592	SEAL - THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR184620	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115275	THERMOSTAT	Enquire	To Order
	LR140107	THERMOSTAT	Enquire	To Order
	LR171745	THERMOSTAT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR118386	TUBE - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092095	HOSE - WATER BY-PASS	Enquire	To Order
	LR174183	Hose - Heater Water	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR169925	TUBE - BY-PASS	Enquire	To Order
	LR169925	TUBE - BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122716	HOSE - WATER BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115276	TUBE - BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115232	HOSE - BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093484	HOSE - BYPASS VALVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR096841	O-RING	LR096841 O-RING	-	1	Enquire
HR2	LR096840	O-RING	LR096840 O-RING	-	1	Enquire
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM	-	2	Enquire
HS2	VYP500080	BOLT AND WASHER - HEX.HEAD	VYP500080 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 20MM	-	4	Enquire
HS3	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	-	3	Enquire
HS4	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM	-	4	Enquire
8A544	LR118386	TUBE - CONNECTING	LR118386 TUBE - CONNECTING Inlet, Water Pump, With O-Ring	-	1	Enquire
8A593	LR092095	HOSE - WATER BY-PASS	LR092095 HOSE - WATER BY-PASS Outlet / To: NH177111	-	1	Enquire
8A593	LR174183	Hose - Heater Water	LR174183 Hose - Heater Water Outlet / From: NH177112	-	1	Enquire
9F287A	LR115232	HOSE - BY-PASS	LR115232 HOSE - BY-PASS Outlet, Throttle Air By - Pass	-	1	Enquire
9F287B	LR093484	HOSE - BYPASS VALVE	LR093484 HOSE - BYPASS VALVE Inlet, Throttle Air By - Pass	-	1	Enquire
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE	-	1	Enquire
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP	-	1	Enquire
6030	LR117682	SUPPORT - ENGINE MOUNTING - FRONT	LR117682 SUPPORT - ENGINE MOUNTING - FRONT To: LH111072	-	1	Enquire
6030	LR140267	SUPPORT - ENGINE MOUNTING - FRONT	LR140267 SUPPORT - ENGINE MOUNTING - FRONT From: LH111073	-	1	Enquire
8255	LR105592	SEAL - THERMOSTAT	LR105592 SEAL - THERMOSTAT Thermostat And Housing Assy	-	1	Enquire
8555	LR184620	TUBE	LR184620 TUBE Rear, To Engine	-	1	Enquire
8575	LR115275	THERMOSTAT	LR115275 THERMOSTAT To: LH083668	-	1	Enquire
8575	LR140107	THERMOSTAT	LR140107 THERMOSTAT From: LH083669 / To: NH999999	-	1	Enquire
8575	LR171745	THERMOSTAT	LR171745 THERMOSTAT 2.0L AJ20P4 Petrol E100 PTA / From: PH000001	-	1	Enquire
8575	LR171746	THERMOSTAT	LR171746 THERMOSTAT 2.0L AJ20P4 Petrol Mid PTA / From: PH000001	-	1	Enquire
18472A	LR169925	TUBE - BY-PASS	LR169925 TUBE - BY-PASS Main / To: NH167038	-	1	Enquire
18472A	LR169925	TUBE - BY-PASS	LR169925 TUBE - BY-PASS Main / From: NH167039	-	1	Enquire
18472B	LR122716	HOSE - WATER BY-PASS	LR122716 HOSE - WATER BY-PASS Middle	-	1	Enquire
18472C	LR115276	TUBE - BY-PASS	LR115276 TUBE - BY-PASS EGR Cooler	-	1	Enquire
