Cooling System Pipes And Hoses (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), Active Tranmission Warming) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), Active Tranmission...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR028253	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094134	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115020	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115218	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115208	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115054	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114622	HOSE	Enquire	To Order
	LR133954	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094092	VALVE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114673	HOSE - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114678	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135274	WIRING - TRACTION BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115213	HOSE - TURBOCHARGER TO INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114653	VALVE - COOLANT FLOW CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114544	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115215	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163783	HOSE	Enquire	To Order
	LR163783	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115227	HOSE - OVERFLOW CONTAINER	Enquire	To Order
	LR137723	HOSE - OVERFLOW CONTAINER	Enquire	To Order
	LR163785	HOSE - OVERFLOW CONTAINER	Enquire	To Order

View All

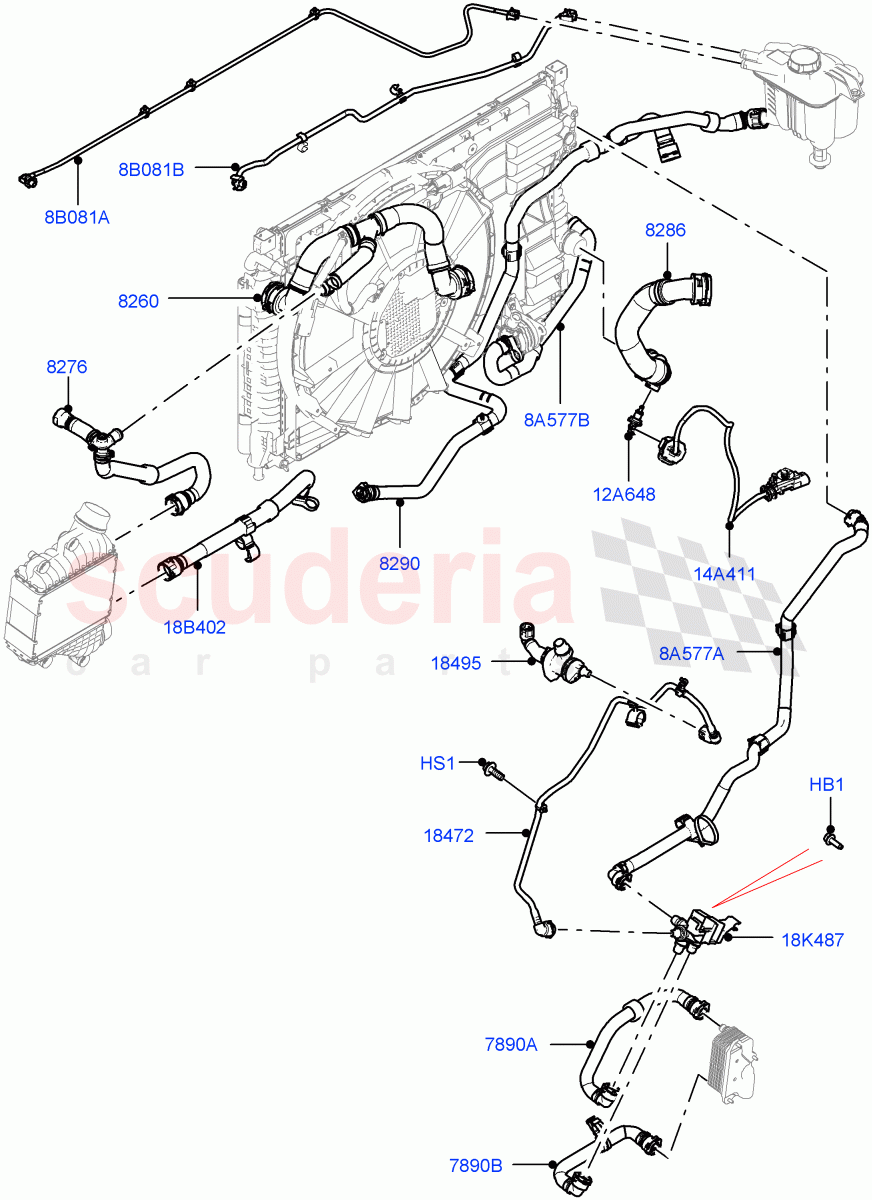

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR028253	BOLT	LR028253 BOLT M6 X 16MM	-	1	Enquire
HS1	LR094134	SCREW	LR094134 SCREW M6X16	-	1	Enquire
8A577A	LR114544	HOSE - COOLING SYSTEM	LR114544 HOSE - COOLING SYSTEM Radiator To Transmission Warning Valve	-	1	Enquire
8A577B	LR115215	HOSE	LR115215 HOSE Auxiliary Water Pump Assembly, Outlet	-	1	Enquire
8B081A	LR163783	HOSE	LR163783 HOSE Radiator To Expansion Tank Bleed / To: NH169081	-	1	Enquire
8B081A	LR163783	HOSE	LR163783 HOSE Radiator To Expansion Tank Bleed / From: NH169082	-	1	Enquire
8B081B	LR115227	HOSE - OVERFLOW CONTAINER	LR115227 HOSE - OVERFLOW CONTAINER From Engine To Expansion Tank / To: LH065320	-	1	Enquire
8B081B	LR137723	HOSE - OVERFLOW CONTAINER	LR137723 HOSE - OVERFLOW CONTAINER From Engine To Expansion Tank / From: LH065321 / To: NH169081	-	1	Enquire
8B081B	LR163785	HOSE - OVERFLOW CONTAINER	LR163785 HOSE - OVERFLOW CONTAINER From Engine To Expansion Tank / From: NH169082	-	1	Enquire
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE	-	1	Enquire
14A411	LR135274	WIRING - TRACTION BATTERY	LR135274 WIRING - TRACTION BATTERY For Sensor	-	1	Enquire
18B402	LR115213	HOSE - TURBOCHARGER TO INTERCOOLER	LR115213 HOSE - TURBOCHARGER TO INTERCOOLER From Intercooler To Water Pump	-	1	Enquire
18K487	LR114653	VALVE - COOLANT FLOW CONTROL	LR114653 VALVE - COOLANT FLOW CONTROL Heater Water Control	-	1	Enquire
7890A	LR114673	HOSE - OIL COOLER	LR114673 HOSE - OIL COOLER Inlet	-	1	Enquire
7890B	LR114678	TUBE	LR114678 TUBE Outlet	-	1	Enquire
8260	LR115020	HOSE - RADIATOR	LR115020 HOSE - RADIATOR Radiator, Upper	-	1	Enquire
8276	LR115218	HOSE - WATER	LR115218 HOSE - WATER Intercooler To Radiator	-	1	Enquire
8286	LR115208	HOSE - RADIATOR	LR115208 HOSE - RADIATOR Lower, Radiator	-	1	Enquire
8290	LR115054	TUBE	LR115054 TUBE Expansion Tank, Outlet	-	1	Enquire
18472	LR114622	HOSE	LR114622 HOSE Heater Water Control, To Valve / To: LH021387	-	1	Enquire
18472	LR133954	HOSE	LR133954 HOSE Heater Water Control, To Valve / From: LH021388	-	1	Enquire
18495	LR094092	VALVE - HEATER WATER	LR094092 VALVE - HEATER WATER Heater Water Control	-	1	Enquire
