Turbocharger (Turbocharger Related Parts) (2.0L AJ20D4 Diesel High PTA, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Turbocharger (Turbocharger Related Parts) (2.0L AJ20D4 Diesel High PTA, Halewood (UK))

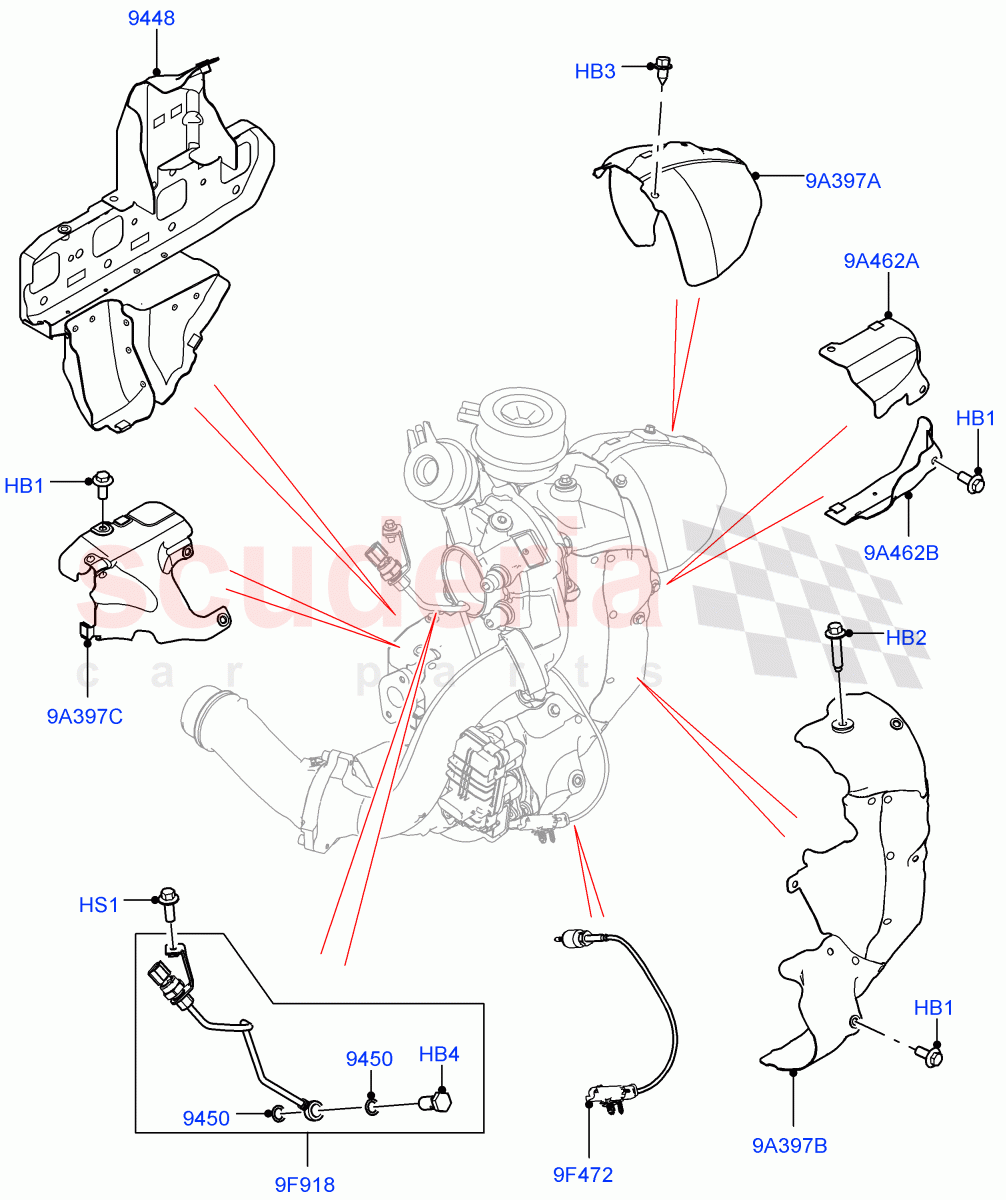

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR078918	BOLT - HEX. HEAD - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073739	BOLT	Enquire	To Order
	LR091557	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094523	BOLT - BANJO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117536	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124789	GASKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074128	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127945	SENSOR - EXHAUST GAS PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094052	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094532	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094533	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073661	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094516	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR078918	BOLT - HEX. HEAD - FLANGED	LR078918 BOLT - HEX. HEAD - FLANGED Hi temp, M6 X 14MM, Shield	-	6	Enquire
HB2	LR073739	BOLT	LR073739 BOLT M6 X 25MM / To: LH083668	-	1	Enquire
HB2	LR091557	BOLT	LR091557 BOLT M6 X 25MM / From: LH083669	-	1	Enquire
HB3	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield	-	2	Enquire
HB4	LR094523	BOLT - BANJO	LR094523 BOLT - BANJO Banjo Bolt, Exhaust Gas Pressure	-	1	Enquire
HS1	LR073686	SCREW	LR073686 SCREW For Sensor, M6 X 16MM	-	1	Enquire
9A397A	LR094052	HEAT SHIELD - TURBOCHARGER	LR094052 HEAT SHIELD - TURBOCHARGER Low Pressure Turbocharger, Upper	-	1	Enquire
9A397B	LR094532	HEAT SHIELD - TURBOCHARGER	LR094532 HEAT SHIELD - TURBOCHARGER Turbocharger Assembly	-	1	Enquire
9A397C	LR094533	HEAT SHIELD - TURBOCHARGER	LR094533 HEAT SHIELD - TURBOCHARGER LH, Exhaust Manifold	-	1	Enquire
9A462A	LR073661	SHIELD - EXHAUST MANIFOLD HEAT	LR073661 SHIELD - EXHAUST MANIFOLD HEAT RH, Exhaust Manifold, Upper	-	1	Enquire
9A462B	LR094516	SHIELD - EXHAUST MANIFOLD HEAT	LR094516 SHIELD - EXHAUST MANIFOLD HEAT RH, Exhaust Manifold, Lower	-	1	Enquire
9F472	LR074128	SENSOR - EXHAUST GAS - TEMPERATURE	LR074128 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature	-	1	Enquire
9F918	LR127945	SENSOR - EXHAUST GAS PRESSURE	LR127945 SENSOR - EXHAUST GAS PRESSURE	-	1	Enquire
9448	LR117536	GASKET - EXHAUST MANIFOLD	LR117536 GASKET - EXHAUST MANIFOLD Heat Shield, Manifold To Cylinder Head	-	1	Enquire
9450	LR124789	GASKET - OIL TUBE	LR124789 GASKET - OIL TUBE Banjo Washer, Requires 2 Pcs Per Banjo-Bolt	-	2	Enquire
