Fuel Filter (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), Low Engine Cooling, Fuel Tank-Diesel, 2.0L AJ20D4 Diesel LF PTA, High Engine Cooling, Medium Engine Cooling) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Fuel Filter (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), Low Engine Cooling, Fuel Tank-Diesel, 2.0L...

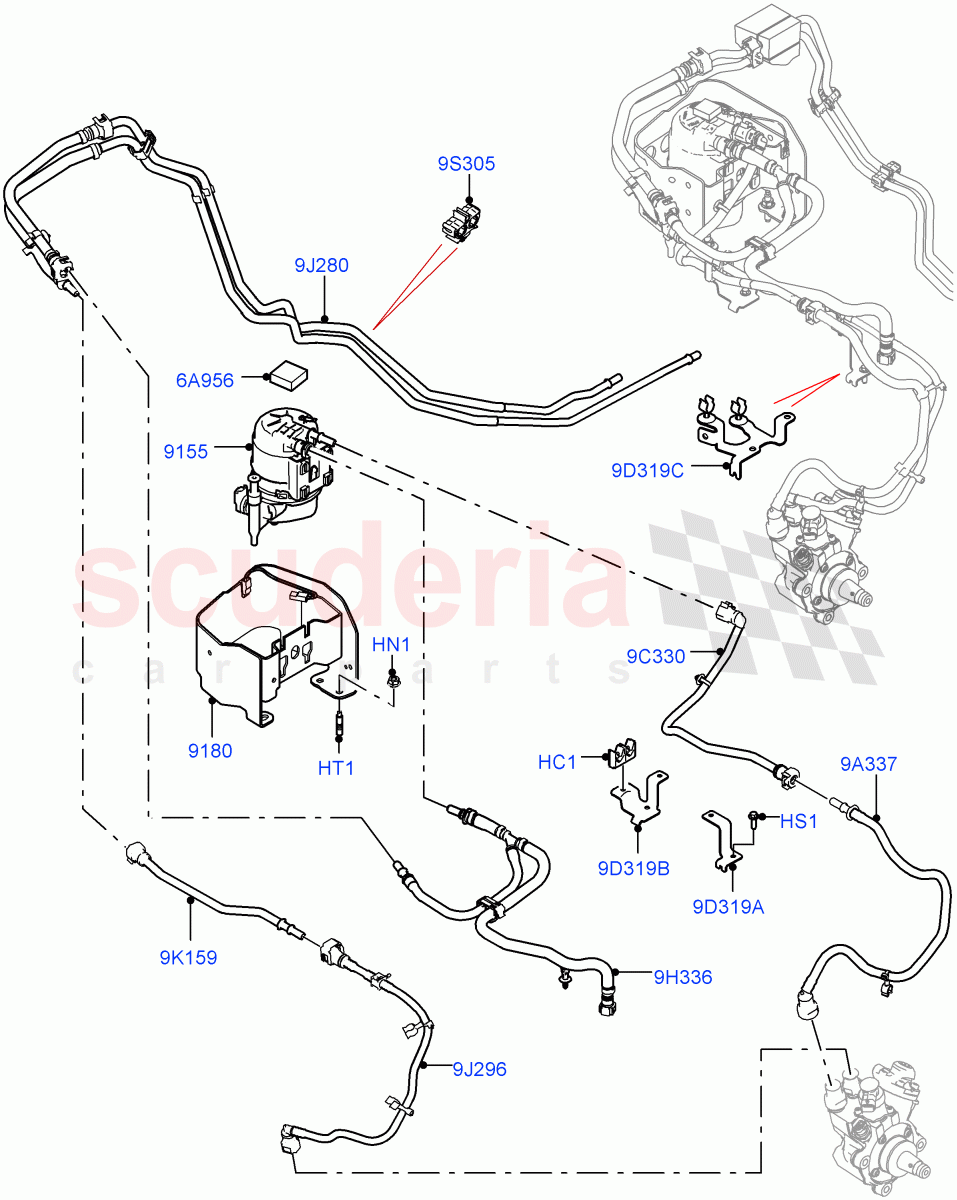

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR094259	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019197	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155579	FILTER - FUEL - PRIMARY	Enquire	To Order
	LR155579	FILTER - FUEL - PRIMARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116053	BRACKET - FUEL FILTER	Enquire	To Order
	LR137039	BRACKET - FUEL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079995	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083488	TUBE - FUEL FILTER TO FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072169	TUBE - FUEL FILTER TO FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR119642	TUBE	Enquire	To Order
	LR140514	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115336	PIPE - FUEL	Enquire	To Order
	LR139135	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095136	TUBE - FUEL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072004	TUBE - FUEL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117831	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071922	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121075	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073771	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR094259	CLIP - HOSE	LR094259 CLIP - HOSE Clip 8 - 13 X 2 X 0.7	-	1	Enquire
HN1	LR019197	NUT - FLANGED	LR019197 NUT - FLANGED Domed Type, M8	-	3	Enquire
HS1	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	-	2	Enquire
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM	-	3	Enquire
6A956	LR079995	FOAM PAD - ENERGY ABSORBING	LR079995 FOAM PAD - ENERGY ABSORBING	-	1	Enquire
9A337	LR083488	TUBE - FUEL FILTER TO FUEL PUMP	LR083488 TUBE - FUEL FILTER TO FUEL PUMP Fuel Filter To High Pressure Pump, Pump Side	-	1	Enquire
9C330	LR072169	TUBE - FUEL FILTER TO FUEL PUMP	LR072169 TUBE - FUEL FILTER TO FUEL PUMP Fuel Filter To High Pressure Pump, Middle	-	1	Enquire
9D319A	LR071922	BRACKET - SUPPORT	LR071922 BRACKET - SUPPORT RH	-	1	Enquire
9D319B	LR121075	BRACKET - SUPPORT	LR121075 BRACKET - SUPPORT LH	-	1	Enquire
9D319C	LR073771	BRACKET - FUEL TUBE SUPPORT	LR073771 BRACKET - FUEL TUBE SUPPORT For Fuel Pump, Inlet Pipe	-	1	Enquire
9H336	LR119642	TUBE	LR119642 TUBE From Fuel Tank To Fuel Filter / To: LH121820	-	1	Enquire
9H336	LR140514	TUBE	LR140514 TUBE From Fuel Tank To Fuel Filter / From: LH121821	-	1	Enquire
9J280	LR115336	PIPE - FUEL	LR115336 PIPE - FUEL Fuel Supply And Fuel Return / To: LH072004	-	1	Enquire
9J280	LR139135	PIPE - FUEL	LR139135 PIPE - FUEL Fuel Supply And Fuel Return / From: LH072005	-	1	Enquire
9J296	LR095136	TUBE - FUEL RETURN	LR095136 TUBE - FUEL RETURN From High Pressure Fuel Pump To Fuel Tank, Pump Side	-	1	Enquire
9K159	LR072004	TUBE - FUEL RETURN	LR072004 TUBE - FUEL RETURN From High Pressure Fuel Pump To Fuel Tank, Middle	-	1	Enquire
9S305	LR117831	CLIP	LR117831 CLIP Clip-Fuel Tube(Dual Latch)	-	3	Enquire
9155	LR155579	FILTER - FUEL - PRIMARY	LR155579 FILTER - FUEL - PRIMARY When Ordering Filter Please Order Also Foam Pad LR079995 / To: MH147960	-	1	Enquire
9155	LR155579	FILTER - FUEL - PRIMARY	LR155579 FILTER - FUEL - PRIMARY When Ordering Filter Please Order Also Foam Pad LR079995 / From: MH147961	-	1	Enquire
9180	LR116053	BRACKET - FUEL FILTER	LR116053 BRACKET - FUEL FILTER With Earthing Cable / To: LH058043	-	1	Enquire
9180	LR137039	BRACKET - FUEL FILTER	LR137039 BRACKET - FUEL FILTER With Earthing Cable / From: LH058044	-	1	Enquire
