Fuel Filter (2.0L AJ20D4 Diesel High PTA, Halewood (UK), Fuel Tank-Diesel With Filters, 2.0L AJ20D4 Diesel LF PTA, 2.0L AJ20D4 Diesel Mid PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Fuel Filter (2.0L AJ20D4 Diesel High PTA, Halewood (UK), Fuel Tank-Diesel With Filters, 2.0L AJ20D4...

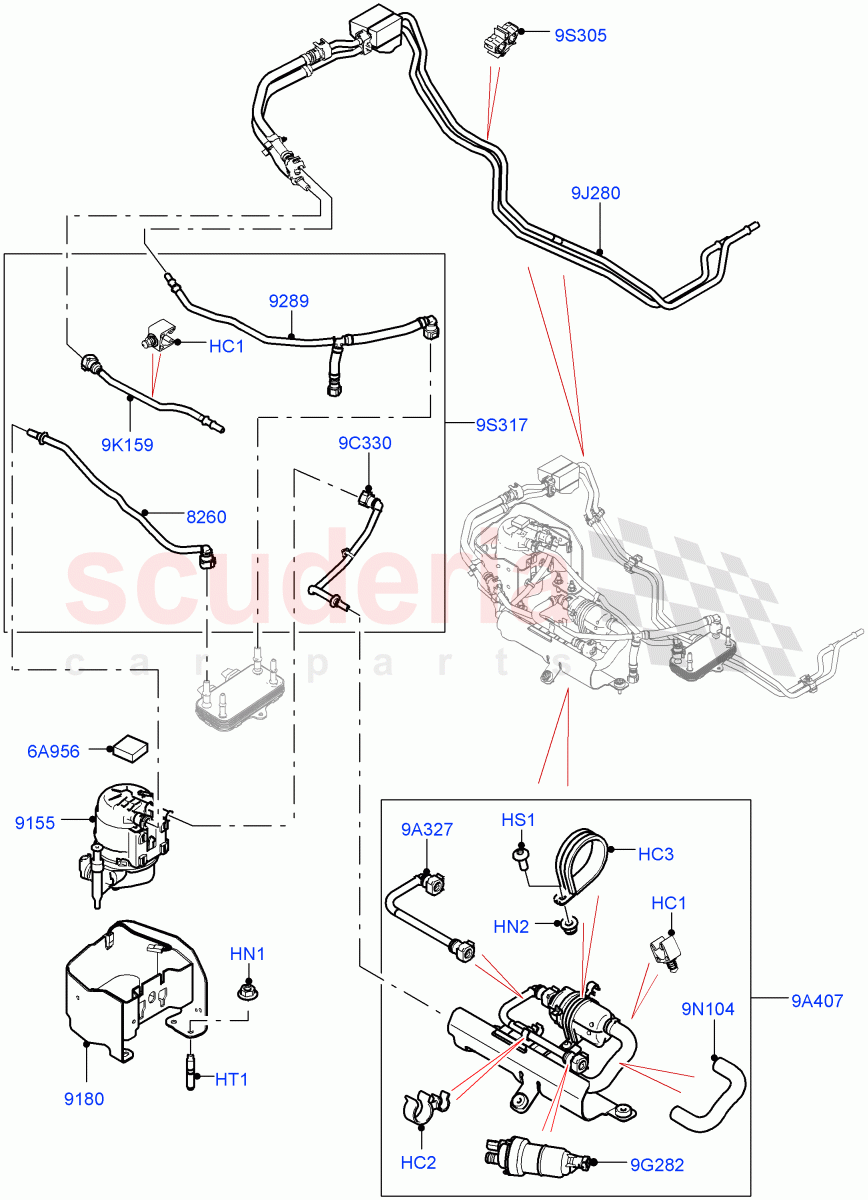

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049401	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105597	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019197	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043873	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084092	TUBE - FUEL FILTER TO FUEL COOLER	Enquire	To Order
	LR110379	TUBE - FUEL FILTER TO FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155579	FILTER - FUEL - PRIMARY	Enquire	To Order
	LR155579	FILTER - FUEL - PRIMARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116053	BRACKET - FUEL FILTER	Enquire	To Order
	LR137039	BRACKET - FUEL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084123	TUBE - FUEL FEED	Enquire	To Order
	LR114310	TUBE - FUEL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079995	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110242	TUBE - FUEL FILTER TO FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154224	FUEL PUMP AND FILTER	Enquire	To Order
	LR154224	FUEL PUMP AND FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095802	TUBE - FUEL FILTER TO FUEL PUMP	Enquire	To Order
	LR110380	TUBE - FUEL FILTER TO FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154223	PUMP - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115336	PIPE - FUEL	Enquire	To Order
	LR139135	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084122	TUBE - FUEL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089534	TUBE - FUEL FILTER TO FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117831	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095803	KIT - FUEL INLET/OUTLET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE For Fuel Tube	-	2	Enquire
HC2	LR049401	CLIP - DOUBLE	LR049401 CLIP - DOUBLE Double	-	1	Enquire
HC3	LR105597	CLIP	LR105597 CLIP For Fuel Filter	-	1	Enquire
HN1	LR019197	NUT - FLANGED	LR019197 NUT - FLANGED Domed Type, M8	-	3	Enquire
HN2	FY106046	NUT - HEX.	FY106046 NUT - HEX. Hexagonal Head, M6	-	3	Enquire
HS1	LR043873	SCREW - PAN - TORX	LR043873 SCREW - PAN - TORX M6 X 16MM, Torx	-	3	Enquire
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM	-	3	Enquire
6A956	LR079995	FOAM PAD - ENERGY ABSORBING	LR079995 FOAM PAD - ENERGY ABSORBING	-	1	Enquire
9A327	LR110242	TUBE - FUEL FILTER TO FUEL PUMP	LR110242 TUBE - FUEL FILTER TO FUEL PUMP From Auxiliary Fuel Filter To High Pressure Fuel Pump	-	1	Enquire
9A407	LR154224	FUEL PUMP AND FILTER	LR154224 FUEL PUMP AND FILTER To: MH121894	-	1	Enquire
9A407	LR154224	FUEL PUMP AND FILTER	LR154224 FUEL PUMP AND FILTER From: MH121895	-	1	Enquire
9C330	LR095802	TUBE - FUEL FILTER TO FUEL PUMP	LR095802 TUBE - FUEL FILTER TO FUEL PUMP 2.0L AJ20D4 Diesel LF PTA / From Fuel Filter To Auxiliary Fuel Pump	-	1	Enquire
9C330	LR110380	TUBE - FUEL FILTER TO FUEL PUMP	LR110380 TUBE - FUEL FILTER TO FUEL PUMP 2.0L AJ20D4 Diesel High PTA / From Fuel Filter To Auxiliary Fuel Pump	-	1	Enquire
9G282	LR154223	PUMP - FUEL	LR154223 PUMP - FUEL	-	1	Enquire
9J280	LR115336	PIPE - FUEL	LR115336 PIPE - FUEL Fuel Supply And Fuel Return / To: LH072004	-	1	Enquire
9J280	LR139135	PIPE - FUEL	LR139135 PIPE - FUEL Fuel Supply And Fuel Return / From: LH072005	-	1	Enquire
9K159	LR084122	TUBE - FUEL RETURN	LR084122 TUBE - FUEL RETURN From High Pressure Fuel Pump To Fuel Tank, Middle	-	1	Enquire
9N104	LR089534	TUBE - FUEL FILTER TO FUEL PUMP	LR089534 TUBE - FUEL FILTER TO FUEL PUMP From Auxiliary Fuel Pump To Auxiliary Fuel Filter	-	1	Enquire
9S305	LR117831	CLIP	LR117831 CLIP Clip-Fuel Tube(Dual Latch)	-	3	Enquire
9S317	LR095803	KIT - FUEL INLET/OUTLET	LR095803 KIT - FUEL INLET/OUTLET 2.0L AJ20D4 Diesel LF PTA / 4 Piece Kit	-	1	Enquire
8260	LR084092	TUBE - FUEL FILTER TO FUEL COOLER	LR084092 TUBE - FUEL FILTER TO FUEL COOLER 2.0L AJ20D4 Diesel LF PTA / From Fuel Cooler To Fuel Filter	-	1	Enquire
8260	LR110379	TUBE - FUEL FILTER TO FUEL COOLER	LR110379 TUBE - FUEL FILTER TO FUEL COOLER 2.0L AJ20D4 Diesel High PTA / From Fuel Cooler To Fuel Filter	-	1	Enquire
9155	LR155579	FILTER - FUEL - PRIMARY	LR155579 FILTER - FUEL - PRIMARY When Ordering Filter Please Order Also Foam Pad LR079995 / To: MH147960	-	1	Enquire
9155	LR155579	FILTER - FUEL - PRIMARY	LR155579 FILTER - FUEL - PRIMARY When Ordering Filter Please Order Also Foam Pad LR079995 / From: MH147961	-	1	Enquire
9180	LR116053	BRACKET - FUEL FILTER	LR116053 BRACKET - FUEL FILTER With Earthing Cable / To: LH058043	-	1	Enquire
9180	LR137039	BRACKET - FUEL FILTER	LR137039 BRACKET - FUEL FILTER With Earthing Cable / From: LH058044	-	1	Enquire
9289	LR084123	TUBE - FUEL FEED	LR084123 TUBE - FUEL FEED 2.0L AJ20D4 Diesel LF PTA / Fuel Cooler Inlet	-	1	Enquire
9289	LR114310	TUBE - FUEL FEED	LR114310 TUBE - FUEL FEED 2.0L AJ20D4 Diesel High PTA / Fuel Cooler Inlet	-	1	Enquire
