Side Trim (2 Door Convertible, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Side Trim (2 Door Convertible, Halewood (UK))

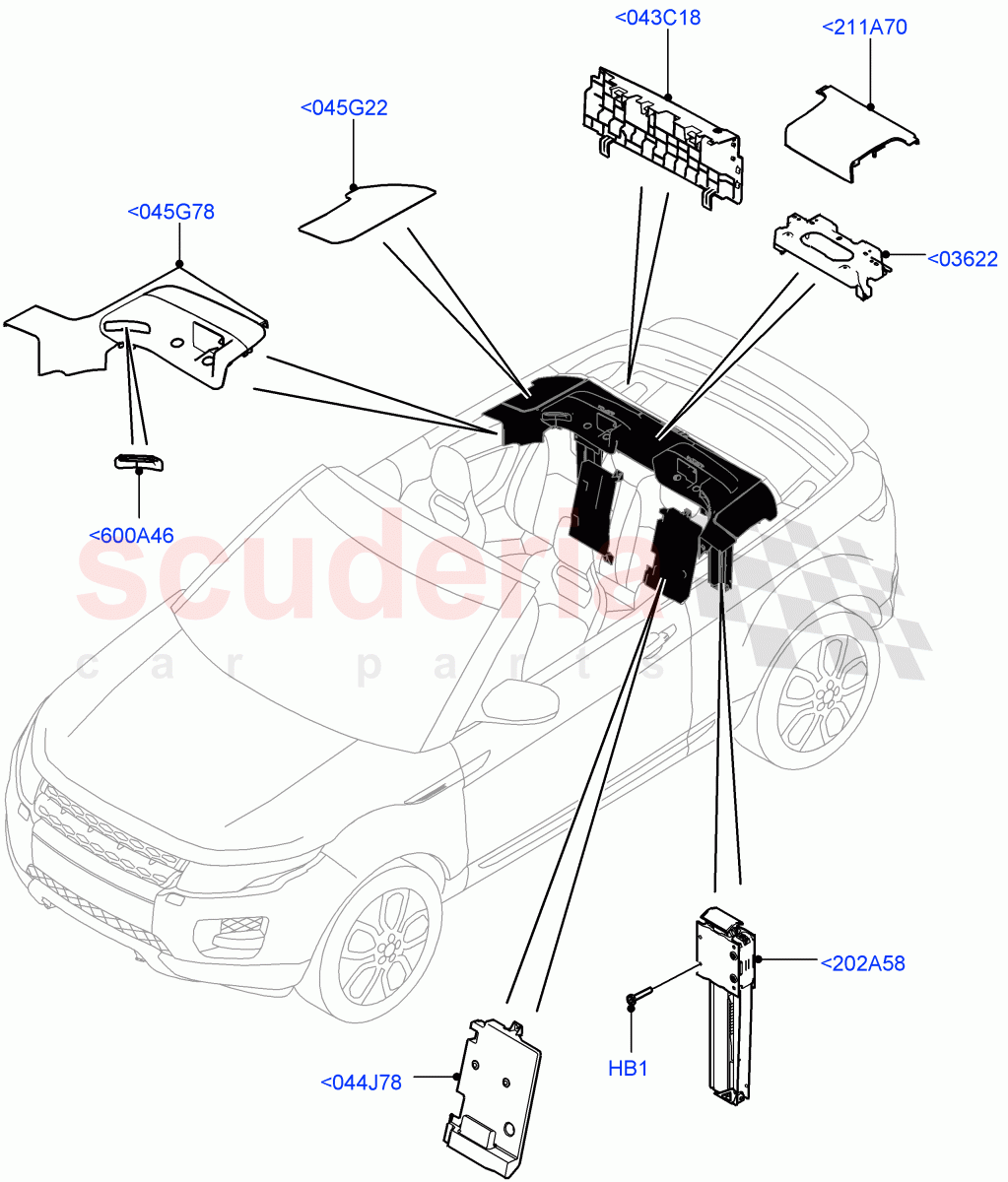

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074901	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075171	MOULDING - BULKHEAD SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071199	HOD - PARCEL SHELF CARPET	Enquire	To Order
	LR071200	HOD - PARCEL SHELF CARPET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075648	COVER - ADDITIONAL FUSE BOX	Enquire	To Order
	LR075649	COVER - ADDITIONAL FUSE BOX	Enquire	To Order
	LR099948	COVER - ADDITIONAL FUSE BOX	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR071212	FLAP - CONVERTIBLE ROOF	Enquire	To Order
	LR071213	FLAP - CONVERTIBLE ROOF	Enquire	To Order
	LR071214	FLAP - CONVERTIBLE ROOF	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR074693	BULKHEAD - MOULDING	Enquire	To Order
	LR074694	BULKHEAD - MOULDING	Enquire	To Order
	LR075135	BULKHEAD - MOULDING	Enquire	To Order

...and 45 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR074968	ROLL OVER PROTECTION BAR	Enquire	To Order
	LR094096	ROLLOVER PROTECTION BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071208	BULKHEAD - CENTER	Enquire	To Order
	LR071209	BULKHEAD - CENTER	Enquire	To Order
	LR071210	BULKHEAD - CENTER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR071170	COVER - SEAT BELT MOUNTING	Enquire	To Order
	LR071173	COVER - SEAT BELT MOUNTING	Enquire	To Order
	LR092936	COVER - SEAT BELT MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<043C18	LR071199	HOD - PARCEL SHELF CARPET	LR071199 HOD - PARCEL SHELF CARPET RH	-	1	Enquire
<043C18	LR071200	HOD - PARCEL SHELF CARPET	LR071200 HOD - PARCEL SHELF CARPET LH	-	1	Enquire
<044J78	LR075648	COVER - ADDITIONAL FUSE BOX	LR075648 COVER - ADDITIONAL FUSE BOX RH / To: HH999999	-	1	Enquire
<044J78	LR075649	COVER - ADDITIONAL FUSE BOX	LR075649 COVER - ADDITIONAL FUSE BOX LH	-	1	Enquire
<044J78	LR099948	COVER - ADDITIONAL FUSE BOX	LR099948 COVER - ADDITIONAL FUSE BOX RH / From: JH000001 / To: JH285066	-	1	Enquire
<044J78	LR111362	COVER - ADDITIONAL FUSE BOX	LR111362 COVER - ADDITIONAL FUSE BOX RH / From: JH285067	-	1	Enquire
<045G22	LR071212	FLAP - CONVERTIBLE ROOF	LR071212 FLAP - CONVERTIBLE ROOF I/P Facia Contrast - Lunar, PVC/Windsor Door Trim Panel / RH	-	1	Enquire
<045G22	LR071213	FLAP - CONVERTIBLE ROOF	LR071213 FLAP - CONVERTIBLE ROOF I/P Facia Contrast - Ebony Black, PVC/Taurus Door Trim Panel / RH	-	1	Enquire
<045G22	LR071214	FLAP - CONVERTIBLE ROOF	LR071214 FLAP - CONVERTIBLE ROOF I/P Facia Contrast - Lunar, Premium Leather / RH	-	1	Enquire
<045G22	LR071215	FLAP - CONVERTIBLE ROOF	LR071215 FLAP - CONVERTIBLE ROOF I/P Facia Contrast - Ebony Black, Premium Leather / RH	-	1	Enquire
<045G22	LR071216	FLAP - CONVERTIBLE ROOF	LR071216 FLAP - CONVERTIBLE ROOF I/P Facia Contrast - Lunar, PVC Door Trim Panel / LH	-	1	Enquire
<045G22	LR071217	FLAP - CONVERTIBLE ROOF	LR071217 FLAP - CONVERTIBLE ROOF I/P Facia Contrast - Ebony Black, PVC Door Trim Panel / LH	-	1	Enquire
<045G22	LR071218	FLAP - CONVERTIBLE ROOF	LR071218 FLAP - CONVERTIBLE ROOF I/P Facia Contrast - Lunar, Premium Leather / LH	-	1	Enquire
<045G22	LR071219	FLAP - CONVERTIBLE ROOF	LR071219 FLAP - CONVERTIBLE ROOF I/P Facia Contrast - Ebony Black, Premium Leather / LH	-	1	Enquire
<045G78	LR074693	BULKHEAD - MOULDING	LR074693 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC Door Trim Panel / RH / To: HH169844	-	1	Enquire
<045G78	LR074694	BULKHEAD - MOULDING	LR074694 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC/Taurus Door Trim Panel / RH / To: HH169844	-	1	Enquire
<045G78	LR075135	BULKHEAD - MOULDING	LR075135 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, Premium Leather / RH / To: HH169844	-	1	Enquire
<045G78	LR075136	BULKHEAD - MOULDING	LR075136 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, Premium Leather / RH / To: HH169844	-	1	Enquire
<045G78	LR074691	BULKHEAD - MOULDING	LR074691 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC/Taurus Door Trim Panel / LH / To: HH169479	-	1	Enquire
<045G78	LR074692	BULKHEAD - MOULDING	LR074692 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC Door Trim Panel / LH / To: HH169479	-	1	Enquire
<045G78	LR075137	BULKHEAD - MOULDING	LR075137 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, Premium Leather / LH / To: HH169479	-	1	Enquire
<045G78	LR075138	BULKHEAD - MOULDING	LR075138 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, Premium Leather / LH / To: HH169479	-	1	Enquire
<045G78	LR091729	BULKHEAD - MOULDING	LR091729 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC/Taurus Door Trim Panel / RH / From: HH169845 / To: HH178589	-	1	Enquire
<045G78	LR091730	BULKHEAD - MOULDING	LR091730 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC Door Trim Panel / RH / From: HH169845 / To: HH178589	-	1	Enquire
<045G78	LR092930	BULKHEAD - MOULDING	LR092930 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC Door Trim Panel / RH / From: HH178590 / To: HH199700	-	1	Enquire
<045G78	LR092931	BULKHEAD - MOULDING	LR092931 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC/Windsor Door Trim Panel / RH / From: HH178590 / To: HH199700	-	1	Enquire
<045G78	LR091731	BULKHEAD - MOULDING	LR091731 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, Premium Leather / RH / From: HH169845 / To: HH180048	-	1	Enquire
<045G78	LR091732	BULKHEAD - MOULDING	LR091732 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, Premium Leather / RH / From: HH169845 / To: HH180048	-	1	Enquire
<045G78	LR092928	BULKHEAD - MOULDING	LR092928 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, Premium Leather / RH / From: HH180049 / To: HH199710	-	1	Enquire
<045G78	LR092929	BULKHEAD - MOULDING	LR092929 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, Premium Leather / RH / From: HH180049 / To: HH199710	-	1	Enquire
<045G78	LR091733	BULKHEAD - MOULDING	LR091733 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC Door Trim Panel / LH / From: HH169480 / To: HH178589	-	1	Enquire
<045G78	LR091734	BULKHEAD - MOULDING	LR091734 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC/Windsor Door Trim Panel / LH / From: HH169480 / To: HH178589	-	1	Enquire
<045G78	LR092932	BULKHEAD - MOULDING	LR092932 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC Door Trim Panel / LH / From: HH178590 / To: HH199700	-	1	Enquire
<045G78	LR092933	BULKHEAD - MOULDING	LR092933 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC/Windsor Door Trim Panel / LH / From: HH178590 / To: HH199700	-	1	Enquire
<045G78	LR091735	BULKHEAD - MOULDING	LR091735 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, Premium Leather / LH / From: HH169480 / To: HH180048	-	1	Enquire
<045G78	LR091736	BULKHEAD - MOULDING	LR091736 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, Premium Leather / LH / From: HH169480 / To: HH180048	-	1	Enquire
<045G78	LR092934	BULKHEAD - MOULDING	LR092934 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, Premium Leather / LH / From: HH180049 / To: HH199710	-	1	Enquire
<045G78	LR092935	BULKHEAD - MOULDING	LR092935 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, Premium Leather / LH / From: HH180049 / To: HH199710	-	1	Enquire
<045G78	LR111331	BULKHEAD - MOULDING	LR111331 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC Door Trim Panel / RH / From: JH313819	-	1	Enquire
<045G78	LR111332	BULKHEAD - MOULDING	LR111332 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC/Windsor Door Trim Panel / RH / From: JH313819	-	1	Enquire
<045G78	LR111334	BULKHEAD - MOULDING	LR111334 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, Premium Leather / RH / From: JH313809	-	1	Enquire
<045G78	LR111336	BULKHEAD - MOULDING	LR111336 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC Door Trim Panel / LH / From: JH313819	-	1	Enquire
<045G78	LR111337	BULKHEAD - MOULDING	LR111337 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC/Windsor Door Trim Panel / LH / From: JH313819	-	1	Enquire
<045G78	LR111339	BULKHEAD - MOULDING	LR111339 BULKHEAD - MOULDING 2 Door Convertible, I/P Facia Contrast - Lunar, Premium Leather / LH / From: JH313809	-	1	Enquire
<045G78	LR111340	BULKHEAD - MOULDING	LR111340 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, Premium Leather / LH / From: JH313809	-	1	Enquire
<045G78	LR111335	BULKHEAD - MOULDING	LR111335 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, Premium Leather / RH / From: JH313809	-	1	Enquire
<045G78	LR098617	BULKHEAD - MOULDING	LR098617 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC Door Trim Panel / RH / From: JH313809 / To: JH313818	-	1	Enquire
<045G78	LR098616	BULKHEAD - MOULDING	LR098616 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC/Windsor Door Trim Panel / RH / From: JH313809 / To: JH313818	-	1	Enquire
<045G78	LR098649	BULKHEAD - MOULDING	LR098649 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC/Windsor Door Trim Panel / LH / From: JH313809 / To: JH313818	-	1	Enquire
<045G78	LR098651	BULKHEAD - MOULDING	LR098651 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC Door Trim Panel / LH / From: JH313809 / To: JH313818	-	1	Enquire
<045G78	LR094471	BULKHEAD - MOULDING	LR094471 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC/Taurus Door Trim Panel / RH / From: HH199701 / To: JH313808	-	1	Enquire
<045G78	LR094470	BULKHEAD - MOULDING	LR094470 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC/Windsor Door Trim Panel / RH / From: HH199701 / To: JH313808	-	1	Enquire
<045G78	LR094467	BULKHEAD - MOULDING	LR094467 BULKHEAD - MOULDING I/P Facia Contrast - Lunar, PVC/Windsor Door Trim Panel / LH / From: HH199701 / To: JH313808	-	1	Enquire
<045G78	LR094468	BULKHEAD - MOULDING	LR094468 BULKHEAD - MOULDING I/P Facia Contrast - Ebony Black, PVC/Taurus Door Trim Panel / LH / From: HH199701 / To: JH313808	-	1	Enquire
<045G78	LR094477	BULKHEAD - MOULDING	LR094477 BULKHEAD - MOULDING 2 Door Convertible, I/P Facia Contrast - Lunar, Premium Leather / LH / From: HH199711 / To: JH312808	-	1	Enquire
<045G78	LR098652	BULKHEAD - MOULDING	LR098652 BULKHEAD - MOULDING 2 Door Convertible, I/P Facia Contrast - Lunar, Premium Leather / LH / From: JH312809 / To: JH313808	-	1	Enquire
<045G78	LR094479	BULKHEAD - MOULDING	LR094479 BULKHEAD - MOULDING 2 Door Convertible, I/P Facia Contrast - Ebony Black, Premium Leather / LH / From: HH199711 / To: JH312808	-	1	Enquire
<045G78	LR098653	BULKHEAD - MOULDING	LR098653 BULKHEAD - MOULDING 2 Door Convertible, I/P Facia Contrast - Ebony Black, Premium Leather / LH / From: JH312809 / To: JH313808	-	1	Enquire
<045G78	LR094474	BULKHEAD - MOULDING	LR094474 BULKHEAD - MOULDING 2 Door Convertible, I/P Facia Contrast - Lunar, Premium Leather / RH / From: HH199711 / To: JH312808	-	1	Enquire
<045G78	LR094475	BULKHEAD - MOULDING	LR094475 BULKHEAD - MOULDING 2 Door Convertible, I/P Facia Contrast - Ebony Black, Premium Leather / RH / From: HH199711 / To: JH312808	-	1	Enquire
<045G78	LR098619	BULKHEAD - MOULDING	LR098619 BULKHEAD - MOULDING 2 Door Convertible, I/P Facia Contrast - Lunar, Premium Leather / RH / From: JH312809 / To: JH313808	-	1	Enquire
<045G78	LR098645	BULKHEAD - MOULDING	LR098645 BULKHEAD - MOULDING 2 Door Convertible, I/P Facia Contrast - Ebony Black, Premium Leather / RH / From: JH312809 / To: JH313808	-	1	Enquire
<202A58	LR074968	ROLL OVER PROTECTION BAR	LR074968 ROLL OVER PROTECTION BAR RH And LH / To: HH184845	-	2	Enquire
<202A58	LR094096	ROLLOVER PROTECTION BAR	LR094096 ROLLOVER PROTECTION BAR RH And LH / From: HH184846	-	2	Enquire
<211A70	LR071208	BULKHEAD - CENTER	LR071208 BULKHEAD - CENTER I/P Facia Contrast - Lunar, PVC/Taurus Door Trim Panel / Centre	-	1	Enquire
<211A70	LR071209	BULKHEAD - CENTER	LR071209 BULKHEAD - CENTER I/P Facia Contrast - Ebony Black, PVC/Taurus Door Trim Panel / Centre	-	1	Enquire
<211A70	LR071210	BULKHEAD - CENTER	LR071210 BULKHEAD - CENTER I/P Facia Contrast - Lunar, Premium Leather / Centre	-	1	Enquire
<211A70	LR071211	BULKHEAD - CENTER	LR071211 BULKHEAD - CENTER I/P Facia Contrast - Ebony Black, Premium Leather / Centre	-	1	Enquire
<600A46	LR071170	COVER - SEAT BELT MOUNTING	LR071170 COVER - SEAT BELT MOUNTING RH / To: HH179605	-	1	Enquire
<600A46	LR071173	COVER - SEAT BELT MOUNTING	LR071173 COVER - SEAT BELT MOUNTING LH / To: HH179605	-	1	Enquire
<600A46	LR092936	COVER - SEAT BELT MOUNTING	LR092936 COVER - SEAT BELT MOUNTING RH / From: HH179606	-	1	Enquire
<600A46	LR092937	COVER - SEAT BELT MOUNTING	LR092937 COVER - SEAT BELT MOUNTING LH / From: HH179606	-	1	Enquire
<03622	LR075171	MOULDING - BULKHEAD SUPPORT	LR075171 MOULDING - BULKHEAD SUPPORT Centre	-	1	Enquire
HB1	LR074901	BOLT AND WASHER - HEX.HEAD	LR074901 BOLT AND WASHER - HEX.HEAD Support	-	8	Enquire
