Back Door/Tailgate Trim Panels (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Back Door/Tailgate Trim Panels (Changsu (China)) ((V) FROMEG000001)

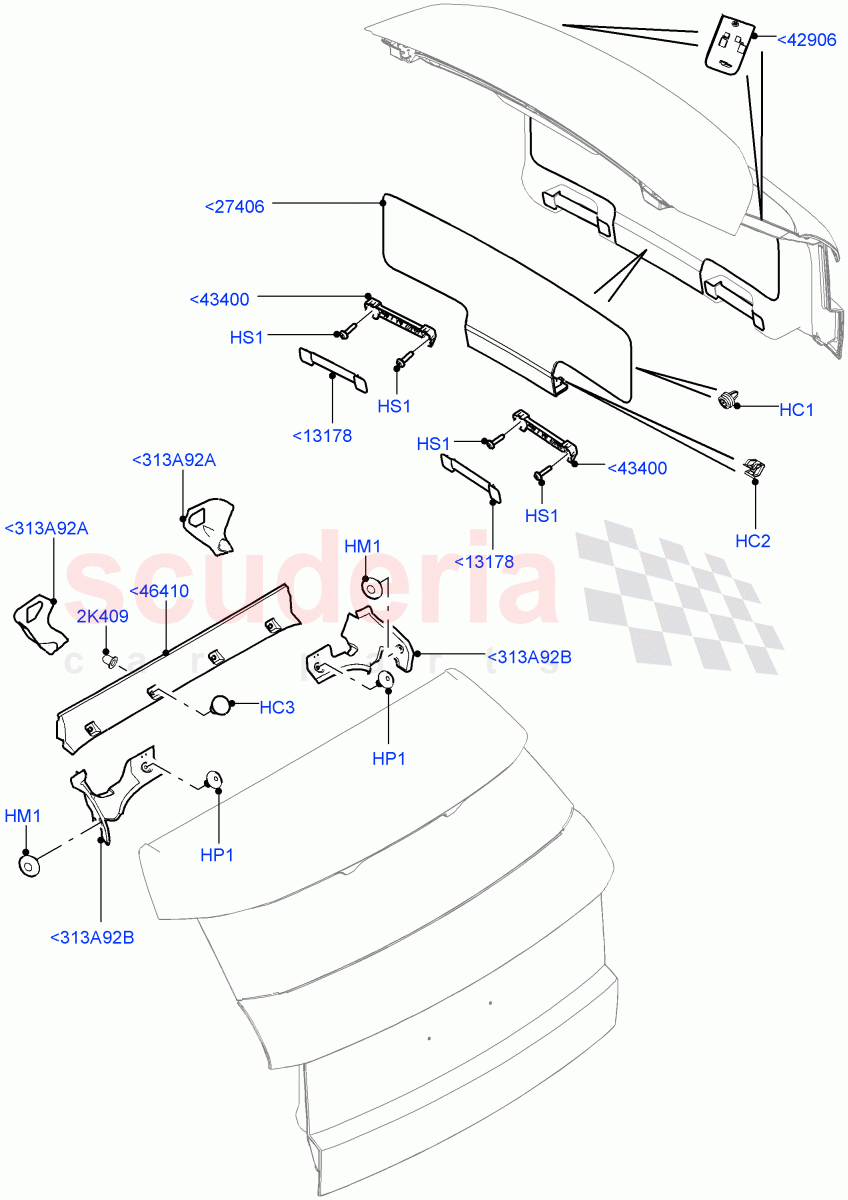

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044894	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BTR2985	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500120	RIVET - BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYB500010PMA	PLUG - THREADED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026430	SCREW - TAILGATE TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGG000020	GROMMET - TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033657	COVER - TAILGATE HANDLE	Enquire	To Order
	LR075113	COVER - TAILGATE HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065695	PANEL - TAILGATE TRIM	Enquire	To Order
	LR072351	PANEL - TAILGATE TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039102	TRIM - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033638	HANDLE - TAILGATE	Enquire	To Order
	LR075109	HANDLE - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039107	COVER - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031686	COVER - HINGE	Enquire	To Order
	LR031687	COVER - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054319	COVER - HINGE	Enquire	To Order
	LR054318	COVER - HINGE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<313A92A	LR031686	COVER - HINGE	LR031686 COVER - HINGE RH / From: EG000001	-	1	Enquire
<313A92A	LR031687	COVER - HINGE	LR031687 COVER - HINGE LH / From: EG000001	-	1	Enquire
<313A92B	LR054319	COVER - HINGE	LR054319 COVER - HINGE RH / From: EG000001	-	1	Enquire
<313A92B	LR054318	COVER - HINGE	LR054318 COVER - HINGE LH / From: EG000001	-	1	Enquire
<13178	LR033657	COVER - TAILGATE HANDLE	LR033657 COVER - TAILGATE HANDLE Ebony Black / From: EG000001 / To: FG105650	-	2	Enquire
<13178	LR075113	COVER - TAILGATE HANDLE	LR075113 COVER - TAILGATE HANDLE Ebony Black / From: FG105651	-	2	Enquire
<27406	LR065695	PANEL - TAILGATE TRIM	LR065695 PANEL - TAILGATE TRIM Ebony Black / From: EG000001 / To: FG101847	-	1	Enquire
<27406	LR072351	PANEL - TAILGATE TRIM	LR072351 PANEL - TAILGATE TRIM Ebony Black / From: FG101848	-	1	Enquire
<42906	LR039102	TRIM - TAILGATE	LR039102 TRIM - TAILGATE Blanking / From: EG000001	-	2	Enquire
<43400	LR033638	HANDLE - TAILGATE	LR033638 HANDLE - TAILGATE Ebony Black / From: EG000001 / To: FG110930	-	2	Enquire
<43400	LR075109	HANDLE - TAILGATE	LR075109 HANDLE - TAILGATE Ebony Black / From: FG110931	-	2	Enquire
<46410	LR039107	COVER - HINGE	LR039107 COVER - HINGE Upper Tailgate / From: EG000001	-	1	Enquire
HC1	LR013135	CLIP - TRIM	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2, Tailgate / From: EG000001	-	2	Enquire
HC2	LR044894	CLIP	LR044894 CLIP 0.8 - 2.5 / From: EG000001	-	2	Enquire
HC3	BTR2985	CLIP	BTR2985 CLIP 6.5 x 6, Push Pin / From: EG000001	-	4	Enquire
HM1	RYQ500120	RIVET - BLIND	RYQ500120 RIVET - BLIND 8.0 x 19, Rivet / From: EG000001	-	2	Enquire
HP1	HYB500010PMA	PLUG - THREADED	HYB500010PMA PLUG - THREADED	-	1	Enquire
HS1	LR026430	SCREW - TAILGATE TRIM PANEL	LR026430 SCREW - TAILGATE TRIM PANEL M6 x 25MM / From: EG000001	-	4	Enquire
2K409	SGG000020	GROMMET - TRIM PANEL	SGG000020 GROMMET - TRIM PANEL Panel - Tailgate Trim / From: EG000001	-	4	Enquire
